Name: WNAI-E800S
Brand: Winmate
SKU: 80315000
Price: 127473.34 EUR
Availability: PreOrder

Home

Catalog

Industrie PCs

Embedded Edge PCs, Industrie Box PCs und Mini-PCs

Embedded PCs mit Erweiterungsslots

WNAI-E800S

Winmate

ART. NR.:: 80315000

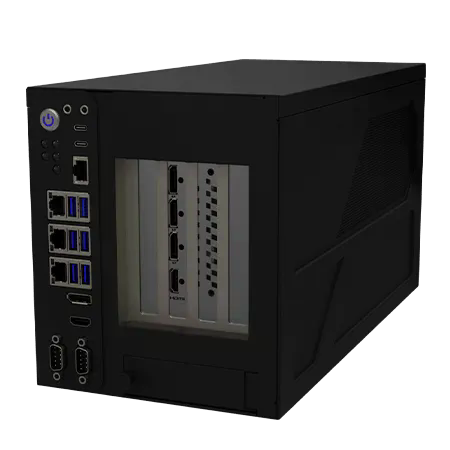

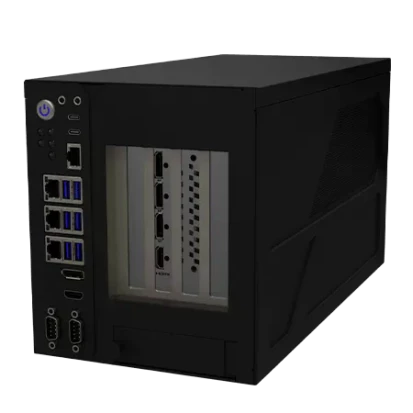

Industrial Edge AI System, Intel Core i7-14700T CPU, R680E Chipset, Up to 96GB DDR5 RAM, 128GB NVME SSD, DP, HDMI, 3x2.5GbE LAN, 6xUSB 3.2, 2xCOM, 1xM.2 Key-B, 1xM.2 Key-E, 1xPCIe x16 (GPU Opt.), 1xPCIe x8, 2xPCIe x8 (4 lanes), Audio, 8-48VDC-in

Preis auf Anfrage

Aufbau

Gehäuse

Metallgehäuse

Einbaumöglichkeit

Desktop

Typ

Aktiver Lüfter

CPU

CPU Generation/Familie

Raptor Lake

Installierter Prozessor

Intel Core i7-14700T

Socket

LGA1700

CPU-Support-Typ

Core i7, Core i9

Maximale CPU-Frequenz

5.2 GHz

Chipsatz

Intel R680E

Speicher

Formfaktor

DDR5

Socket Typ

2xSODIMM

ECC

Maximum Speicher

96 GB

Bauweise

herausnehmbar

Grafik

Grafikcontroller

integriert im Prozessor

Schnitstellen

DisplayPort, HDMI

Ethernet

Ethernet gesamt

2,5 Gbit/s

Wi-Fi

WLAN IEEE-Norm

Yes (Optional)

Schnittstellen Seriell / Parallel

COM gesamt

RS-232/422/485

USB gesamt

USB v3.x

Schnittstelle

SATA 3

M.2

Laufwerksschächte

Gesamtanzahl

2.5" intern

Einbauschacht

Massenspeicher Typ

SSD

Massenspeicher-Formfaktor

M.2

Massenspeicher-Schnittstelle

PCIe x4

Massenspeicher 1. Kapazität

128 GB

Steckplätze

Gesamtanzahl

PCI Express x16

PCI Express x8

M.2

M.2 Formfaktor

2280 M, 2230 E, 3052 B, 3042 B

Antennen Eigenschaften

Mobilfunk

4G (Optional)

Status LEDs / Schalter

LED

Power LED, WLAN LED, LAN LED

Schalter

On/Off

Schnittstellen

2xDB9, HDMI, 6xUSB, Mic In, Line Out, Display port, 2xDC input (terminal block)

Stromversorgung

Eingangsspannung DC

8..48 V

Redundanter Stromeingang

Netzteil

Unterstützte Stromversorgung

External power adapter AC/DC

Software

Betriebssystemkompatibilität

Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise

Maße und Gewicht

Breite

360 mm

Höhe

170 mm

Tiefe

196 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-20..60 °C

Luftfeuchtigkeit

10-90%

Normen und Zertifikate

Zertifizierungen

CE, FCC

Maße

Bruttogewicht

9.4 kg

Nettogewicht

7.85 kg

Dokumente

WNAI-E800S Datasheet
