Name: AIP-FR68-A2--M
Brand: AETINA
SKU: 80240000
Price: Preis auf Anfrage
Availability: PreOrder

Home

Catalog

Industrie PCs

Embedded Edge PCs, Industrie Box PCs und Mini-PCs

Embedded PCs mit Erweiterungsslots

AIP-FR68-A2--M

AETINA

ART. NR.:: 80240000

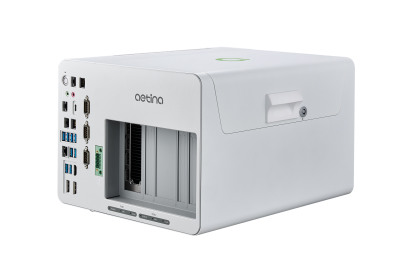

Industrial AI Workstation, Intel 14/13/12th Gen Core i9/i7/i5 CPU, Up to 192GB DDR5 RAM, HDMI/2xDP, 1x10GbE LAN, 3x2.5GbE LAN, 8xUSB 3.2, 1xUSB-C, 3xCOM, 4x2.5" Bay, 2xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 2xPCIe x16, 1xPCIe x4, 1xPCIe x1, 24-48VDC-in

Preis auf Anfrage

Aufbau

Gehäuse

Metallgehäuse

Einbaumöglichkeit

Wall, Desktop

Typ

Aktiver Lüfter

CPU

CPU Generation/Familie

Alder Lake, Raptor Lake

Socket

LGA1700

CPU-Support-Typ

Core i5, Core i7, Core i9

Speicher

Formfaktor

DDR5

Maximum Speicher

192 GB

Bauweise

herausnehmbar

Grafik

Grafikcontroller

integriert im Prozessor

Schnitstellen

HDMI, 2xDisplayPort

Ethernet

Controller Typ

Intel i226-LM, Marvell AQC113

2,5 Gbit/s

10 Gbit/s

Schnittstellen Seriell / Parallel

COM gesamt

RS-232/422/485

USB gesamt

USB v3.x

Schnittstelle

SATA 3

M.2

Laufwerksschächte

Gesamtanzahl

2.5" intern

Steckplätze

Gesamtanzahl

PCI Express x16

M.2

M.2 Formfaktor

2280 M, 2230 E, 3052 B

SIM-Karten Steckplätze

Yes, 1, Nano SIM

Antennen Eigenschaften

Mobilfunk

4G (Optional)

Status LEDs / Schalter

LED

1xLED Lüfterstatus, 2xLED Temperaturstatus, Power LED

Schalter

On/Off

Schnittstellen

2xDB9, HDMI, 4xRJ45 Ethernet, 8xUSB, Mic In, Line Out, SIM Card Slot, 2xDisplayPort, DC input (terminal block), RJ45 (COM), USB type C

Stromversorgung

Eingangsspannung DC

24 V

Netzteil

Unterstützte Stromversorgung

External power adapter AC/DC

Software

Betriebssystemkompatibilität

Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise, Ubuntu 22.04, Ubuntu 24.04

Maße und Gewicht

Breite

279 mm

Höhe

206 mm

Tiefe

340 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..50 °C

Vibration

1Grms ,IEC60068-2-64,Random,5 ~ 500 Hz ,1Hr / Axis (operation, w/o PCIe Card)

Schock

10G, IEC 60068-2-27, Half Sine, 11 msDuration (operation, w/o PCIe Card)

Normen und Zertifikate

Zertifizierungen

CE, FCC Class A, rohs

Internetsicherheit

LVD

Vibration und Schock

IEC 60068-2-27, IEC 60068-2-64

Maße

Bruttogewicht

12.5 kg

Nettogewicht

11 kg

Dokumente

AIP-FR68-A2-Datasheet.pdf
