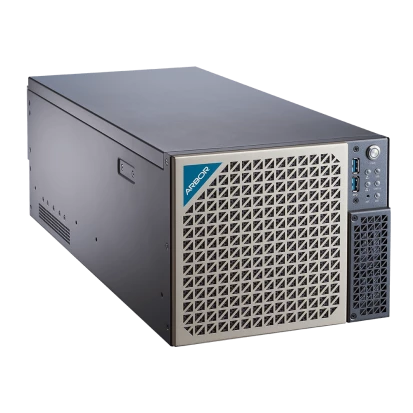

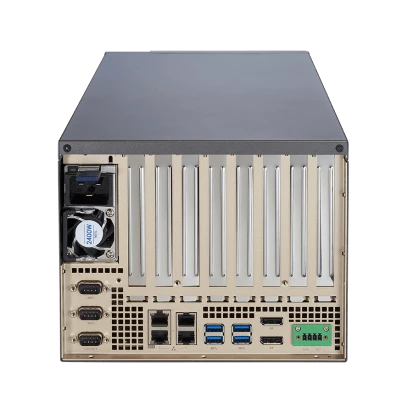

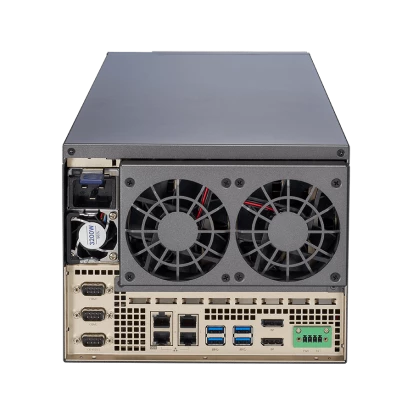

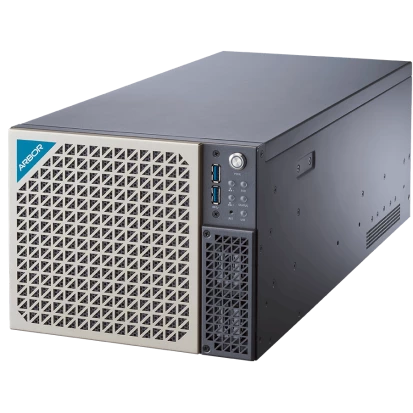

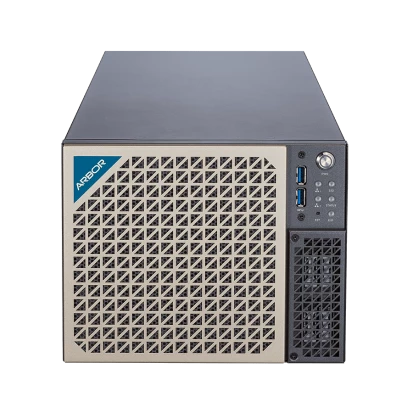

EdgeX-6000-E838001

Arbor
ART. NR.:: 80217700
Embedded Edge AI HPC, SP6 Socket, AMD EPYC Embedded 8324P CPU, Up to 576GB DDR5 ECC RAM, 4xNVIDIA Quadro A1000 MXM GPU, 2xDP, 2x10GbE LAN, 2x2.5GbE LAN, 6xUSB 3.2, 3xCOM, 4xE1.S Slots, 2x2.5" Bay Opt., 1xM.2 Key-M, 2400W PSU
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
Desktop, Einbau
Typ
Mehrere Lüfter
CPU
CPU Generation/Familie
Zen 4c Siena
Installierter Prozessor
AMD EPYC Embedded 8324P
Socket
LGA4844 (SP6)
CPU-Support-Typ
EPYC
Maximale CPU-Frequenz
3 GHz
Speicher
Formfaktor
DDR5
Socket Typ
6xDIMM
ECC
Yes
Maximum Speicher
576 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
Nvidia Quadro A1000 MXM
Schnitstellen
2xDisplayPort
Ethernet
Ethernet gesamt
4
2,5 Gbit/s
2
10 Gbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
3
RS-232/422/485
3
USB gesamt
6
USB v3.x
6
Schnittstelle
SATA 3
2
M.2
1
Laufwerksschächte
Gesamtanzahl
2
2.5" intern
2
Steckplätze
Gesamtanzahl
9
PCI Express x16
8
M.2
1
M.2 Formfaktor
2280 M
Status LEDs / Schalter
LED
Power LED, LAN LED, SSD LED
Schalter
On/Off, 1xReset
Schnittstellen
Schnittstellen
3xDB9, 4xRJ45 Ethernet, 6xUSB, AC Input, 2xDisplayPort
Stromversorgung
Eingangsspannung AC
100..240 V
Netzteil
Art der Spannungsversorgung
Redundant
Ausgangsleistung
2400 W
Software
Betriebssystemkompatibilität
Windows Server 2022, Ubuntu 24.04
Maße und Gewicht
Breite
216 mm
Höhe
170 mm
Tiefe
495 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..65 °C
Luftfeuchtigkeit
10-95%
Normen und Zertifikate
Zertifizierungen
CE/FCC, CB
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
12 kg
Nettogewicht
10 kg
