Name: EdgeX-6000-E808002
Brand: Arbor
SKU: 80217600
Price: 112835.09 EUR
Availability: PreOrder

Home

Catalog

Industrie PCs

Embedded Edge PCs, Industrie Box PCs und Mini-PCs

Embedded PCs mit Erweiterungsslots

EdgeX-6000-E808002

Arbor

ART. NR.:: 80217600

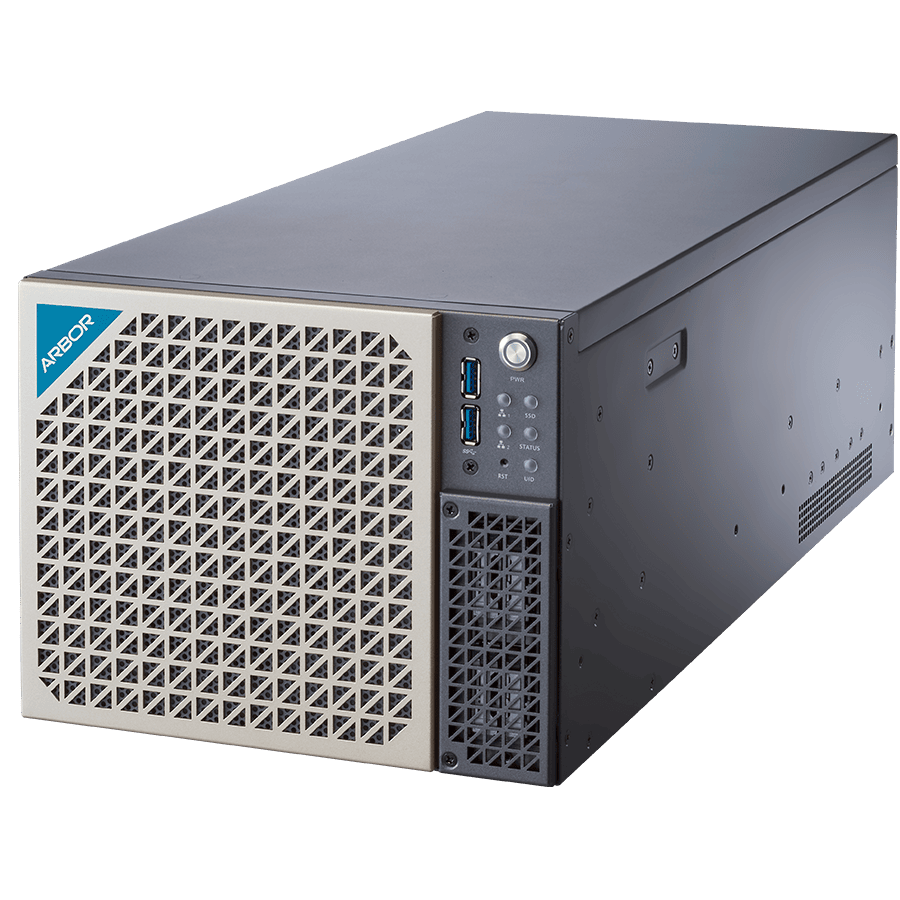

Embedded Edge AI HPC, SP6 Socket, AMD EPYC Embedded 8024P CPU, Up to 576GB DDR5 ECC RAM, 2xDP, 2x10GbE LAN, 2x2.5GbE LAN, 6xUSB 3.2, 3xCOM, 4xE1.S Slots, 2x2.5" Bay Opt., 1xM.2 Key-M, 4/8xPCIe x16 Gen5 (Dual/Single slot GPU), 800W PSU

Preis auf Anfrage

Aufbau

Gehäuse

Metallgehäuse

Einbaumöglichkeit

Desktop, Einbau

Typ

Mehrere Lüfter

CPU

CPU Generation/Familie

Zen 4c Siena

Installierter Prozessor

AMD EPYC Embedded 8024P

Socket

LGA4844 (SP6)

CPU-Support-Typ

EPYC

Maximale CPU-Frequenz

3 GHz

Speicher

Formfaktor

DDR5

Socket Typ

6xDIMM

ECC

Yes

Maximum Speicher

576 GB

Bauweise

herausnehmbar

Grafik

Schnitstellen

2xDisplayPort

Ethernet

Ethernet gesamt

2,5 Gbit/s

10 Gbit/s

Schnittstellen Seriell / Parallel

COM gesamt

RS-232/422/485

USB gesamt

USB v3.x

Schnittstelle

SATA 3

M.2

Laufwerksschächte

Gesamtanzahl

2.5" intern

Steckplätze

Gesamtanzahl

PCI Express x16

M.2

M.2 Formfaktor

2280 M

Status LEDs / Schalter

LED

Power LED, LAN LED, SSD LED

Schalter

On/Off, 1xReset

Schnittstellen

3xDB9, 4xRJ45 Ethernet, 6xUSB, AC Input, 2xDisplayPort

Stromversorgung

Eingangsspannung AC

100..240 V

Netzteil

Art der Spannungsversorgung

Redundant

Ausgangsleistung

800 W

Software

Betriebssystemkompatibilität

Windows Server 2022, Ubuntu 24.04

Maße und Gewicht

Breite

216 mm

Höhe

170 mm

Tiefe

495 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..65 °C

Luftfeuchtigkeit

10-95%

Normen und Zertifikate

Zertifizierungen

CE/FCC, CB

Vibration und Schock

IEC 60068-2-6, IEC 60068-2-27

Maße

Bruttogewicht

12 kg

Nettogewicht

10 kg

Dokumente

EdgeX-6000-Datasheet.pdf
