Name: FPC-9108-L2U4-G3
Brand: Arbor
SKU: 80061000
Price: 112577.12 EUR
Availability: PreOrder

Home

Catalog

Industrie PCs

Embedded Edge PCs, Industrie Box PCs und Mini-PCs

Embedded PCs mit Erweiterungsslots

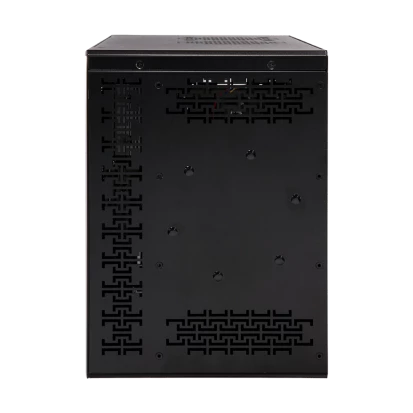

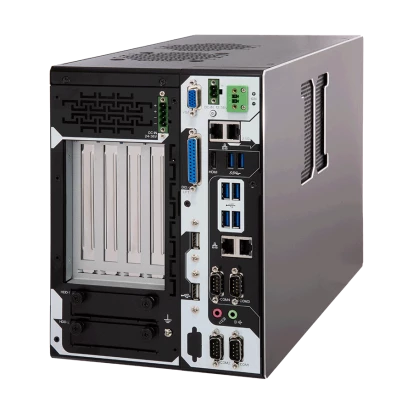

FPC-9108-L2U4-G3

Arbor

ART. NR.:: 80061000

Embedded Edge AI PC, Intel 10th Gen Core i3/i5/i7/i9 CPU, Up to 64GB DDR4 RAM, HDMI/VGA, 1x2.5GbE LAN, 3xGbE LAN, 6xUSB 3.2, 2xUSB 2.0, 4xCOM, DIO, 2x2.5" Bay, 1xMiniPCIe, 1xM.2 Key-B, 1xM.2 Key-E, 1xPCIe x16, 3xPCI, 12-36VDC-in (24-36V secondary)

Preis auf Anfrage

Aufbau

Gehäuse

Metallgehäuse

Einbaumöglichkeit

Wall, Desktop

Typ

Lüfterlos

CPU

CPU Generation/Familie

Comet Lake

Socket

LGA1200

CPU-Support-Typ

Core i3, Core i5, Core i7, Core i9, Xeon

Chipsatz

Intel W480E

Speicher

Formfaktor

DDR4

Socket Typ

2xSODIMM

ECC

Yes

Maximum Speicher

64 GB

Bauweise

herausnehmbar

Grafik

Grafikcontroller

integriert im Prozessor

Schnitstellen

HDMI, VGA

Ethernet

Controller Typ

Intel WGI219LM 10/100/1000 Mbps, Intel WGI225LM

Ethernet gesamt

10/100/1000 Mbit/s

2,5 Gbit/s

Schnittstellen Seriell / Parallel

COM gesamt

RS-232

RS-232/422/485

USB gesamt

USB 2.0

USB v3.x

Digital Eingang / Ausgang

Gesamtanzahl

GPIO

8xDigital In / 8xDigital Out

Schnittstelle

SATA 3

M.2

Laufwerksschächte

Gesamtanzahl

2.5" extern

Steckplätze

Gesamtanzahl

PCI

PCI Express x16

M.2

M.2 Formfaktor

2230 E, 3052 B, 2280 B, 2242 B

Mini-PCIe/Mini Card

Zusätzliche Funktionen

Watchdog-Timer-Typ

Software

Status LEDs / Schalter

Schalter

On/Off

Schnittstellen

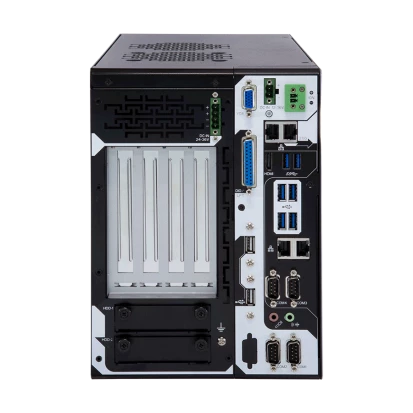

4xDB9, DB15 VGA, HDMI, 4xRJ45 Ethernet, 8xUSB, Mic In, Line Out, 1xDB25 DIO, 2xDC input (terminal block)

Stromversorgung

Eingangsspannung DC

24..36 V

Backup-Eingang DC-Versorgungsspannung

12~36 V

Netzteil

Unterstützte Stromversorgung

External power adapter AC/DC

Software

Betriebssystemkompatibilität

Linux OS, Windows 10 IoT Enterprise, Windows 11 IoT Enterprise

Maße und Gewicht

Breite

181 mm

Höhe

250 mm

Tiefe

380 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-20..50 °C

Luftfeuchtigkeit

10-95%

Normen und Zertifikate

Zertifizierungen

CE, FCC Class A

Maße

Bruttogewicht

7.4 kg

Nettogewicht

6.7 kg

Dokumente

FPC-9108-L2U4-G3-Datasheet.pdf FPC-9108-L2U4-G3-User-Manual.pdf
