Name: AIEdge-X310
Brand: NEXCOM
SKU: 80077200
Price: 994.84 EUR
Availability: PreOrder

Home

Catalog

Industrie PCs

Embedded Edge PCs, Industrie Box PCs und Mini-PCs

Embedded PCs mit Erweiterungsslots

AIEdge-X310

NEXCOM

ART. NR.:: 80077200

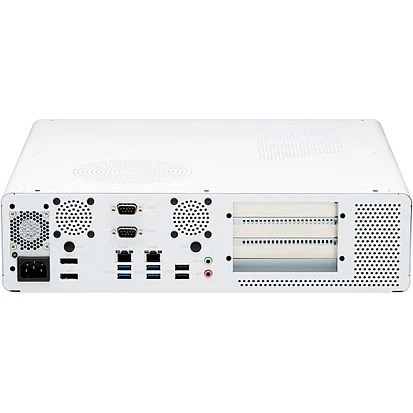

Industrial Edge AI System AIEdge-X310, Intel 14/13/12th Gen Core i3/i5/i7/i9 CPU, H610E Chipset, Up to 64GB DDR5 RAM, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xUSB 3.2, 2xUSB 2.0, 2xCOM, Audio, 2xSATA, 1x2.5" Bay, 1xM.2 Key-M, 1xPCIe x16 Gen5, 850W ATX PSU

Preis auf Anfrage

Aufbau

Gehäuse

Metallgehäuse

Einbaumöglichkeit

Desktop

Typ

Mehrere Lüfter

CPU

CPU Generation/Familie

Raptor Lake

Socket

LGA1700

CPU-Support-Typ

Core i3, Core i5, Core i7, Core i9

Chipsatz

Intel H610E

Speicher

Formfaktor

DDR5

Socket Typ

2xSODIMM

ECC

Maximum Speicher

64 GB

Bauweise

herausnehmbar

Grafik

Grafikcontroller

integriert im Prozessor

Schnitstellen

2xDisplayPort

Ethernet

Controller Typ

Intel i219-LM, Intel i226-LM

Ethernet gesamt

10/100/1000 Mbit/s

2,5 Gbit/s

Schnittstellen Seriell / Parallel

COM gesamt

RS-232

RS-232/422/485

USB gesamt

USB 2.0

USB v3.x

Digital Eingang / Ausgang

GPIO

4xDigital In / 4xDigital Out

Schnittstelle

SATA 3

M.2

Laufwerksschächte

Gesamtanzahl

2.5" intern

Steckplätze

Gesamtanzahl

PCI Express x16

M.2

M.2 Formfaktor

2280 M

Status LEDs / Schalter

LED

Power LED

Schalter

On/Off

Schnittstellen

2xDB9, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, AC Input, 2xDisplayPort

Netzteil

Art der Spannungsversorgung

ATX PS/2

Ausgangsleistung

850 W

Eingangsspannung AC

100..240 V

Software

Betriebssystemkompatibilität

Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise

Maße und Gewicht

Breite

390 mm

Höhe

98.5 mm

Tiefe

380 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..451 °C

Luftfeuchtigkeit

10-90%

Normen und Zertifikate

Zertifizierungen

CE, FCC Class A

EMS

EN 55024, EN 55032

Vibration und Schock

IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64

Maße

Bruttogewicht

7.3 kg

Nettogewicht

6.7 kg

Dokumente

AIEdge-X310-Datasheet.pdf
