Name: AIEdge-X300
Brand: NEXCOM
SKU: 57185900
Price: 643.48 EUR
Availability: PreOrder

Home

Catalog

Industrie PCs

Embedded Edge PCs, Industrie Box PCs und Mini-PCs

Embedded PCs mit Erweiterungsslots

AIEdge-X300

NEXCOM

ART. NR.:: 57185900

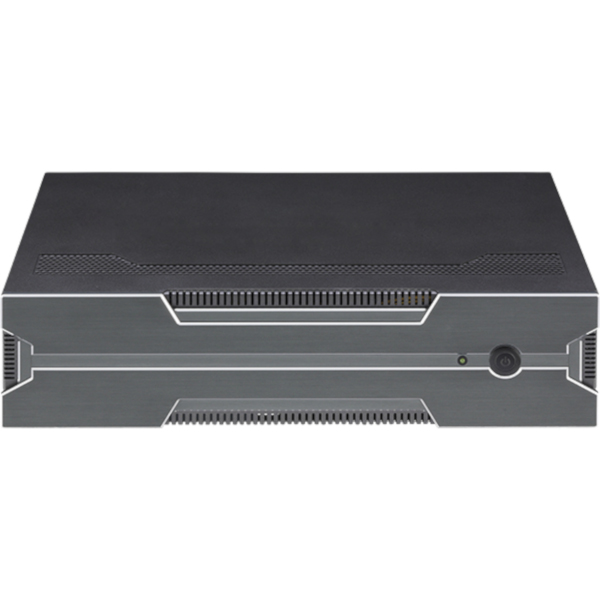

Industrial Edge AI System AIEdge-X300, LGA1151 Socket, Intel 9th/8th Gen Core i3/i5/i7/i9 CPU, Q370 Chipset, Up to 32GB DDR4 RAM, 3xHDMI, 2xGbE LAN, 4xUSB 3.0, 2xCOM, Audio, 1x3.5/2.5" Bay, 1xM.2 Key-M, 1xM.2 Key-E, 1xPCIe x16 Gen3, 500W ATX PSU

Preis auf Anfrage

Aufbau

Gehäuse

Metallgehäuse

Einbaumöglichkeit

Desktop

Typ

Lüfterlos

CPU

CPU Generation/Familie

Coffee Lake, Coffee Lake Refresh

Socket

LGA1151

CPU-Support-Typ

Core i3, Core i5, Core i7, Core i9

Chipsatz

Intel Q370

Speicher

Formfaktor

DDR4

Socket Typ

2xSODIMM

ECC

Maximum Speicher

32 GB

Bauweise

herausnehmbar

Grafik

Grafikcontroller

integriert im Prozessor

Ethernet

Controller Typ

Intel i211-AT 10/100/1000 Mbps, Intel i219-LM

Ethernet gesamt

10/100/1000 Mbit/s

Wi-Fi

WLAN IEEE-Norm

Yes

Schnittstellen Seriell / Parallel

COM gesamt

RS-232

RS-232/422/485

USB gesamt

USB 2.0

USB v3.x

Digital Eingang / Ausgang

GPIO

4xDigital In / 4xDigital Out

Schnittstelle

mSATA

Laufwerksschächte

2.5" intern

Steckplätze

Gesamtanzahl

PCI Express x16

M.2

Schnittstellen

2xRJ45 Ethernet, 4xUSB, Line Out, 2xDB9 Male, 3xHDMI

Netzteil

Art der Spannungsversorgung

ATX

Ausgangsleistung

500 W

Software

Betriebssystemkompatibilität

Linux OS, Windows 10

Maße und Gewicht

Breite

360 mm

Höhe

85 mm

Tiefe

250 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..45 °C

Luftfeuchtigkeit

10-90%

Normen und Zertifikate

Zertifizierungen

CE, FCC Class A

EMI

FCC Part 15

EMS

EN 55024, EN 55032

Internetsicherheit

LVD

Maße

Bruttogewicht

1 kg

Dokumente

AIEdge-X300-Datasheet.pdf AIEdge-X300-User-Manual.pdf
