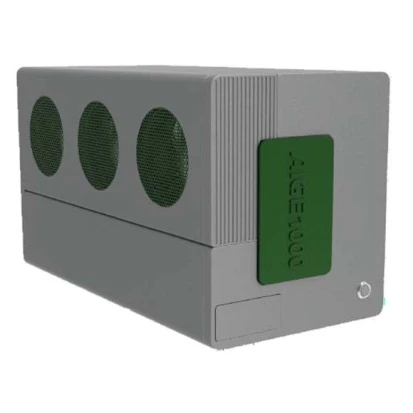

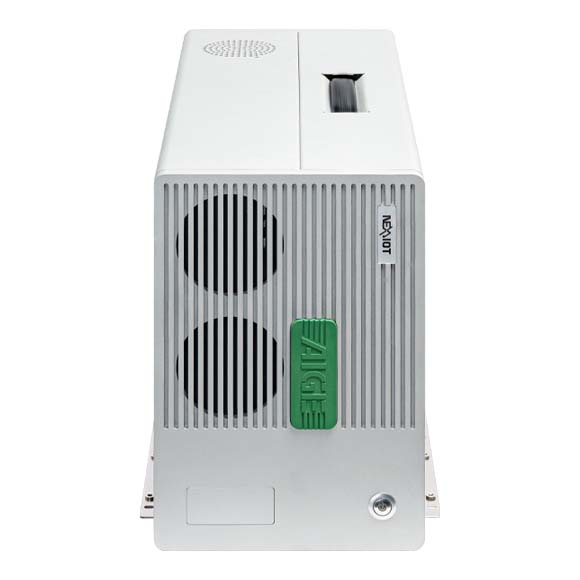

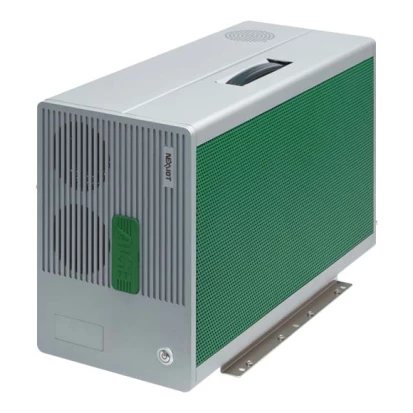

AIGE-1000-C10

NEXCOM
ART. NR.:: 80048000
Embedded Edge AI Server, Intel 14/13/12th Gen Core i9/i7/i5/i3 CPU, Q670E Chipset, Up to 64GB LPDDR5 RAM, 2xHDMI, 2xDP, 2x2.5GbE LAN, 8xUSB 3.2, 2x2.5" Bay, 1xMiniPCIe, 1xM.2 2280 Key-M, 1xM.2 3042/3052 Key-B, SIM Slot, 1xPCIe x16 500/850W, AC-in
Preis auf Anfrage
Verfügbar auf Bestellung
Verfügbar auf Bestellung
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
Desktop, Einbau
Typ
Aktiver Lüfter
CPU
CPU Generation/Familie
Alder Lake, Raptor Lake
Socket
LGA1700
CPU-Support-Typ
Core i3, Core i5, Core i7, Core i9
Chipsatz
Chipsatz
Intel Q670E
Speicher
Formfaktor
DDR5
Socket Typ
2xSODIMM
ECC
No
Maximum Speicher
64 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Schnitstellen
2xHDMI, 2xDisplayPort
Ethernet
Controller Typ
Intel i226-IT
Ethernet gesamt
2
2,5 Gbit/s
2
Schnittstellen Seriell / Parallel
RS-232/422/485
2
USB gesamt
8
USB v3.x
8
Schnittstelle
SATA 3
2
RAID Levels
0, 1
M.2
1
mSATA
1
Laufwerksschächte
Gesamtanzahl
2
2.5" intern
2
Steckplätze
Gesamtanzahl
4
PCI Express x16
1
M.2
2
M.2 Formfaktor
2280 M, 3052 B, 3042 B, 2242 B
Mini-PCIe/Mini Card
1
SIM-Karten Steckplätze
Yes, 1, Nano SIM
Status LEDs / Schalter
LED
COM-ports LED
Schalter
On/Off
Schnittstellen
Schnittstellen
2xHDMI, 2xRJ45 Ethernet, 8xUSB, AC Input, 2xDisplayPort
Systemleistung
Eingangsspannung AC
100..240 V
Software
Betriebssystemkompatibilität
Linux OS, Windows 10, Windows 11
Betriebsbedingungen
Maximale Betriebstemperatur
-5..55 °C
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A, EN61000-6-2, EN61000-6-4
Maße
Bruttogewicht
3.8 kg
Nettogewicht
3.2 kg
