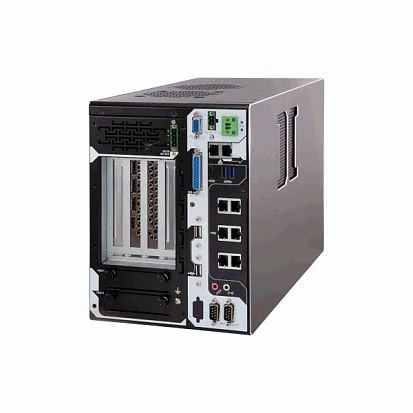

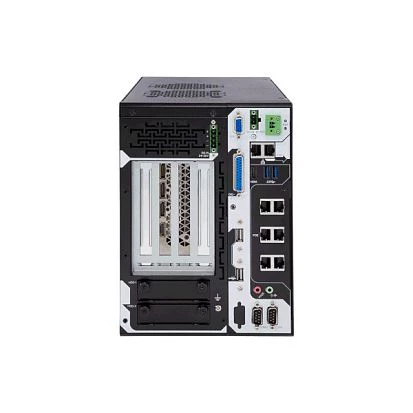

Name: FPC-9108-P6-G3
Brand: Arbor
SKU: 57847900
Price: 1388.57 EUR
Availability: PreOrder

Home

Catalog

Industrie PCs

Embedded Edge PCs, Industrie Box PCs und Mini-PCs

Embedded PCs mit Erweiterungsslots

FPC-9108-P6-G3

Arbor

ART. NR.:: 57847900

Embedded Edge AI PC, Intel 10th Gen Core i3/i5/i7/i9 CPU, W480E, Up to 64GB DDR4 RAM, HDMI/VGA, 2x2.5/1GbE LAN, 6xGbE PoE LAN, 2xUSB 3.2, 2xUSB 2.0, 2xCOM, DIO, MiniPCIe, 2xM.2, 2xSIM, 2x2.5" Drive Bay, 1xPCIe x16, 3xPCI, 12-36VDC-In, -20..50C, R1.2

Preis auf Anfrage

External Power Adapter

Preis exkl. MwSt.

Nicht installiert

180W AC/DC Adapter kit, 19VDC

Preis auf Anfrage

Wall Mount Kit

Nicht installiert

WMK-7000

Preis auf Anfrage

Add On Card 1

Nicht installiert

WiFi-IN2550

Preis auf Anfrage

Accessories

Nicht installiert

ANT-D11

Preis auf Anfrage

Aufbau

Gehäuse

Metallgehäuse

Einbaumöglichkeit

Wall, Desktop, Einbau

Typ

Aktiver Lüfter

CPU

CPU Generation/Familie

Comet Lake

Socket

LGA1200

CPU-Support-Typ

Core i3, Core i5, Core i7, Core i9

Chipsatz

Intel W480E

Speicher

Formfaktor

DDR4

Socket Typ

2xSODIMM

ECC

Yes

Maximum Speicher

64 GB

Bauweise

herausnehmbar

Grafik

Grafikcontroller

integriert im Prozessor, Intel UHD Graphics

Schnitstellen

HDMI, VGA

Ethernet

Controller Typ

Intel WGI219LM 10/100/1000 Mbps, Intel WGI225LM

Ethernet gesamt

10/100/1000 Mbit/s

2,5 Gbit/s

PoE 10/100/1000 Mbit/s

Schnittstellen Seriell / Parallel

COM gesamt

RS-232/422/485

USB gesamt

USB 2.0

USB v3.x

Digital Eingang / Ausgang

Gesamtanzahl

Schnittstelle

SATA 3

M.2

Laufwerksschächte

Gesamtanzahl

2.5" extern

Steckplätze

Gesamtanzahl

PCI

PCI Express x16

M.2

M.2 Formfaktor

2230 E, 3052 B

Mini-PCIe/Mini Card

SIM-Karten Steckplätze

Yes, 2

Antennen Eigenschaften

Mobilfunk

4G (Optional)

Zusätzliche Funktionen

GPS

Optional

Watchdog-Timer-Typ

Software

Status LEDs / Schalter

LED

Power LED

Schalter

On/Off

Schnittstellen

2xDB9, DB15 VGA, HDMI, 4xUSB, Mic In, Line Out, DC input (terminal block), 1xDB25 DIO, 8xRJ45 Ethernet

Stromversorgung

Eingangsspannung DC

12..36 V

Backup-Eingang DC-Versorgungsspannung

18~36 V

Netzteil

Unterstützte Stromversorgung

External power adapter AC/DC

Software

Betriebssystemkompatibilität

Windows 10 IoT Enterprise, Linux kernel 4.x

Maße und Gewicht

Breite

181 mm

Höhe

380 mm

Tiefe

250 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-20..50 °C

Luftfeuchtigkeit

10-95%

Vibration

Comply with MIL-STD-810G, Method 514.6, Category 4 w/ SSD

Schock

Comply with MIL-STD-810G, Method 516.6,Table 516.6-II, 20G

Normen und Zertifikate

Zertifizierungen

CE, FCC Class A

Maße

Bruttogewicht

7.4 kg

Nettogewicht

6.7 kg

Dokumente

FPC-9108-P6-G3-User-Manual.pdf FPC-9108-P6-G3-Datasheet.pdf
