NISE-50-GCIoT

NEXCOM
ART. NR.:: 56982000

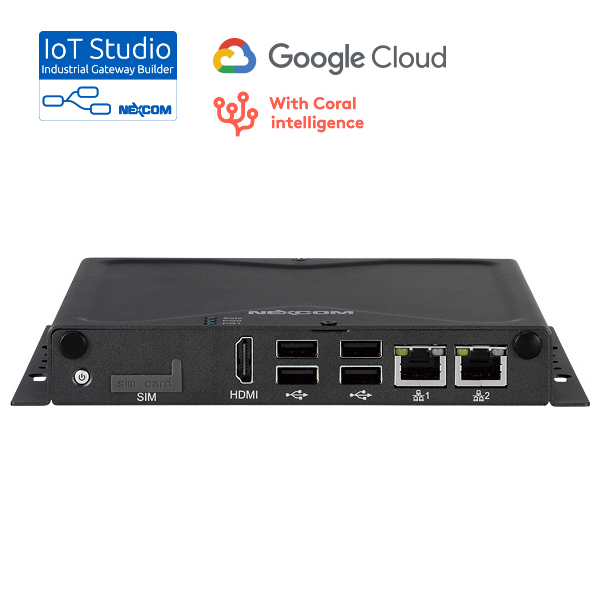

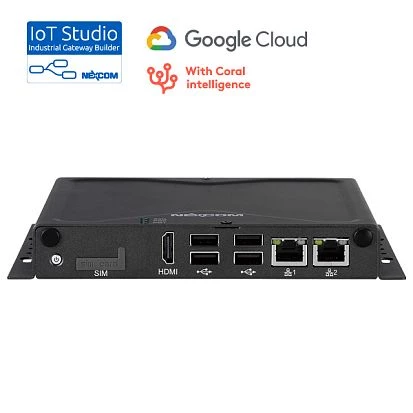

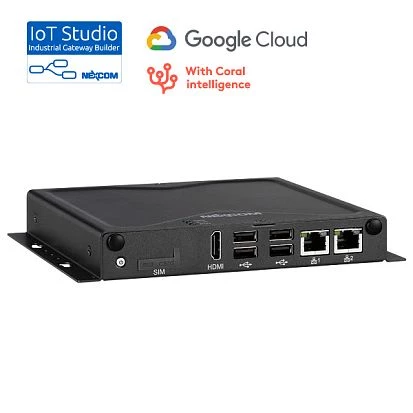

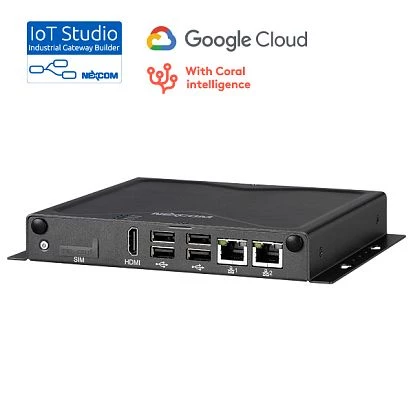

Fanless Embedded System, Intel Atom E3826 1.46GHz CPU, 2GB DDR3L RAM, 16GB mSATA SSD, HDMI, 2xGbE LAN, 3xCOM, 4xUSB 2.0, 2xMiniPCIe, 1xSIM Slot, Audio, 24VDC-in w/o Power Adapter
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Metallgehäuse mit Aluminium-Kühlkörper
Einbaumöglichkeit
Wall, Desktop, Einbau
Typ
Lüfterlos
CPU
CPU Generation/Familie
Bay Trail
Installierter Prozessor
Intel Atom E3826
Socket
FCBGA1170
Maximale CPU-Frequenz
1.46 GHz
Chipsatz
Chipsatz
Intel Atom SoC
Speicher
Formfaktor
DDR3L
Socket Typ
Verlötet
ECC
No
Standard Onboard Speicher
2 GB
Bauweise
Onboard fixiert
Grafik
Grafikcontroller
integriert im Prozessor
Schnitstellen
HDMI
Ethernet
Controller Typ
Intel i210-AT
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
3
RS-232
2
RS-422/485
1
USB gesamt
4
USB 2.0
4
Schnittstelle
mSATA
1
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher-Formfaktor
mSATA
Massenspeicher 1. Kapazität
16 GB
Steckplätze
Gesamtanzahl
3
Mini-PCIe/Mini Card
3
SIM-Karten Steckplätze
Yes, 1
Status LEDs / Schalter
Schalter
On/Off
Schnittstellen
Schnittstellen

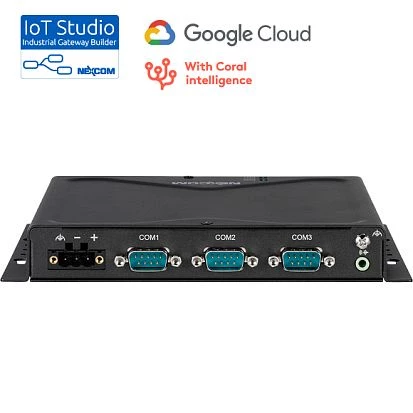

3xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, SIM Card Slot, DC input (terminal block)
Stromversorgung
Eingangsspannung DC
24..24 V
Netzteil
Unterstützte Stromversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Ubuntu, Windows 10 IoT Enterprise
Maße und Gewicht
Breite
162 mm
Höhe
26 mm
Tiefe
150 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-10..60 °C
Luftfeuchtigkeit
10-95%
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Internetsicherheit
UL/cUL
Maße
Bruttogewicht
1.8 kg
Nettogewicht
1.3 kg

Dokumente
NISE-50-GCIoT-Datasheet-03052019.pdf NISE-50-GCIoT-User-manual.pdf
