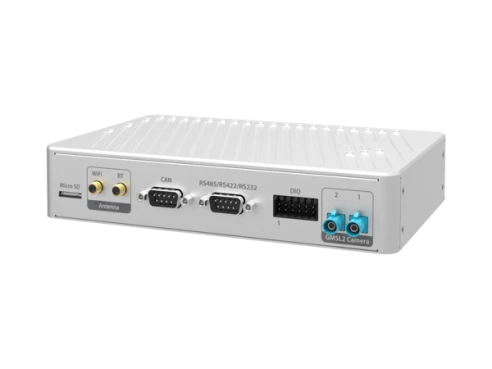

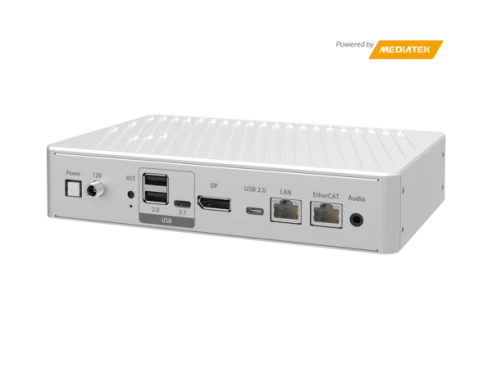

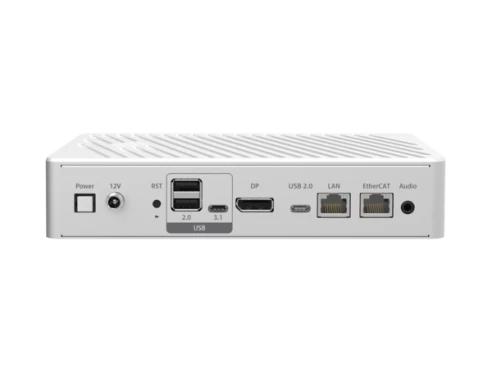

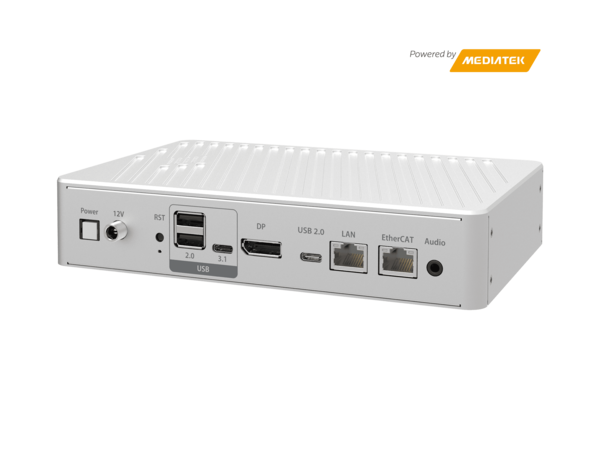

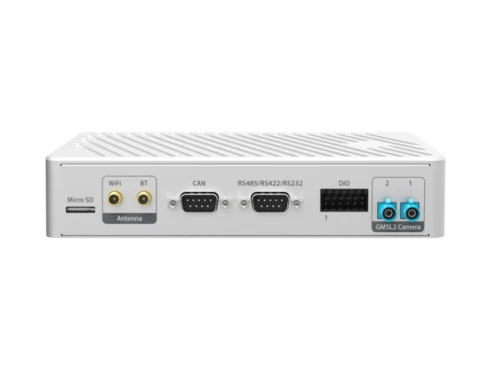

LU720

ART. NR.:: 80411400

Embedded Edge AI Box PC, Mediatek Genio 720 2.6GHz SoC, 8/16GB LPDDR5 RAM, 64/128GB Storage, DP, 1xGbE LAN, 1xEtherCAT Opt., 2xUSB 2.0, 2xUSB-C, 1xCOM, 1xCAN, 8-bit DIO, 2xGMSL2, WiFi/BT, MicroSD, Audio, 12VDC-in with 60W Power Adapter

Preis auf Anfrage

Aufbau

Gehäuse

Aluminiumgehäuse

Einbaumöglichkeit

Desktop

Schutzlevel Gehäuse

IP40

Typ

Lüfterlos

CPU

Installierter Prozessor

MediaTek MT8391 (Genio 720)

Socket

CPU onboard

Maximale CPU-Frequenz

2.6 GHz

Chipsatz

SoC

Speicher

Formfaktor

DDR5

Socket Typ

Verlötet

ECC

Standard Onboard Speicher

8 GB

Maximum Speicher

16 GB

Bauweise

Onboard fixiert

Grafik

Grafikcontroller

integriert im Prozessor

Schnitstellen

DisplayPort

Ethernet

Ethernet gesamt

10/100/1000 Mbit/s

Wi-Fi

WLAN IEEE-Norm

802.11a/b/g/n/ac/ax

Schnittstellen Seriell / Parallel

COM gesamt

RS-232/422/485

USB gesamt

USB 2.0

USB v3.x

Digital Eingang / Ausgang

Gesamtanzahl

Industrie Protokolle

CAN Port

Schnittstelle

MicroSD Speicherkarten-Slots

Einbauschacht

Massenspeicher Typ

Flash

Massenspeicher-Formfaktor

UFS

Massenspeicher 1. Kapazität

64 GB

Status LEDs / Schalter

LED

Power LED

Schalter

On/Off, 1xReset

Schnittstellen

DB9, RJ45 Ethernet, 2xUSB, Mic In, Line Out, DC Input, Display port, DIO (terminal block), MicroSD card slot, 2xUSB type C, DB9 CAN, 2xGMSL2

Stromversorgung

Eingangsspannung DC

12..12 V

Netzteil

Art der Spannungsversorgung

External power adapter AC/DC

Ausgangsleistung

60 W

Eingangsspannung AC

100..240 V

Software

Betriebssystemkompatibilität

Android, Ubuntu 24.04

Maße und Gewicht

Breite

192 mm

Höhe

36 mm

Tiefe

128 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-10..60 °C

Luftfeuchtigkeit

0-95%

Normen und Zertifikate

Zertifizierungen

CE, FCC

Maße

Bruttogewicht

1.2 kg

Nettogewicht

0.88 kg

Dokumente

LU720-Datasheet.pdf
