Name: Coeus-3821S-16G-256G
Brand: NEXCOM
SKU: 80280800
Price: 129182.19 EUR
Availability: PreOrder

Home

Catalog

Industrie PCs

Embedded Edge PCs, Industrie Box PCs und Mini-PCs

Embedded PCs mit diskreter GPU und KI Accelerator

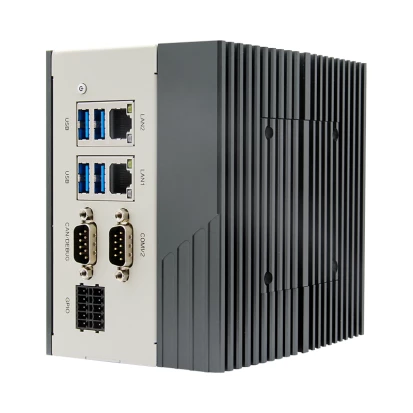

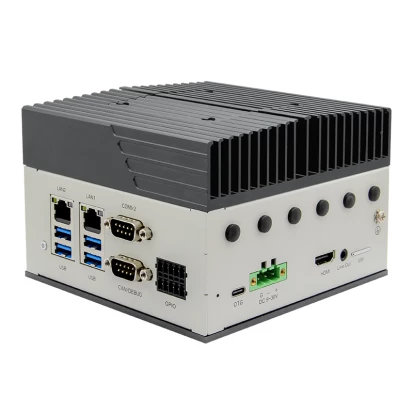

Coeus-3821S-16G-256G

NEXCOM

ART. NR.:: 80280800

Embedded Edge AI System, NVIDIA Jetson Orin NX 8-Core CPU, 16GB LPDDR5 RAM, Ampere 1024-Core GPU, 256GB NVMe SSD, HDMI, 2xGbE LAN, 4xUSB 3.0, 1xUSB-C OTG, 2xCOM, CAN, 8-bit GPIO, MicroSD, 1xMiniPCIe, 1xM.2 Key-B, 1xM.2 Key-E, Audio, 9-30VDC-in

Preis auf Anfrage

Aufbau

Gehäuse

Metallgehäuse mit Aluminium-Kühlkörper

Einbaumöglichkeit

DIN-Rail mount, Wall, Desktop

Typ

Aktiver Lüfter

CPU

Installierter Prozessor

Nvidia Jetson Orin NX (8-Core)

Socket

CPU onboard

Maximale CPU-Frequenz

2 GHz

Chipsatz

SoC

Speicher

Formfaktor

DDR5

Socket Typ

Verlötet

ECC

Standard Onboard Speicher

16 GB

Bauweise

Onboard fixiert

Grafik

Grafikcontroller

NVIDIA Ampere, 1024-cores, 32 Tensor Cores

Schnitstellen

HDMI

Ethernet

Controller Typ

Intel i210

Ethernet gesamt

10/100/1000 Mbit/s

Wi-Fi

WLAN IEEE-Norm

Yes (Optional)

Schnittstellen Seriell / Parallel

COM gesamt

RS-232

RS-232/422/485

USB gesamt

USB v3.x

Digital Eingang / Ausgang

GPIO

4xDigital In / 4xDigital Out

Industrie Protokolle

CAN Port

Schnittstelle

M.2

MicroSD Speicherkarten-Slots

Einbauschacht

Massenspeicher Typ

SSD

Massenspeicher-Formfaktor

M.2

Massenspeicher-Schnittstelle

PCIe x4

Massenspeicher 1. Kapazität

256 GB

Steckplätze

Gesamtanzahl

M.2

M.2 Formfaktor

3042 M, 2280 M, 2230 E, 3052 B

Mini-PCIe/Mini Card

SIM-Karten Steckplätze

Yes, 1

Antennen Eigenschaften

Mobilfunk

4G (Optional)

Status LEDs / Schalter

LED

Power LED

Schalter

On/Off

Schnittstellen

DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, SIM Card Slot, DC input (terminal block), GPIO (terminal block), USB type C, DB9 CAN

Stromversorgung

Eingangsspannung DC

9..30 V

Netzteil

Unterstützte Stromversorgung

External power adapter AC/DC

Software

Betriebssystemkompatibilität

Ubuntu 22.04

Maße und Gewicht

Breite

133 mm

Höhe

91.3 mm

Tiefe

135 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-10..55 °C

Luftfeuchtigkeit

10-95%

Normen und Zertifikate

Zertifizierungen

CE, FCC

Internetsicherheit

LVD

Maße

Bruttogewicht

2.45 kg

Nettogewicht

1.35 kg

Dokumente

Coeus-3821S Datasheet
