Name: WNAI-E600-32
Brand: Winmate
SKU: 80217000
Price: 127441.16 EUR
Availability: PreOrder

Home

Catalog

Industrie PCs

Embedded Edge PCs, Industrie Box PCs und Mini-PCs

Embedded PCs mit diskreter GPU und KI Accelerator

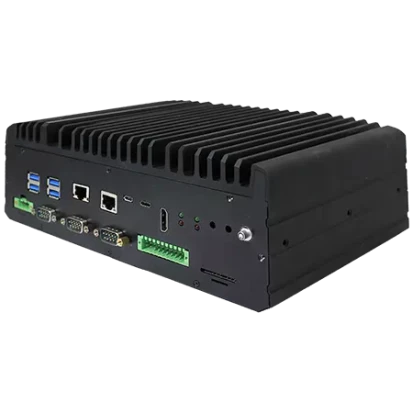

WNAI-E600-32

Winmate

ART. NR.:: 80217000

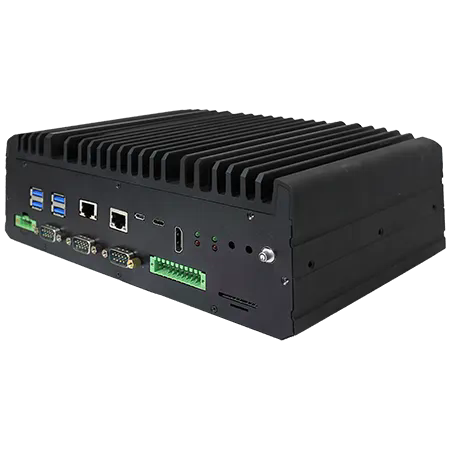

Fanless Edge AI System, Nvidia Jetson AGX Orin 8-core SoC, Nvidia Ampere GPU, 32GB LPDDR5 RAM, 64GB eMMC, HDMI, 1x10GbE LAN, 1xGbE LAN, 4xGbE PoE LAN, 4xUSB 3.2, 1xUSB-C, MicroSD, 2xCOM, 16-bit DIO, 2xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 9-36VAC-in

Preis auf Anfrage

Aufbau

Gehäuse

Metallgehäuse mit Aluminium-Kühlkörper

Einbaumöglichkeit

Desktop, Einbau

Typ

Lüfterlos

CPU

Installierter Prozessor

Nvidia Jetson AGX Orin (8-Core)

Socket

CPU onboard

Maximale CPU-Frequenz

2 GHz

Speicher

Formfaktor

DDR5

Standard Onboard Speicher

32 GB

Bauweise

Onboard fixiert

Grafik

Grafikcontroller

NVIDIA Ampere, 2048-cores, 64 Tensor Cores

Schnitstellen

HDMI

Ethernet

10/100/1000 Mbit/s

10 Gbit/s

PoE 10/100/1000 Mbit/s

Schnittstellen Seriell / Parallel

COM gesamt

RS-232/422/485

USB gesamt

USB 2.0

USB v3.x

Digital Eingang / Ausgang

Gesamtanzahl

Isoliert

Yes

Industrie Protokolle

CAN Port

Schnittstelle

SATA 3

M.2

MicroSD Speicherkarten-Slots

Laufwerksschächte

Gesamtanzahl

2.5" intern

Einbauschacht

Massenspeicher Typ

Flash

Massenspeicher-Formfaktor

eMMC

Massenspeicher 1. Kapazität

64 GB

Steckplätze

Gesamtanzahl

M.2

M.2 Formfaktor

2280 M, 2230 E, 3052 B, 3042 B

SIM-Karten Steckplätze

Yes, 1, Nano SIM

Antennen Eigenschaften

Mobilfunk

4G (Optional)

Status LEDs / Schalter

LED

Power LED, WLAN LED, WWAN LED, SSD LED

Schalter

On/Off, 1xReset

Schnittstellen

Intern

2xUSB 2.0

Schnittstellen

2xDB9, HDMI, 6xRJ45 Ethernet, 4xUSB, SIM Card Slot, DC input (terminal block), DIO (terminal block), 1xMicro USB, MicroSD card slot, 1xCAN Bus, USB type C

Stromversorgung

Eingangsspannung DC

9 V

Netzteil

Unterstützte Stromversorgung

External power adapter AC/DC

Software

Betriebssystem installiert

NVIDIA Jetpack 6.2

Maße und Gewicht

Breite

250 mm

Höhe

91.5 mm

Tiefe

170 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..45 °C

Normen und Zertifikate

Zertifizierungen

CE/FCC

Maße

Bruttogewicht

9.4 kg

Nettogewicht

7.85 kg

Dokumente

WNAI-E600-32-Datasheet.pdf
