iBPC-N8MP

iBPC-N8MP

ICOP
ART. NR.:: 80362400
Compact Industrial Edge AI Box PC, NXP i.MX8M Plus 1.6GHz SoC, Up to 8GB LPDDR4 RAM, Up to 128GB eMMC, NPU 2.3TOP/s, HDMI, LVDS Opt., 2xGbE LAN, 2xUSB 3.0, 2xUSB 2.0, 4xCOM, 2xCAN, 13-bit GPIO, MicroSD Slot, 1xMiniPCIe, 1xM.2 Key-M Opt., 12-24VDC-in
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Metallgehäuse mit Aluminium-Kühlkörper
Einbaumöglichkeit
Desktop
Typ
Lüfterlos
CPU
Installierter Prozessor
NXP i.MX8M Plus Quad
Socket
CPU onboard
Maximale CPU-Frequenz
1.6 GHz
Chipsatz
Chipsatz
SoC
Speicher
Formfaktor
DDR4
Socket Typ
Verlötet
ECC
No
Standard Onboard Speicher
8 GB
Bauweise
Onboard fixiert
Grafik
Grafikcontroller
integriert im Prozessor
Schnitstellen
LVDS, HDMI
Ethernet
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
4
USB gesamt
4
USB 2.0
2
USB v3.x
2
Digital Eingang / Ausgang
GPIO
Yes
Industrie Protokolle
CAN Port
2
Schnittstelle
M.2
1
mSATA
1
Einbauschacht
Massenspeicher 2. Form-Faktor
eMMC
Massenspeicher 2. Kapazität
128 GB
Steckplätze
Gesamtanzahl
2
M.2
1
M.2 Formfaktor
2242 M
Mini-PCIe/Mini Card
1
Status LEDs / Schalter
LED
Power LED, SSD LED
Schalter
On/Off, 1xReset
Schnittstellen
Schnittstellen

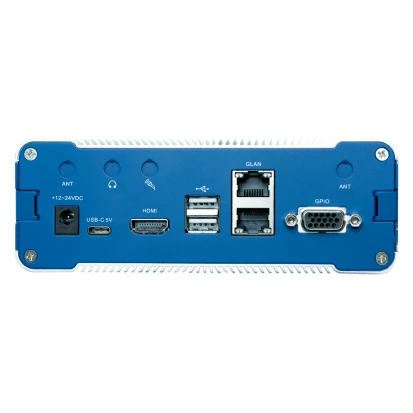

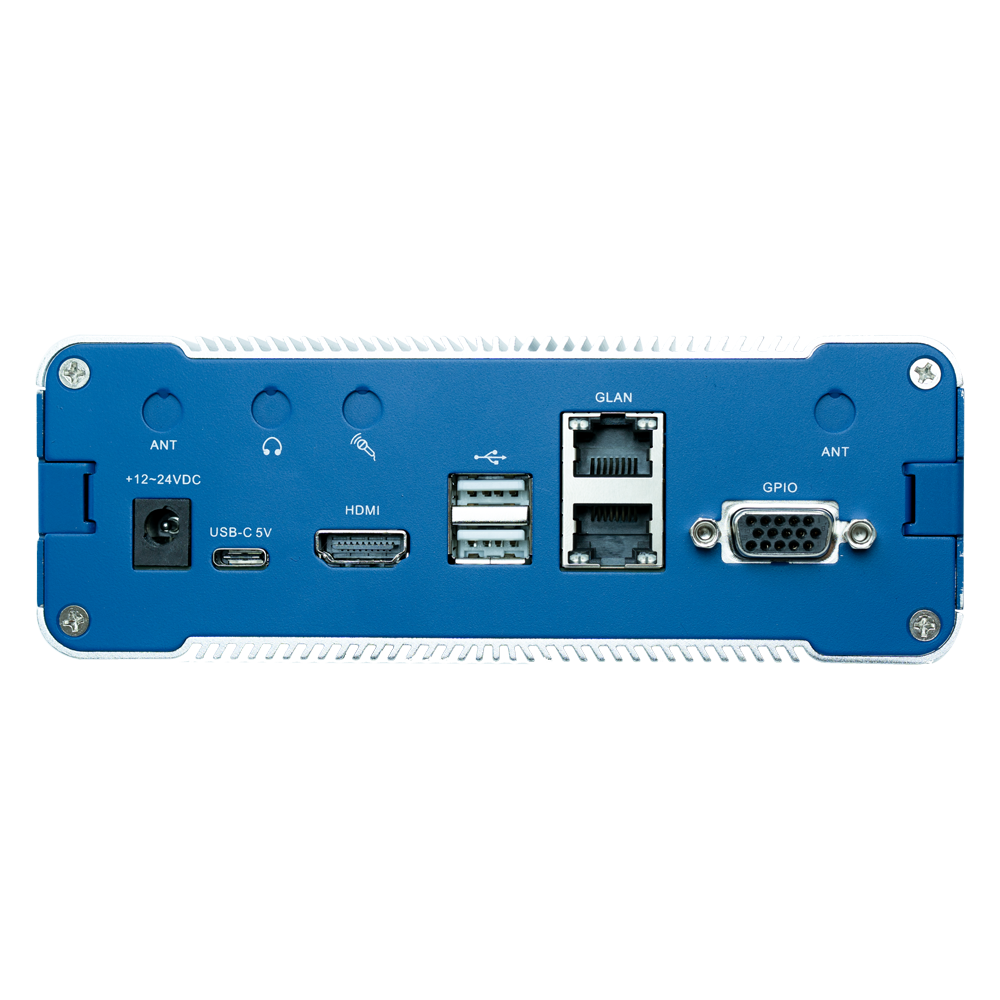

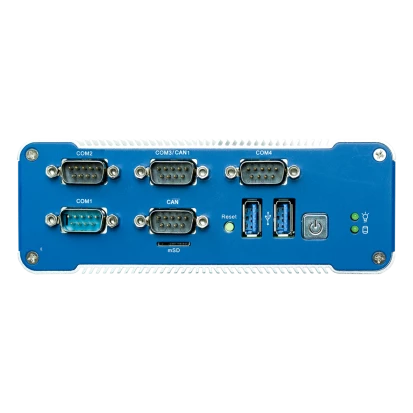

4xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input, DB15 GPIO, MicroSD card slot, DB9 CAN
Stromversorgung
Eingangsspannung DC
12..24 V
Netzteil
Unterstützte Stromversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Android, Linux OS
Maße und Gewicht
Breite
152 mm
Höhe
54 mm
Tiefe
104 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-20..70 °C
Maße
Bruttogewicht
3 kg
Nettogewicht
2.4 kg
