NISE-3800E-GCIoT

NISE-3800E-GCIoT

NEXCOM
ART. NR.:: 56981900

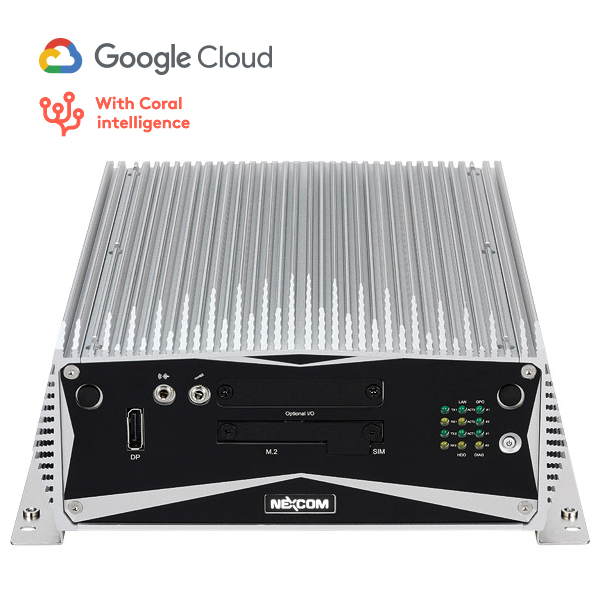

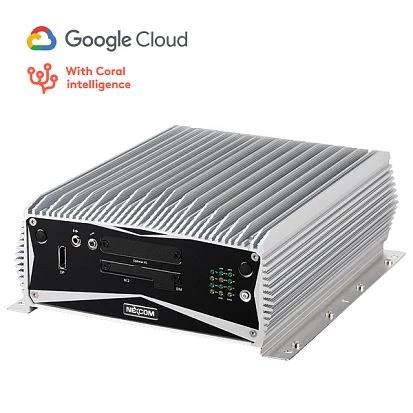

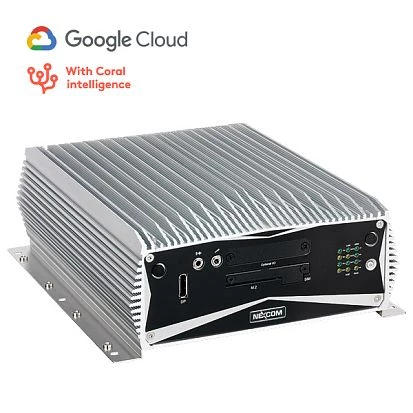

Fanless Embedded Box PC, Support 6th gen. Intel Core i7/i5/i3 CPUs, Q170 Chipset, up to 16GB DDR4 RAM, DVI, HDMI, DP, 3xGbit LAN, 2xUSB 2.0,6xUSB, 2xCOM, Audio, 2.5" SATA HDD Bay, 2xMini-PCIe, PCIe x4, 9..30V DC-In
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Metallgehäuse, Aluminiumgehäuse
CPU
CPU Generation/Familie
Skylake
Socket
LGA1151
CPU-Support-Typ
Core i3, Core i5, Celeron, Core i7, Pentium
Chipsatz
Chipsatz
Intel Q370
Speicher
Socket Typ
2xSODIMM
Maximum Speicher
16 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
Intel HD 530 graphics
Ethernet
Controller Typ
Intel i210-IT
Ethernet gesamt
3
10/100/1000 Mbit/s
3
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232/422/485
2
USB gesamt
6
USB 2.0
2
USB v3.x
4
Schnittstelle
mSATA
1
Laufwerksschächte
Gesamtanzahl
1
2.5" extern
1
Steckplätze
Gesamtanzahl
3
PCI Express x4
1
M.2
1
Mini-PCIe/Mini Card
2
SIM-Karten Steckplätze
Yes, 1
Schnittstellen
Schnittstellen

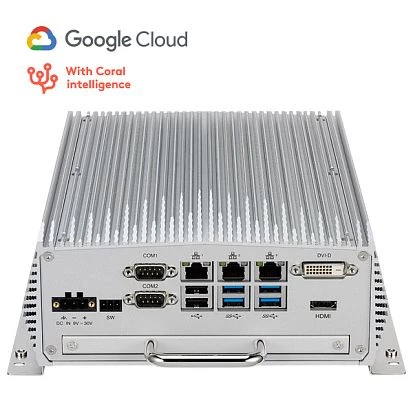

ATX, 2xDB9, DVI-D, HDMI, 6xUSB, Mic In, Line Out, Display port, SIM Card Slot
Stromversorgung
Eingangsspannung DC
9..30 V
Netzteil
Art der Spannungsversorgung
AT, ATX
Software
Betriebssystemkompatibilität
Windows 7, Windows 8, Windows 10
Maße und Gewicht
Breite
215 mm
Höhe
93 mm
Tiefe
272 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-5..55 °C
Vibration
Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64; Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
Schock
HDD: 20G, half sine, 11ms, IEC60068-27; M.2: 50G, half sine, 11ms, IEC60068-27
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A, EN61000-6-2, EN61000-6-4
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Maße
Bruttogewicht
5.9 kg
Nettogewicht
4.5 kg

Dokumente
Datasheet_NISE_3800E_GCIoT__39189710.pdf
