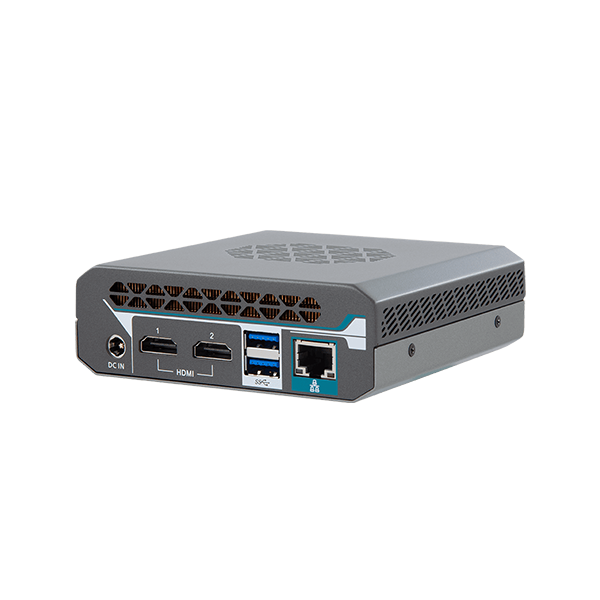

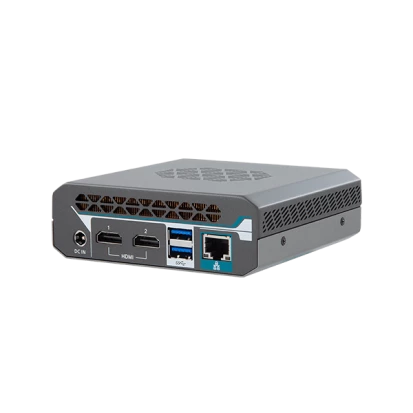

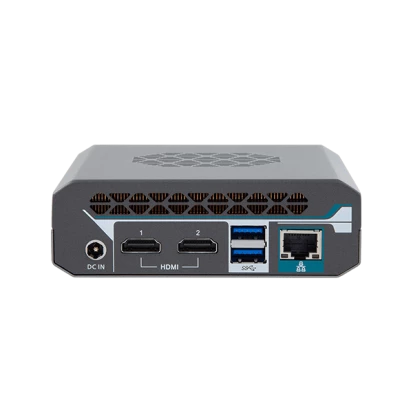

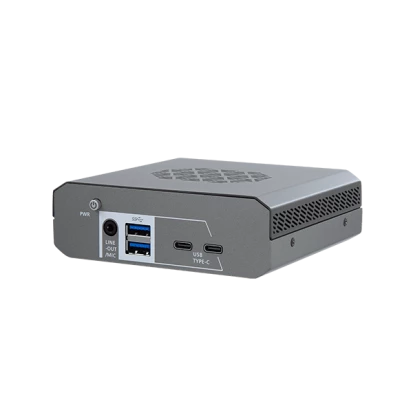

IEC-3714-125H

IEC-3714-125H

Arbor
ART. NR.:: 57976800
Digital Signage Player, Intel Core Ultra 5 125H CPU, 16GB (96GB Max.) DDR5 RAM, 512GB NVME SSD, 2xHDMI, 1x2.5GbE LAN, 4xUSB 3.2, 2xUSB 3.2 Type-C DP Alt., 1xM.2 2242 Key-M, 1xM.2 2242/2280 Key-M, Audio, 12-24VDC-in
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall, Desktop
Typ
Lüfterlos
CPU
CPU Generation/Familie
Meteor Lake
Installierter Prozessor
Intel Core Ultra 5 125H
Socket
CPU onboard
Maximale CPU-Frequenz
4.5 GHz
Chipsatz
Chipsatz
Intel SoC
Speicher
Formfaktor
DDR5
Socket Typ
2xSODIMM
ECC
No
Standard Onboard Speicher
16 GB
Maximum Speicher
96 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Schnitstellen
2xHDMI, Type C DP
Ethernet
Controller Typ
Intel i226-LM
Ethernet gesamt
1
2,5 Gbit/s
1
Schnittstellen Seriell / Parallel
USB gesamt
6
USB v3.x
6
Schnittstelle
M.2
2
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher-Formfaktor
M.2
Massenspeicher-Schnittstelle
PCIe x4
Massenspeicher 1. Kapazität
512 GB
Steckplätze
Gesamtanzahl
2
M.2
2
M.2 Formfaktor
2242 M, 2280 M
Status LEDs / Schalter
Schalter
On/Off
Schnittstellen
Schnittstellen
2xHDMI, RJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, USB type C
Stromversorgung
Eingangsspannung DC
12..24 V
Netzteil
Unterstützte Stromversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Ubuntu, Windows 10, Windows 11
Maße und Gewicht
Breite
115.4 mm
Höhe
107.6 mm
Tiefe
37 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..50 °C
Luftfeuchtigkeit
10-95%
Vibration
1.0 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct./min, 1 hr/axis, operatio
Schock
Non-operating 10G
Normen und Zertifikate
Zertifizierungen
CE/FCC
Maße
Bruttogewicht
0.65 kg
Nettogewicht
0.4 kg

Dokumente
IEC-3714-Datasheet.pdf
