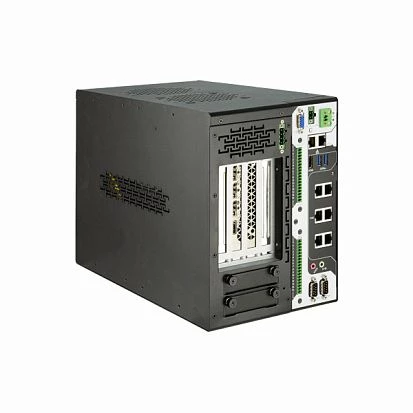

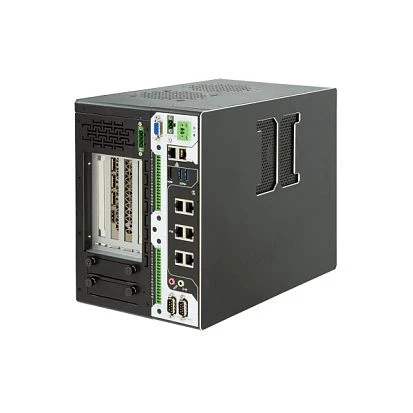

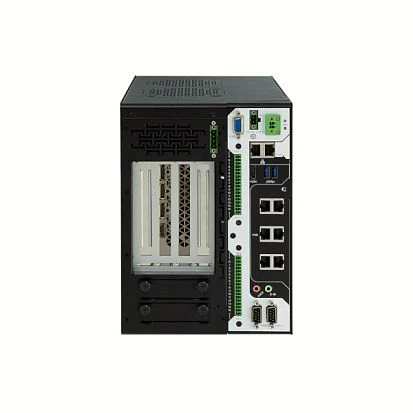

FPC-9107-P6-G2

Arbor
ART. NR.:: 57848000
Embedded Edge AI PC, Intel 10th Gen Core i3/i5/i7/i9 CPU, W480E, Up to 64GB DDR4 RAM, HDMI/VGA, 2x2.5/1GbE LAN, 6xGbE PoE LAN, 2xUSB 3.2, 2xUSB 2.0, 2xCOM, DIO, MiniPCIe, 2xM.2, 2xSIM, 2x2.5" Bay, 2xPCIe x16, 1xPCIe x4 , 12-36VDC-In, -20..50C, R1.2
Preis auf Anfrage
Verfügbar
Verfügbar

Fan
Preis exkl. MwSt.
Preis auf Anfrage
Preis auf Anfrage
External Power Adapter
Preis auf Anfrage
Wall Mount Kit
Preis auf Anfrage
Add On Card 1
Preis auf Anfrage
Accessories
Preis auf Anfrage
Additional Options 1
Preis auf Anfrage

Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
Wall, Desktop, Einbau
Typ
Aktiver Lüfter
CPU
CPU Generation/Familie
Comet Lake
Socket
LGA1200
CPU-Support-Typ
Core i3, Core i5, Core i7, Core i9
Chipsatz
Chipsatz
Intel W480E
Speicher
Formfaktor
DDR4
Socket Typ
2xSODIMM
ECC
Yes
Maximum Speicher
64 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor, Intel UHD Graphics
Schnitstellen
HDMI, VGA
Ethernet
Controller Typ
Intel WGI219LM 10/100/1000 Mbps, Intel WGI225LM
Ethernet gesamt
8
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
PoE 10/100/1000 Mbit/s
6
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232/422/485
2
USB gesamt
2
USB v3.x
2
Digital Eingang / Ausgang
Gesamtanzahl
32
Isoliert
Yes
Schnittstelle
SATA 3
2
M.2
1
Laufwerksschächte
Gesamtanzahl
2
2.5" extern
2
Steckplätze
Gesamtanzahl
6
PCI Express x16
2
PCI Express x4
1
M.2
2
M.2 Formfaktor
2230 E, 3052 B
Mini-PCIe/Mini Card
1
SIM-Karten Steckplätze
Yes, 2
Antennen Eigenschaften
Mobilfunk
4G (Optional)
Zusätzliche Funktionen
GPS
Optional
Watchdog-Timer-Typ
Software
Status LEDs / Schalter
LED
Power LED
Schalter
On/Off
Schnittstellen
Schnittstellen
2xDB9, DB15 VGA, HDMI, 2xUSB, Mic In, Line Out, DC input (terminal block), 2xDIO (terminal block), 8xRJ45 Ethernet
Stromversorgung
Eingangsspannung DC
12..36 V
Backup-Eingang DC-Versorgungsspannung
12~36 V
Netzteil
Unterstützte Stromversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Windows 10 IoT Enterprise, Linux kernel 4.x
Maße und Gewicht
Breite
181 mm
Höhe
320 mm
Tiefe
250 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-20..50 °C
Luftfeuchtigkeit
10-95%
Vibration
Comply with MIL-STD-810G, Method 514.6, Category 4 w/ SSD
Schock
Comply with MIL-STD-810G, Method 516.6,Table 516.6-II, 20G
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Maße
Bruttogewicht
7.4 kg
Nettogewicht
6.7 kg
