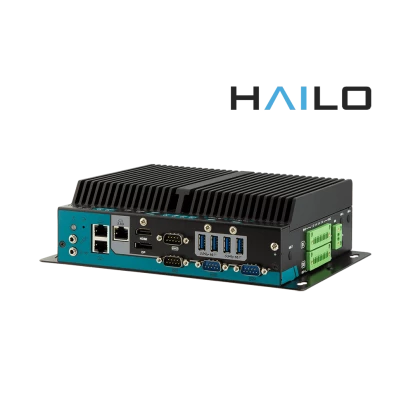

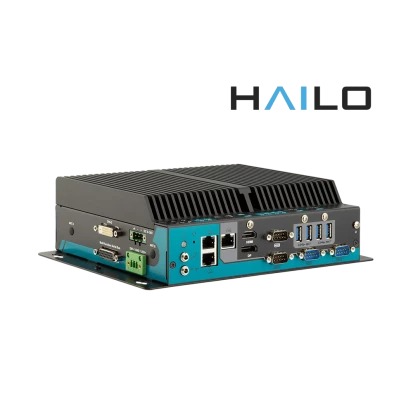

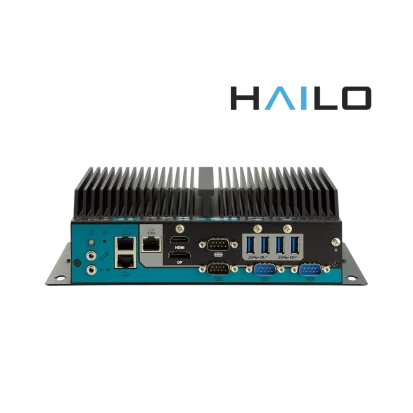

ARES-1980-Series

ARES-1980-Series

Arbor
ART. NR.:: 57843500
Fanless Embedded PC, Intel 11th Gen Core i3/i5/i7 CPU, Up to 64GB DDR4 RAM, DP/DVI-D/HDMI, 1x2.5GbE LAN, 2xGbE LAN, 4xUSB 3.2, 1xUSB 2.0, 4xCOM, 16-bit DIO, 1xMiniPCIe, SIM, 3xM.2, 1x2.5" Drive Bay, Audio, 9-36VDC-In, -20..60C, R1.1
Preis auf Anfrage
Verfügbar
Verfügbar

System configuration
Preis exkl. MwSt.
Preis auf Anfrage
Preis auf Anfrage
Preis auf Anfrage
External Power Adapter
Preis auf Anfrage
Preis auf Anfrage
Mini-PCIe Extension 1
Preis auf Anfrage
Slide Rails
Preis auf Anfrage
Add On Card 1
Preis auf Anfrage
Accessories
Preis auf Anfrage
Preis auf Anfrage

Aufbau
Gehäuse
Metallgehäuse, Aluminiumgehäuse
Einbaumöglichkeit
Wall, Desktop, Einbau
Typ
Lüfterlos
CPU
CPU Generation/Familie
Tiger Lake
CPU-Support-Typ
Core i3, Core i5, Core i7
Chipsatz
Chipsatz
Intel SoC
Speicher
Formfaktor
DDR4
Socket Typ
2xSODIMM
ECC
No
Maximum Speicher
64 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor, Intel Iris Xe Graphics
Schnitstellen
DisplayPort, DVI-D, HDMI
Ethernet
Controller Typ
Intel i211-AT 10/100/1000 Mbps, Intel i225LM
Ethernet gesamt
3
10/100/1000 Mbit/s
2
2,5 Gbit/s
1
Schnittstellen Seriell / Parallel
COM gesamt
4
RS-232
2
RS-232/422/485
2
USB gesamt
5
USB 2.0
1
USB v3.x
4
Digital Eingang / Ausgang
Gesamtanzahl
16
Isoliert
Yes
Schnittstelle
SATA 3
1
M.2
1
Laufwerksschächte
Gesamtanzahl
1
2.5" intern
1
Steckplätze
Gesamtanzahl
4
M.2
3
M.2 Formfaktor
2242 M, 2280 M, 2230 E, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM-Karten Steckplätze
Yes, 3, Nano SIM
Antennen Eigenschaften
Mobilfunk
4G (Optional)
Zusätzliche Funktionen
Watchdog-Timer-Typ
Software
Status LEDs / Schalter
LED
Power LED
Schnittstellen
Schnittstellen
4xDB9, HDMI, 3xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display port, DC input (terminal block), DIO (terminal block), DB26 Multi-I/O Connector
Stromversorgung
Eingangsspannung DC
9..36 V
Stromverbrauch
120 W
Netzteil
Unterstützte Stromversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Windows 10 IoT Enterprise, Ubuntu 20.04
Maße und Gewicht
Breite
210 mm
Höhe
70 mm
Tiefe
180 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-20..60 °C
Luftfeuchtigkeit
10-95%
Vibration
5~500Hz 3 Grms X,Y,Z axis w/ SSD, according to IEC 60068-2-64
Schock
40G peak acceleration (11 m sec. duration), operation w/ SSD; 80G peak acceleration (11 m sec. duration), nonoperation w/ SSD; According to IEC 60068-2-27
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Maße
Bruttogewicht
4.5 kg
Nettogewicht
3.7 kg

Dokumente
ARES-1980-Series-Datasheet.pdf ARES-1980-Series-User-Manual.pdf
