Name: NTDRW100
Brand: Winmate
SKU: 80189800
Price: 127365.59 EUR
Availability: PreOrder

Home

Catalog

Industrie PCs

Embedded Edge PCs, Industrie Box PCs und Mini-PCs

Embedded PCs mit diskreter GPU und KI Accelerator

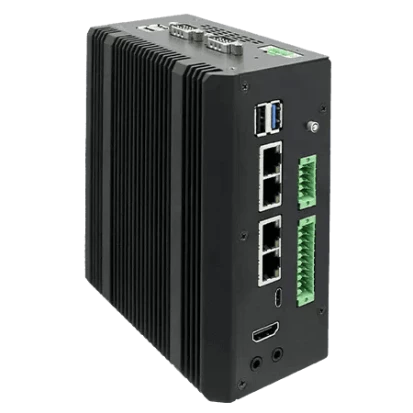

NTDRW100

Winmate

ART. NR.:: 80189800

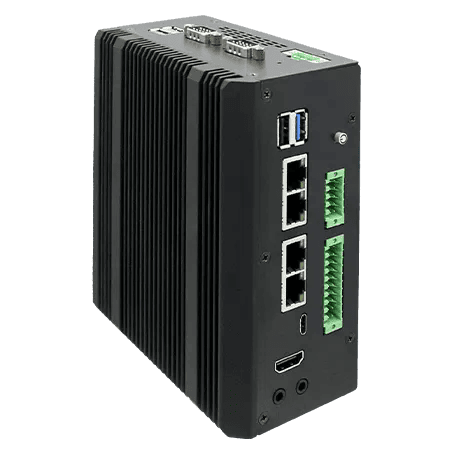

Fanless DIN-Rail AI Box PC, NVIDIA Jetson Orin Nano 6-core SoC, NVIDIA Ampere 1024-core GPU, 8GB LPDDR5 RAM, 256GB NVME SSD, HDMI, 3xGbE LAN, 1xPoE LAN, 3xUSB 3.2, 1xUSB-C, 1xUSB 2.0, 3xCOM, 16-bit DIO, 1xM.2 Key-B, 1xM.2 Key-E, 9-36VDC-in with PSU

Preis auf Anfrage

Aufbau

Gehäuse

Metallgehäuse mit Aluminium-Kühlkörper

Einbaumöglichkeit

DIN-Rail mount, Wall, Desktop

Typ

Lüfterlos

CPU

Installierter Prozessor

Nvidia Jetson Orin Nano (6-Core)

Socket

CPU onboard

Maximale CPU-Frequenz

1.7 GHz

Speicher

Formfaktor

DDR5

Standard Onboard Speicher

8 GB

Bauweise

Onboard fixiert

Grafik

Grafikcontroller

NVIDIA Ampere, 1024-cores, 32 Tensor Cores

Schnitstellen

HDMI

Ethernet

10/100/1000 Mbit/s

PoE+ 10/100/1000 Mbit/s

Schnittstellen Seriell / Parallel

COM gesamt

RS-232/422/485

USB gesamt

USB 2.0

USB v3.x

Digital Eingang / Ausgang

Gesamtanzahl

Isoliert

Yes

Schnittstelle

M.2

Einbauschacht

Massenspeicher Typ

SSD

Massenspeicher-Formfaktor

M.2

Massenspeicher-Schnittstelle

PCIe x4

Massenspeicher 1. Kapazität

256 GB

Steckplätze

Gesamtanzahl

M.2

M.2 Formfaktor

2280 M, 2230 E, 3052 B, 3042 B

Antennen Eigenschaften

Mobilfunk

4G (Optional)

Status LEDs / Schalter

LED

Power LED

Schalter

On/Off, 1xReset

Schnittstellen

DB9, HDMI, 4xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block), DIO (terminal block), 2xCOM (terminal block), USB type C

Stromversorgung

Eingangsspannung DC

9 V

Netzteil

Unterstützte Stromversorgung

External power adapter AC/DC

Software

Betriebssystemkompatibilität

Linux OS

Maße und Gewicht

Breite

150 mm

Höhe

68 mm

Tiefe

130 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-20..60 °C

Normen und Zertifikate

Zertifizierungen

CE/FCC

MIL-STD-810

MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration

Maße

Bruttogewicht

3.4 kg

Nettogewicht

2.5 kg

Dokumente

NTDRW100-Datasheet.pdf
