Name: AIE-PN33-6USB-1-A1
Brand: AETINA
SKU: 11640400
Price: 137347.4 EUR
Availability: PreOrder

Home

Catalog

Industrie PCs

Embedded Edge PCs, Industrie Box PCs und Mini-PCs

Embedded PCs mit diskreter GPU und KI Accelerator

AIE-PN33-6USB-1-A1

AETINA

ART. NR.:: 11640400

Orin NX 8GB, 1 x HDMI, 2 x GbE, 6 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25C ~ +55C

Preis auf Anfrage

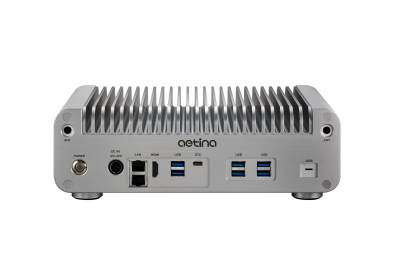

Der AIE-PN33-6USB-1-A1 ist ein lüfterloser Edge Computer von Aetina mit NVIDIA Jetson Orin NX 8 GB (bis zu 70 TOPS KI-Leistung) – für KI-Inferenz direkt an der Datenquelle. Sechs USB-Ports erlauben Multi-Kamera-Setups ohne zusätzliche Hubs – etwa für Prüfstände mit mehreren Blickwinkeln.

Vorteile

Sechs USB-Ports für Multi-Kamera-Setups ohne Hubs
Lüfterloser Betrieb – keine beweglichen Teile, geringer Wartungsaufwand im 24/7-Einsatz
DIN-Rail- und Wandmontage – direkte Integration in den Schaltschrank
Kompakt: 270 × 195 × 80 mm, 1 kg

Einsatzbereiche

Multi-Kamera-Inspektion
Prüfstände
Machine Vision

Alle Edge KI Computer von Aetina

Aufbau

Gehäuse

Metallgehäuse

Einbaumöglichkeit

DIN-Rail mount, Wall

Typ

Lüfterlos

CPU

Installierter Prozessor

Nvidia Jetson Orin NX (6-Core)

Speicher

Formfaktor

DDR5

Standard Onboard Speicher

8 GB

Maximum Speicher

8 GB

Bauweise

Onboard fixiert

Grafik

Grafikcontroller

NVIDIA Ampere, 1024-cores, 32 Tensor Cores

Schnitstellen

HDMI

Ethernet

10/100/1000 Mbit/s

Schnittstellen Seriell / Parallel

RS-422/485

USB gesamt

USB v3.x

Schnittstelle

M.2

Einbauschacht

Massenspeicher Typ

SSD

Massenspeicher 1. Kapazität

128 GB

Steckplätze

M.2

M.2 Formfaktor

2242 M, 2230 E, 3052 B, 3042 B

Status LEDs / Schalter

LED

Power LED

Schalter

On/Off

Schnittstellen

HDMI, 2xRJ45, 7xUSB, 1xCAN Bus

Stromversorgung

Eingangsspannung DC

12 V

Netzteil

Unterstützte Stromversorgung

External power adapter AC/DC

Maße und Gewicht

Breite

270 mm

Höhe

195 mm

Tiefe

80 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-25..55 °C

Maße

Bruttogewicht

1.5 kg

Nettogewicht

1 kg

Dokumente

Aetina_AIE-PO23_33_PN33_43-6USB_datasheet.pdf
