Name: AIE-KO22-1-A1
Brand: AETINA
SKU: 11642200
Price: 137347.4 EUR
Availability: PreOrder

Home

Catalog

Industrie PCs

Embedded Edge PCs, Industrie Box PCs und Mini-PCs

Embedded PCs mit diskreter GPU und KI Accelerator

AIE-KO22-1-A1

AETINA

ART. NR.:: 11642200

Orin Nano 4GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25C to +70C

Preis auf Anfrage

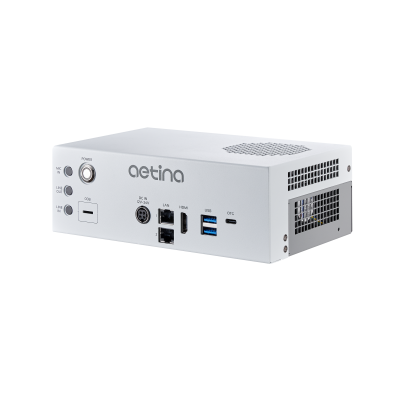

Der AIE-KO22-1-A1 ist ein lüfterloser Edge Computer von Aetina mit NVIDIA Jetson Orin Nano 4 GB (bis zu 20 TOPS KI-Leistung) – für den Einstieg in die KI-Inferenz am Netzwerkrand. Mit 196,5 × 124 × 68 mm und 1 kg passt das System auch in beengte Einbausituationen.

Vorteile

Lüfterloser Betrieb – keine beweglichen Teile, geringer Wartungsaufwand im 24/7-Einsatz
DIN-Rail- und Wandmontage – direkte Integration in den Schaltschrank
Kompakt: 196,5 × 124 × 68 mm, 1 kg
512 CUDA-Cores und 16 Tensor-Cores (NVIDIA Ampere) für parallele KI-Inferenz

Einsatzbereiche

Dezentrale KI-Inferenz
Machine Vision
KI-gestützte Datenauswertung

Alle Edge KI Computer von Aetina

Aufbau

Gehäuse

Metallgehäuse

Einbaumöglichkeit

DIN-Rail mount, Wall

Typ

Lüfterlos

CPU

Installierter Prozessor

Nvidia Jetson Orin Nano (6-Core)

Speicher

Formfaktor

DDR5

Standard Onboard Speicher

4 GB

Maximum Speicher

4 GB

Bauweise

Onboard fixiert

Grafik

Grafikcontroller

NVIDIA Ampere, 512-cores, 16 Tensor Cores

Schnitstellen

HDMI

Ethernet

10/100/1000 Mbit/s

Schnittstellen Seriell / Parallel

COM gesamt

RS-422/485

USB gesamt

USB v3.x

Schnittstelle

M.2

Einbauschacht

Massenspeicher Typ

SSD

Massenspeicher 1. Kapazität

128 GB

Steckplätze

Gesamtanzahl

M.2

M.2 Formfaktor

2242 M, 2230 E, 3052 B, 3042 B

Status LEDs / Schalter

LED

Power LED

Schalter

On/Off

Schnittstellen

2xDB9, HDMI, 2xRJ45, 3xUSB, Mic In, Line Out

Stromversorgung

Eingangsspannung DC

12 V

Netzteil

Unterstützte Stromversorgung

External power adapter AC/DC

Software

Betriebssystemkompatibilität

Linux OS

Maße und Gewicht

Breite

196.5 mm

Höhe

124 mm

Tiefe

68 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-25..55 °C

Maße

Bruttogewicht

1.5 kg

Nettogewicht

1 kg

Dokumente

AIE-KO-Datasheet.pdf
