Name: AEC-2001-08
Brand: Arbor
SKU: 80219300
Price: 112274.28 EUR
Availability: PreOrder

Home

Catalog

Industrie PCs

Embedded Edge PCs, Industrie Box PCs und Mini-PCs

Embedded PCs mit diskreter GPU und KI Accelerator

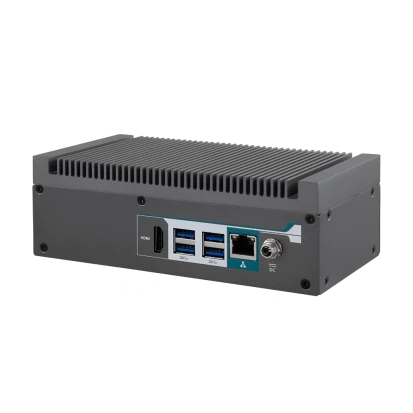

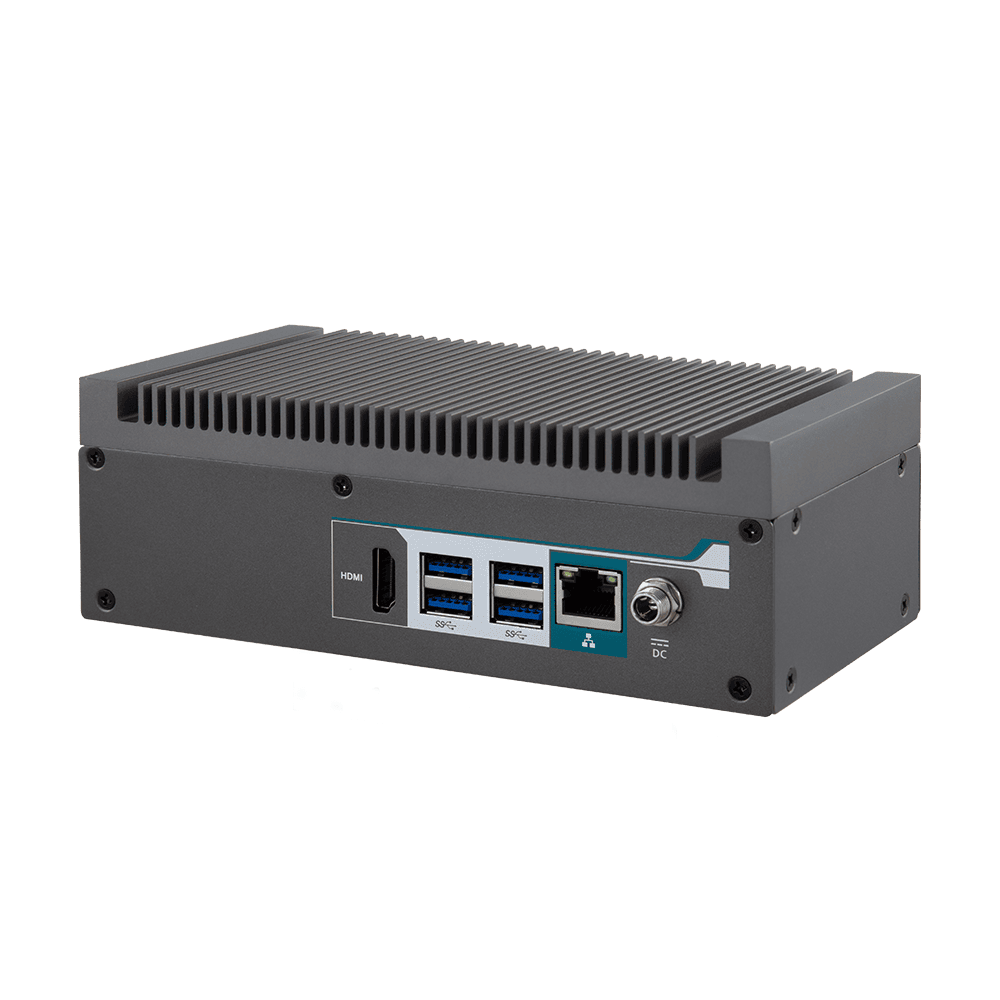

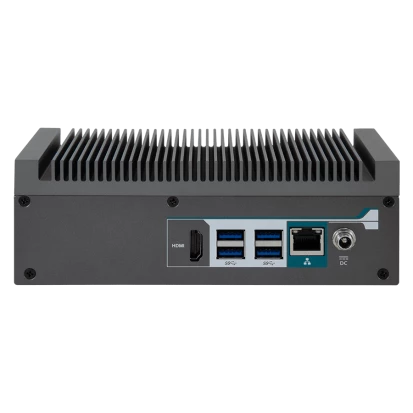

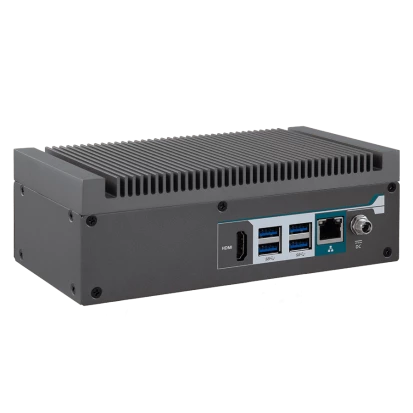

AEC-2001-08

Arbor

ART. NR.:: 80219300

Fanless Edge AI Box PC, NVIDIA Jetson Orin Nano 6-Core SoC, 8GB LPDDR5 RAM, NVIDIA Ampere 1024-Core GPU, 256GB NVME SSD, HDMI, 1xGbE LAN, 4xUSB 3.2, 1xUSB Type-C 2.0, 1xCAN 2.0, 1xM.2 Key-E, 9-24VDC-in

Preis auf Anfrage

Aufbau

Gehäuse

Metallgehäuse mit Aluminium-Kühlkörper

Einbaumöglichkeit

Wall, Desktop

Typ

Lüfterlos

CPU

Installierter Prozessor

Nvidia Jetson Orin Nano (6-Core)

Socket

CPU onboard

Maximale CPU-Frequenz

1.5 GHz

Chipsatz

SoC

Speicher

Formfaktor

DDR5

Socket Typ

Verlötet

ECC

Standard Onboard Speicher

8 GB

Bauweise

Onboard fixiert

Grafik

Grafikcontroller

NVIDIA Ampere, 1024-cores, 32 Tensor Cores

Schnitstellen

HDMI

Ethernet

Ethernet gesamt

10/100/1000 Mbit/s

Wi-Fi

WLAN IEEE-Norm

Yes (Optional)

Schnittstellen Seriell / Parallel

USB gesamt

USB 2.0

USB v3.x

Industrie Protokolle

CAN Port

Schnittstelle

M.2

Einbauschacht

Massenspeicher Typ

SSD

Massenspeicher-Formfaktor

M.2

Massenspeicher-Schnittstelle

PCIe x4

Massenspeicher 1. Kapazität

256 GB

Steckplätze

Gesamtanzahl

M.2

M.2 Formfaktor

2280 M, 2230 E

Status LEDs / Schalter

Schalter

On/Off, 1xReset

Schnittstellen

HDMI, RJ45 Ethernet, 4xUSB, DC Input, CAN (terminal block), USB type C

Stromversorgung

Eingangsspannung DC

9..24 V

Netzteil

Unterstützte Stromversorgung

External power adapter AC/DC

Software

Betriebssystemkompatibilität

Ubuntu 22.04

Betriebssystem installiert

NVIDIA Jetpack 6.2

Maße und Gewicht

Breite

180 mm

Höhe

60.9 mm

Tiefe

96 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-20..65 °C

Luftfeuchtigkeit

5-95%

Maße

Bruttogewicht

2 kg

Nettogewicht

1.25 kg

Dokumente

AEC-2001-08-Datasheet.pdf
