ROBO-8113VG2AR-Q170

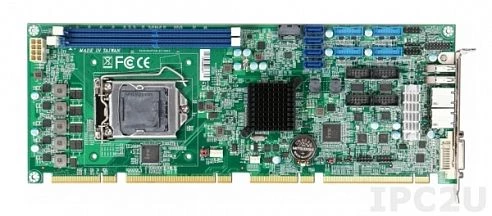

ROBO-8113VG2AR-Q170

Portwell
ART. NR.:: 06994500
Single Board Computer PICMG 1.3 Intel Corei3, i5, i7 ( Supports Intel 6th Skylake-S) LGA1151, chipset Intel Q170, up to 32GB DDR4,DVI-I, HDMI, 2xGb LAN, 10xUSB3.0, 4xCOM, 4xSATA3, Audio header
Preis auf Anfrage
Verfügbar
Verfügbar

Systemarchitektur
Formfaktor
Full Size PICMG 1.3
CPU
CPU-Support-Typ
Core i5, Core i7
Socket
LGA1151
Chipsatz
Chipsatz
Intel Q170
Speicher
Formfaktor
DDR4
Socket Typ
2xDIMM
Maximum Speicher
32 GB
Grafik
Grafikcontroller
integriert im Prozessor
Schnitstellen
DVI-I, HDMI
Ethernet
Controller Typ
Intel WGI210AT 10/100/1000 Mbps, Intel WGI219LM 10/100/1000 Mbps
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
4
RS-232
2
RS-232/422/485
2
USB gesamt
10
USB v3.x
10
Audio
Audio Controller
Realtek ALC886-GR
Schnittstelle
RAID Levels
1, 5, 10
Zusätzliche Funktionen
Watchdog-Timer-Typ
Software
Schnittstellen
Intern
4xSATA 3, 2x10-pin RS-232, 10-pin Audio, HDMI, 8-pin KB/MS, 8-pin ATX, 2x10-pin RS-232/422/485, 4x19-pin USB 3.0
Schnittstellen
DVI-I, 2xRJ45 Ethernet, 2xUSB
Maße und Gewicht
Breite
126.39 mm
Länge
338.5 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..60 °C
Maße
Bruttogewicht
0.91 kg
Nettogewicht
0.91 kg
Systemarchitektur
Formfaktor
Full Size PICMG 1.3
CPU
CPU-Support-Typ
Core i5, Core i7
Socket
LGA1151
Chipsatz
Chipsatz
Intel Q170
Speicher
