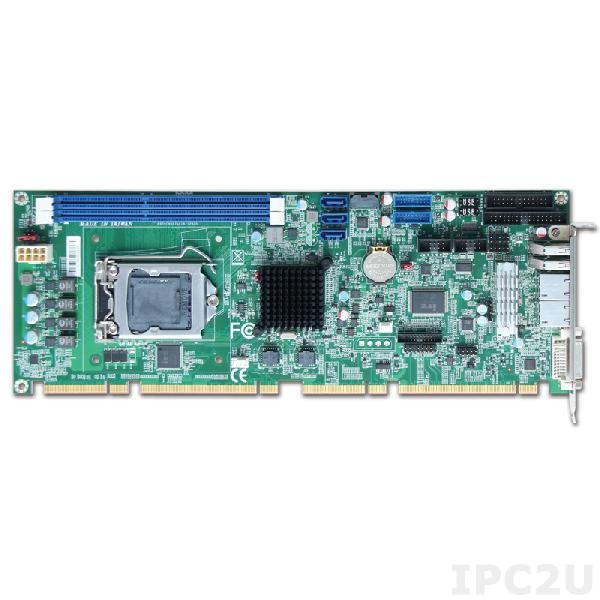

ROBO-8112VG2AR-Q87

ROBO-8112VG2AR-Q87

Portwell
ART. NR.:: 55665200
PICMG 1.3 Intel Core i5/i7 4th Gen. LGA1150 CPU Card, Intel Q87 Chipset, up to 16GB DDR3 RAM, DVI-I, optional HDMI, 2xGbit LAN, 6xUSB3.0, 8xUSB2.0, 2xCOM, LPT, 5xSATA3, FDD, iAMT 9.0
Preis auf Anfrage
Verfügbar
Verfügbar

Systemarchitektur
Formfaktor
Full Size PICMG 1.3
CPU
CPU-Support-Typ
Core i3, Core i5, Celeron, Core i7
Socket
LGA1150
Chipsatz
Chipsatz
Intel Q87
Speicher
Formfaktor
DDR3
Socket Typ
2xDIMM
Maximum Speicher
16 GB
Grafik
Grafikcontroller
In Chipset integriert
Schnitstellen
DVI-I
Ethernet
Controller Typ
Intel WGI217LM 10/100/1000 Mbps, Intel WGI210AT 10/100/1000 Mbps
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232
1
RS-232/422/485
1
USB gesamt
10
USB 2.0
4
USB v3.x
6
LPT
LPT
Schnittstelle
RAID Levels
1, 5, 10
Zusätzliche Funktionen
Watchdog-Timer-Typ
Software
Schnittstellen
Intern
3xSATA 3, 4xUSB 2.0, 34-pin FDD, 26-pin LPT, 10-pin RS-232, HDMI, 10-pin RS-232/422/485, 2x19-pin USB 3.0, 8-pin ATX, 10-pin KB/MS
Schnittstellen
DVI-I, 2xRJ45 Ethernet, 2xUSB
Maße und Gewicht
Breite
126.4 mm
Länge
338.5 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..60 °C
Maße
Bruttogewicht
1.3 kg
Nettogewicht
0.8 kg
