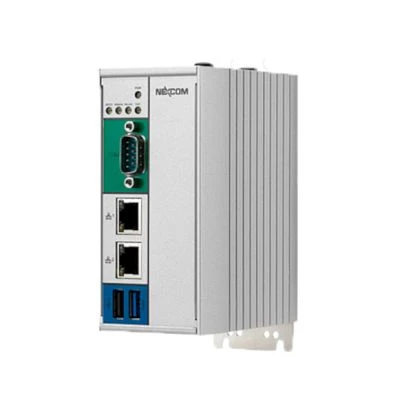

NIFE-104
NEXCOM
ART. NR.:: 56797900
Industrial Embedded System with Intel Atom E3826 1.46GHz, 2GB DDR3L RAM onboard, 16GB eMMC, HDMI, 2xGbit LAN, 1xCOM w/ 2.5kV isolation, 2xUSB, 2xMini-PCIe, 4xGPIO, 24V DC-In, -5..+55C operating temperature
Preis auf Anfrage
Verfügbar
Verfügbar
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall, Desktop, Einbau, Pole Mount
Typ
Lüfterlos
CPU
Installierter Prozessor
Intel Atom E3826
Maximale CPU-Frequenz
1.46 GHz
Speicher
Formfaktor
DDR3L
Standard Onboard Speicher
2 GB
Ethernet
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
1
RS-232/422/485
1
USB gesamt
2
USB 2.0
1
USB v3.x
1
Schnittstellen
Schnittstellen
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC Input
Systemleistung
Eingangsspannung DC
24..24 V
Maße und Gewicht
Breite
130 mm
Höhe
56.5 mm
Tiefe
100 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-5..50 °C
Maße
Bruttogewicht
2.5 kg
