Name: AIEdge-X80-PoE-NA8-S
Brand: NEXCOM
SKU: 80184600
Price: 12944.8 EUR
Availability: PreOrder

Home

Catalog

Industrie PCs

Embedded Edge PCs, Industrie Box PCs und Mini-PCs

Embedded PCs mit diskreter GPU und KI Accelerator

AIEdge-X80-PoE-NA8-S

NEXCOM

ART. NR.:: 80184600

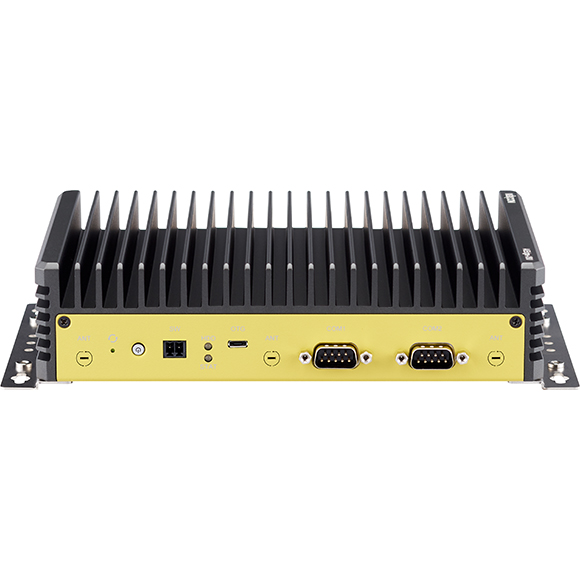

Fanless Edge AI System, NVIDIA Jetson Orin Nano 6-core SoC, NVIDIA Ampere 1024-core GPU, 8GB LPDDR5 RAM, 128GB NVME SSD, HDMI, 4xGbE PoE LAN, 2xCOM, 2xUSB 2.0, 2xUSB 3.2, 1xMicroUSB OTG, 1xFull-size MiniPCIe, 1xM.2 3042/3052 Key-B, 24VDC-in

Preis auf Anfrage

Aufbau

Gehäuse

Metallgehäuse mit Aluminium-Kühlkörper

Einbaumöglichkeit

Wall, Desktop

Typ

Lüfterlos

CPU

Installierter Prozessor

Nvidia Jetson Orin Nano (6-Core)

Socket

CPU onboard

Chipsatz

SoC

Speicher

Formfaktor

DDR5

Socket Typ

Verlötet

ECC

Standard Onboard Speicher

8 GB

Bauweise

Onboard fixiert

Grafik

Grafikcontroller

NVIDIA Ampere, 1024-cores, 32 Tensor Cores

Schnitstellen

HDMI

Ethernet

Ethernet gesamt

PoE 10/100/1000 Mbit/s

Wi-Fi

WLAN IEEE-Norm

Yes (Optional)

Schnittstellen Seriell / Parallel

COM gesamt

RS-232

RS-232/422/485

USB gesamt

USB 2.0

USB v3.x

Schnittstelle

M.2

Steckplätze

Gesamtanzahl

M.2

M.2 Formfaktor

2280 M, 3052 B, 3042 B

Mini-PCIe/Mini Card

Antennen Eigenschaften

Mobilfunk

4G (Optional), 5G (Optional)

Status LEDs / Schalter

LED

1xHDD LED, Power LED

Schalter

On/Off, 1xReset

Schnittstellen

2xDB9, HDMI, 4xRJ45 Ethernet, 4xUSB, DC input (terminal block), 1xMicro USB

Stromversorgung

Eingangsspannung DC

24..24 V

Netzteil

Unterstützte Stromversorgung

External power adapter AC/DC

Software

Betriebssystem installiert

NVIDIA Jetpack 6.2

Maße und Gewicht

Breite

240 mm

Höhe

54 mm

Tiefe

154 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-20..60 °C

Luftfeuchtigkeit

10-95%

Normen und Zertifikate

Zertifizierungen

CE, FCC Class A

EMI

EN 55032, EN 55035

Maße

Bruttogewicht

2.42 kg

Nettogewicht

2.03 kg

Dokumente

AIEdge-X80-NA-Datasheet-10022025.pdf
