ROBO-8112VG2AR

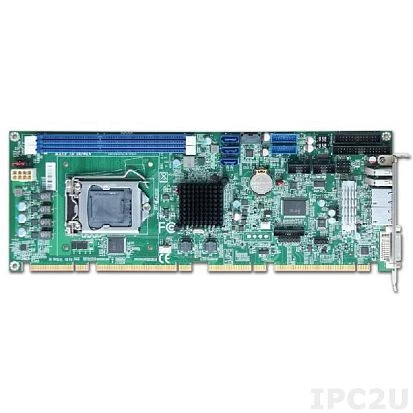

ROBO-8112VG2AR

Portwell
ART. NR.:: 55665100
PICMG 1.3 Intel Xeon E3 12xx v3 and Intel Core-i3 4th Gen. LGA1150 CPU Card, Intel C226 Chipset, up to 16GB ECC DDR3 RAM, DVI-I, optional HDMI, 2xGbit LAN, 6xUSB3.0, 8xUSB2.0, 2xCOM, LPT, 5xSATA3, FDD, iAMT 9.0
Preis auf Anfrage
Verfügbar
Verfügbar

Systemarchitektur
Formfaktor
Full Size PICMG 1.3
CPU
CPU-Support-Typ
Core i3, Xeon
Socket
LGA1150
Chipsatz
Chipsatz
Intel C226
Speicher
Formfaktor
DDR3
Socket Typ
2xDIMM
ECC
Yes
Maximum Speicher
16 GB
Grafik
Grafikcontroller
In Chipset integriert
Schnitstellen
DVI-I
Ethernet
Controller Typ
Intel WGI217LM 10/100/1000 Mbps, Intel WGI210AT 10/100/1000 Mbps
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232
1
RS-232/422/485
1
USB gesamt
10
USB 2.0
4
USB v3.x
6
LPT
LPT
Schnittstelle
RAID Levels
1, 5, 10
Zusätzliche Funktionen
Watchdog-Timer-Typ
Software
Schnittstellen
Intern
3xSATA 3, 4xUSB 2.0, 34-pin FDD, 26-pin LPT, 10-pin RS-232, HDMI, 10-pin RS-232/422/485, 2x19-pin USB 3.0, 8-pin ATX, 10-pin KB/MS
Schnittstellen
DVI-I, 2xRJ45 Ethernet, 2xUSB
Maße und Gewicht
Breite
126.4 mm
Länge
338.5 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..60 °C
Maße
Bruttogewicht
1.3 kg
Nettogewicht
0.8 kg
