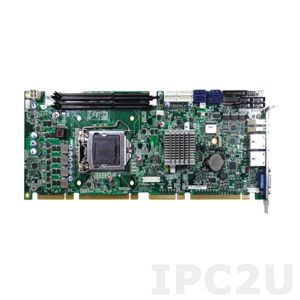

PEAK-886VL2

PEAK-886VL2

NEXCOM
ART. NR.:: 66264700
PICMG 1.3 Intel 3rd gen. Core i7/ i5/ i3 CPU Card, Intel Q77 Chipset, up to 16GB DDR3 RAM, VGA, 2xGbit LAN, 8xUSB, 4xSATA3, 2xSATA2
Abgekündigt

Systemarchitektur
Formfaktor
Full Size PICMG 1.3
CPU
CPU-Support-Typ
Core i3, Core i5, Core i7, Pentium
Socket
LGA1155
Chipsatz
Chipsatz
Intel Q77
Speicher
Formfaktor
DDR3
Socket Typ
2xDIMM
Maximum Speicher
16 GB
Grafik
Grafikcontroller
In Chipset integriert
Schnitstellen
VGA
Ethernet
Controller Typ
Intel 82574L 10/100/1000 Mbps, Intel 82579LM 10/100/1000Mbps
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
4
RS-232
3
RS-232/422/485
1
USB gesamt
4
USB 2.0
2
USB v3.x
2
LPT
LPT
Schnittstelle
RAID Levels
1, 5, 10
Schnittstellen
Intern
IRDA, 4xCOM, 26-pin LPT, 4-pin ATX, 2x6-pin USB, 4xSATA, 19-pin USB 3.0
Schnittstellen
DB15 VGA, 2xRJ45 Ethernet, 2xUSB
Maße und Gewicht
Breite
126 mm
Länge
338 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..60 °C
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Maße
Bruttogewicht
0.83 kg
Nettogewicht
1.2 kg
Systemarchitektur
Formfaktor
Full Size PICMG 1.3
CPU
CPU-Support-Typ
Core i3, Core i5, Core i7, Pentium
Socket
LGA1155
Chipsatz
Chipsatz
Intel Q77
Speicher
Formfaktor
DDR3
Socket Typ
2xDIMM
Maximum Speicher
16 GB
Grafik
Grafikcontroller
In Chipset integriert
Schnitstellen
VGA
Ethernet
Controller Typ
Intel 82574L 10/100/1000 Mbps, Intel 82579LM 10/100/1000Mbps
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
4
RS-232
3
RS-232/422/485
1
USB gesamt
4
USB 2.0
2
USB v3.x
2
LPT
LPT
Schnittstelle
RAID Levels
1, 5, 10
Schnittstellen
Intern
IRDA, 4xCOM, 26-pin LPT, 4-pin ATX, 2x6-pin USB, 4xSATA, 19-pin USB 3.0
Schnittstellen
DB15 VGA, 2xRJ45 Ethernet, 2xUSB
Maße und Gewicht
Breite
126 mm
Länge
338 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..60 °C
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Maße
Bruttogewicht
0.83 kg
Nettogewicht
1.2 kg
Systemarchitektur
Formfaktor
Full Size PICMG 1.3
CPU
CPU-Support-Typ
Core i3, Core i5, Core i7, Pentium
Socket
LGA1155
Chipsatz
Chipsatz
Intel Q77
Speicher
Formfaktor
DDR3
Socket Typ
2xDIMM
Maximum Speicher
16 GB
Grafik
Grafikcontroller
In Chipset integriert
Schnitstellen
VGA
Ethernet
Controller Typ
Intel 82574L 10/100/1000 Mbps, Intel 82579LM 10/100/1000Mbps
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
4
RS-232
3
RS-232/422/485
1
USB gesamt
4
USB 2.0
2
USB v3.x
2
LPT
LPT
Schnittstelle
RAID Levels
1, 5, 10
Schnittstellen
Intern
IRDA, 4xCOM, 26-pin LPT, 4-pin ATX, 2x6-pin USB, 4xSATA, 19-pin USB 3.0
Schnittstellen
DB15 VGA, 2xRJ45 Ethernet, 2xUSB
Maße und Gewicht
Breite
126 mm
Länge
338 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..60 °C
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Maße
Bruttogewicht
0.83 kg
Nettogewicht
1.2 kg
Systemarchitektur
Formfaktor
Full Size PICMG 1.3
CPU
CPU-Support-Typ
Core i3, Core i5, Core i7, Pentium
Socket
LGA1155
Chipsatz
Chipsatz
Intel Q77
Speicher
Formfaktor
DDR3
Socket Typ
2xDIMM
Maximum Speicher
16 GB
Grafik
Grafikcontroller
In Chipset integriert
Schnitstellen
VGA
Ethernet
Controller Typ
Intel 82574L 10/100/1000 Mbps, Intel 82579LM 10/100/1000Mbps
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
4
RS-232
3
RS-232/422/485
1
USB gesamt
4
USB 2.0
2
USB v3.x
2
LPT
LPT
Schnittstelle
RAID Levels
1, 5, 10
Schnittstellen
Intern
IRDA, 4xCOM, 26-pin LPT, 4-pin ATX, 2x6-pin USB, 4xSATA, 19-pin USB 3.0
Schnittstellen
DB15 VGA, 2xRJ45 Ethernet, 2xUSB
Maße und Gewicht
Breite
126 mm
Länge
338 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..60 °C
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Maße
Bruttogewicht
0.83 kg
Nettogewicht
1.2 kg

Dokumente
Datasheet_PEAK_886VL2__23561988.pdf Datasheet_PEAK_886__23047465.pdf PEAK_886_User_Manual__23047335.pdf
Dokumente
Datasheet_PEAK_886VL2__23561988.pdf Datasheet_PEAK_886__23047465.pdf PEAK_886_User_Manual__23047335.pdf
Dokumente
Datasheet_PEAK_886VL2__23561988.pdf Datasheet_PEAK_886__23047465.pdf PEAK_886_User_Manual__23047335.pdf
Dokumente
Datasheet_PEAK_886VL2__23561988.pdf Datasheet_PEAK_886__23047465.pdf PEAK_886_User_Manual__23047335.pdf
