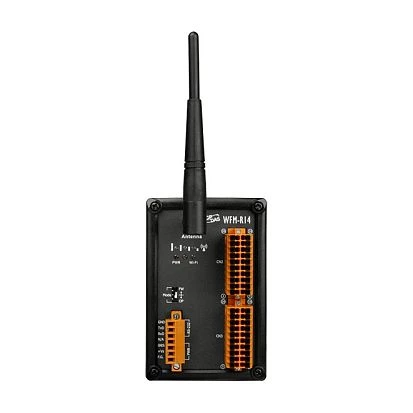

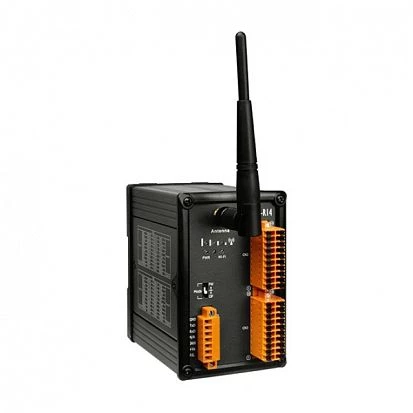

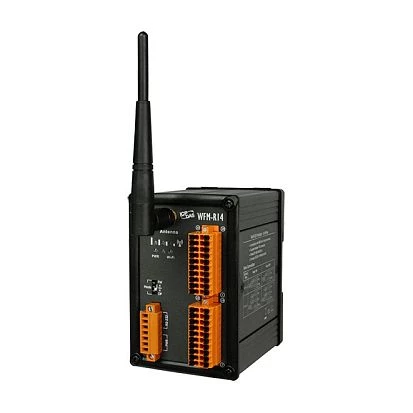

WFM-R14

ICP DAS
ART. NR.:: 07051300
2-channel Form A Power Relay Output and 12-channel Form C Power Relay Output Wi-Fi I/O Module with Metal Case (RoHS)
Preis auf Anfrage
Verfügbar
Verfügbar
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
DIN-Rail mount
Schnittstellen Seriell / Parallel
RS-232
1
Wi-Fi
WLAN IEEE-Norm
802.11b/g
WLAN Anzahl
1
Netzwerk
Industrieprotokolle
Modbus TCP server, Modbus UDP slave
Digital Ausgang
Gesamtanzahl
14
Typ
Electromagnetic relay
Relais (Form A)
2
Max. Strom für Relaiskontakte
5A@250V AC, 5A@30V DC
Relais (Form C)
12
Max. Strom für Relaiskontakte
6A@250V AC, 6A@30V DC
Schnittstellen
Schnittstellen
Screw Terminal
Systemleistung
Eingangsspannung DC
10..30 V
Maße und Gewicht
Breite
33 mm
Tiefe
95 mm
Höhe
120 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-25..75 °C
Maße
Bruttogewicht
0.5 kg
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
DIN-Rail mount
Schnittstellen Seriell / Parallel
RS-232
1
Wi-Fi
WLAN IEEE-Norm
802.11b/g
WLAN Anzahl
1
Netzwerk
Industrieprotokolle
Modbus TCP server, Modbus UDP slave
Digital Ausgang
Gesamtanzahl
14
Typ
Electromagnetic relay
Relais (Form A)
2
Max. Strom für Relaiskontakte
5A@250V AC, 5A@30V DC
Relais (Form C)
12
Max. Strom für Relaiskontakte
6A@250V AC, 6A@30V DC
Schnittstellen
Schnittstellen
Screw Terminal
Systemleistung
Eingangsspannung DC
10..30 V
Maße und Gewicht
Breite
33 mm
Tiefe
95 mm
Höhe
120 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-25..75 °C
Maße
Bruttogewicht
0.5 kg
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
DIN-Rail mount
Schnittstellen Seriell / Parallel
RS-232
1
Wi-Fi
WLAN IEEE-Norm
802.11b/g
WLAN Anzahl
1
Netzwerk
Industrieprotokolle
Modbus TCP server, Modbus UDP slave
Digital Ausgang
Gesamtanzahl
14
Typ
Electromagnetic relay
Relais (Form A)
2
Max. Strom für Relaiskontakte
5A@250V AC, 5A@30V DC
Relais (Form C)
12
Max. Strom für Relaiskontakte
6A@250V AC, 6A@30V DC
Schnittstellen
Schnittstellen
Screw Terminal
Systemleistung
Eingangsspannung DC
10..30 V
Maße und Gewicht
Breite
33 mm
Tiefe
95 mm
Höhe
120 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-25..75 °C
Maße
Bruttogewicht
0.5 kg
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
DIN-Rail mount
Schnittstellen Seriell / Parallel
RS-232
1
Wi-Fi
WLAN IEEE-Norm
802.11b/g
WLAN Anzahl
1
Netzwerk
Industrieprotokolle
Modbus TCP server, Modbus UDP slave
Digital Ausgang
Gesamtanzahl
14
Typ
Electromagnetic relay
Relais (Form A)
2
Max. Strom für Relaiskontakte
5A@250V AC, 5A@30V DC
Relais (Form C)
12
Max. Strom für Relaiskontakte
6A@250V AC, 6A@30V DC
Schnittstellen
Schnittstellen
Screw Terminal
Systemleistung
Eingangsspannung DC
10..30 V
Maße und Gewicht
Breite
33 mm
Tiefe
95 mm
Höhe
120 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-25..75 °C
Maße
Bruttogewicht
0.5 kg
