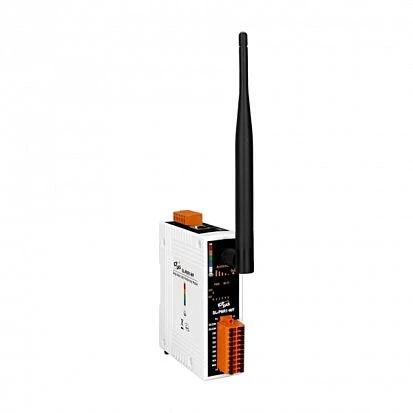

SL-P6R1-WF
ICP DAS
ART. NR.:: 08110200
I/O Module with 6-channel Digital Input DC and 1 channel Relay Output with RS-485/Ethernet/Wi-Fi Interfaces and PoE for DC Stack Lights
Preis auf Anfrage
Verfügbar auf Bestellung
Verfügbar auf Bestellung
Aufbau
Gehäuse
Kunststoffgehäuse
Einbaumöglichkeit
DIN-Rail mount
Ethernet
Ethernet gesamt
1
10/100 Mbit/s
1
Schnittstellen Seriell / Parallel
COM gesamt
1
RS-485
1
Wi-Fi
WLAN IEEE-Norm
802.11b/g/n
Zusätzliche Funktionen
Watchdog-Timer-Typ
Hardware, Software
Netzwerk
Industrieprotokolle
Modbus TCP server, Modbus RTU slave, MQTT client
Digital Eingang
Gesamtanzahl
6
Typ
Wet contact
Pegel der Logik "0"
0~4 V
Pegel der Logik "1"
10~50 V
Sink/Source
Stromziehend (Sink), stromliefernd (Source)
Isolierter Digital-Eingang
3750 V
Digital Ausgang
Gesamtanzahl
1
Max. Strom für Relaiskontakte
5A@250V AC, 5A@30V DC
Systemleistung
Eingangsspannung DC
10..48 V
Power over Ethernet (PoE)
PoE
Maße und Gewicht
Breite
33 mm
Tiefe
108 mm
Höhe
127 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-25..75 °C
Normen und Zertifikate
EMS
IEC 61000-4-2, IEC 61000-4-4
Maße
Bruttogewicht
0.35 kg
