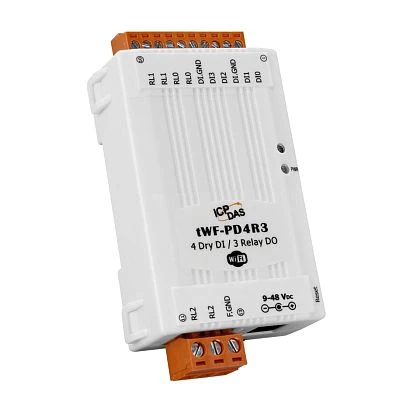

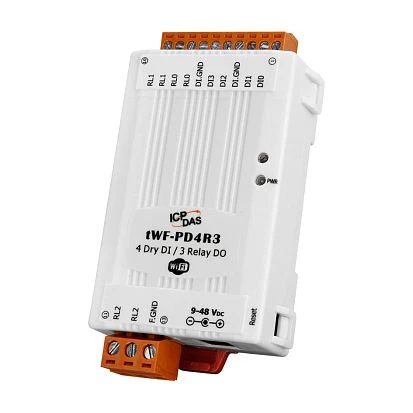

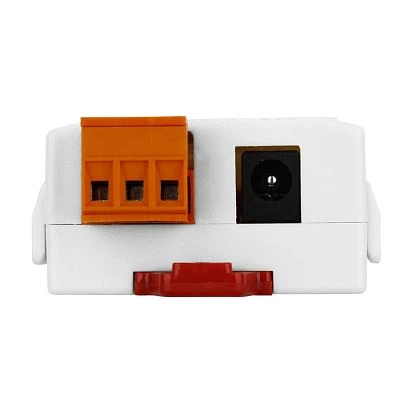

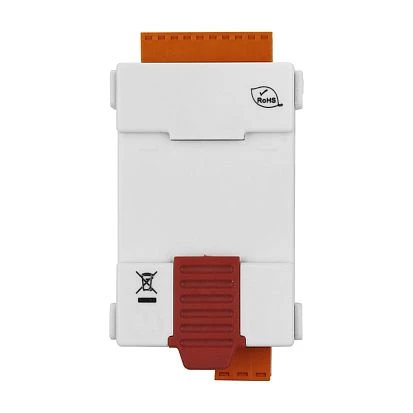

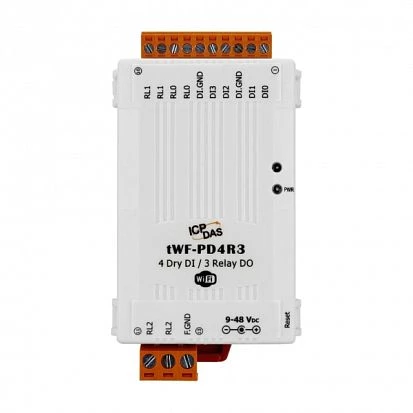

tWF-PD4R3
ICP DAS
ART. NR.:: 08334500
4-channel Isolated Digital Input and 3-channel Relay Output Module Wi-Fi 2.4G IEEE 802.11 b/g/n (RoHS)
Preis auf Anfrage
Verfügbar
Verfügbar
Aufbau
Gehäuse
Kunststoffgehäuse
Einbaumöglichkeit
DIN-Rail mount
Wi-Fi
WLAN IEEE-Norm
802.11b/g/n
WLAN Anzahl
1
Netzwerk
Industrieprotokolle
Modbus TCP server
Digital Eingang
Gesamtanzahl
4
Typ
Dry contact
Sink/Source
Stromziehend (Sink)
Isolierter Digital-Eingang
3750 V
Zähler
20Hz, 32 bit
Digital Ausgang
Gesamtanzahl
3
Typ
Electromagnetic relay
Relais (Form A)
3
Max. Strom für Relaiskontakte
5A@250V AC, 5A@30V DC
Systemleistung
Eingangsspannung DC
9..48 V
Maße und Gewicht
Breite
52 mm
Tiefe
27 mm
Höhe
97 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-20..75 °C
Normen und Zertifikate
EMS
IEC 61000-4-2, IEC 61000-4-4
Maße
Bruttogewicht
0.5 kg
