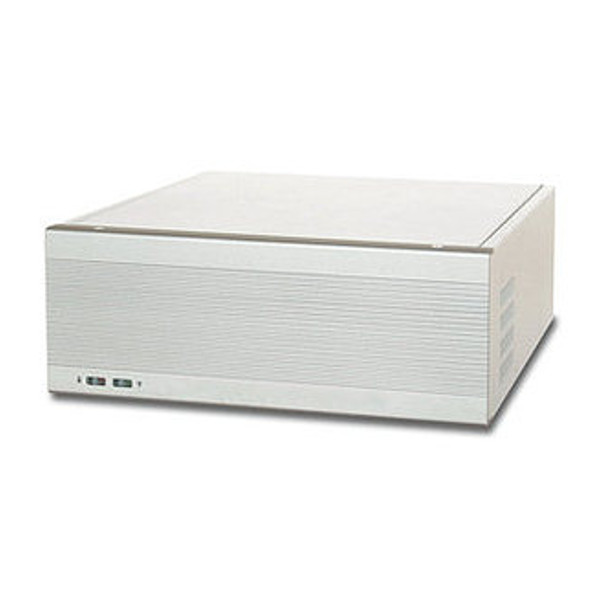

WEBS-8015D

WEBS-8015D

Portwell
ART. NR.:: 56559400
Embedded Fanless System with Intel Core i3/i5/i7 in LGA1150, Up to 8GB DDR3 1333/1600 SO-DIMM, VGA, DP, HDMI, 1x 3.5" SATA HDD/SSD, 2xGb LAN, 5xCOM, 4xUSB 3.0, Audio, Mini-PCIe, 1x PCIe x16, on board 8bit GPIO
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
DIN-Rail mount, Wall, Wall VESA 100, Wall VESA 75
CPU
Socket
LGA1150
CPU-Support-Typ
Core i3, Core i5, Core i7
Speicher
Formfaktor
DDR3, DDR3L, SDRAM
Maximum Speicher
8 GB
Ethernet
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
1
RS-232/422/485
1
USB gesamt
4
USB v3.x
4
Steckplätze
PCI Express x16
1
Mini-PCIe/Mini Card
1
Schnittstellen
Schnittstellen
DB15 VGA, HDMI, 2xRJ45, Mic In, Line Out, DC Input, Display port
Maße und Gewicht
Breite
222 mm
Höhe
251 mm
Tiefe
86.3 mm
Betriebsbedingungen
Maximale Betriebstemperatur
0..50 °C
Maße
Bruttogewicht
2 kg
Nettogewicht
1.6 kg
