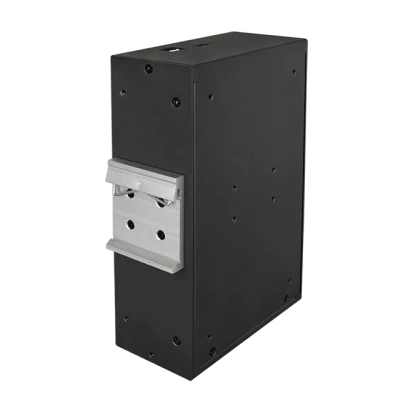

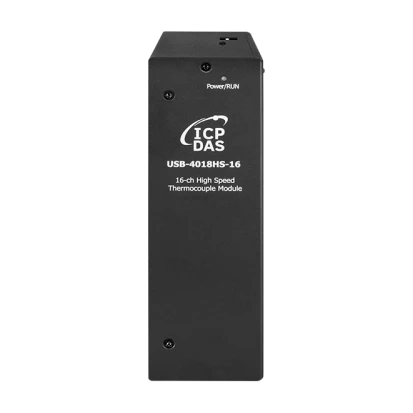

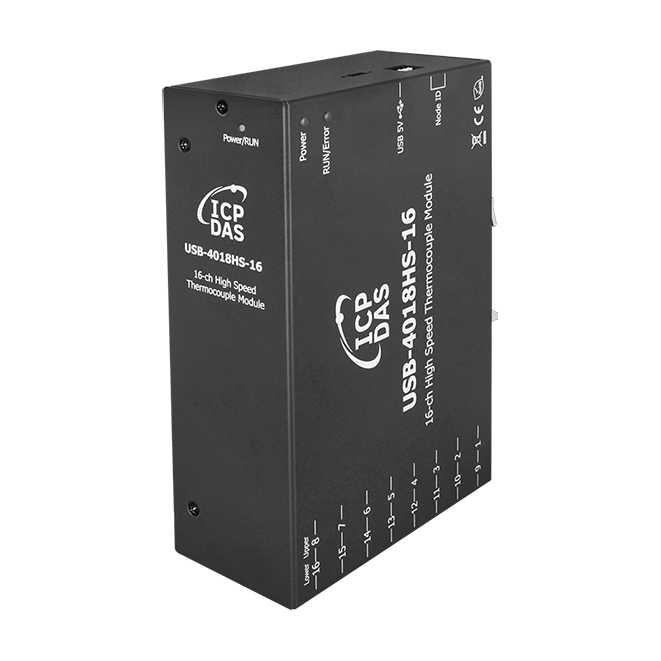

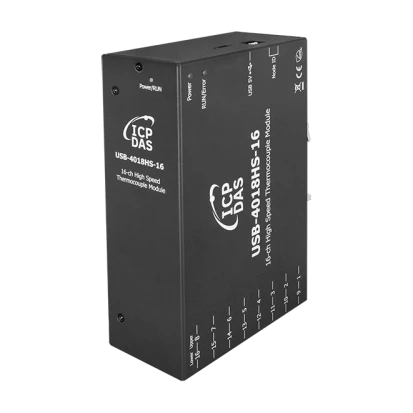

USB-4018HS-16
ICP DAS
ART. NR.:: 11073200
16-Channel High Speed Thermocouple Measurement USB I/O Module with 3000VDC intramodule isolation (RoHS), 5VDC-in
Preis auf Anfrage
Verfügbar
Verfügbar
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
DIN-Rail mount
Schnittstellen Seriell / Parallel
USB gesamt
1
Analog Eingang
Anzahl
16
Anzahl der Bits
16 Bit
Abtastfrequenz
100 Hz
Single-Ended
16
Differential
8
Thermoelement
J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, L: -200...+800 °С, M: -200...+100 °С, L(DIN43710): -200...+900 °С
Systemleistung
Eingangsspannung DC
5..5 V
Maße und Gewicht
Breite
113 mm
Tiefe
169 mm
Höhe
54 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-25..75 °C
Luftfeuchtigkeit
10-95%
Maße
Bruttogewicht
0.3 kg
