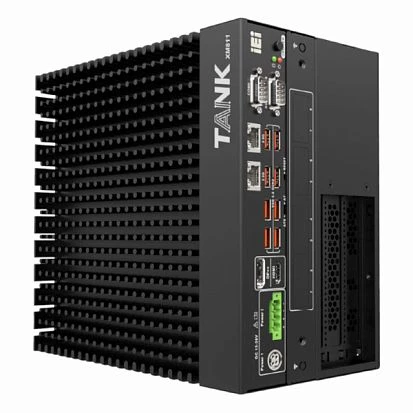

TANK-XM811-Series

IEI
ART. NR.:: 57501200
Rugged Embedded System, Intel 12th Gen Core CPU 35/65W TDP, Intel R680E, up to 64GB DDR4 RAM, 1xHDMI, 1xDP++, 2x2.5Gbit LAN, 2.5"SATA HDD/SSD bay, 6xCOM, 8xUSB, 1x2280 M-key, 1x2230 A-key, 12..28V DC, -20..60C
Preis auf Anfrage
Verfügbar auf Bestellung
Verfügbar auf Bestellung
System configuration
Price inkl. MwSt.
Preis auf Anfrage
Preis auf Anfrage
System configuration
Price inkl. MwSt.
Preis auf Anfrage
Preis auf Anfrage
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall
Typ
Lüfterlos
CPU
CPU-Support-Typ
Core i5, Core i7, Core i9
Chipsatz
Chipsatz
Intel R680E
Speicher
Formfaktor
DDR4
Standard Onboard Speicher
8 GB
Maximum Speicher
64 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
Controller Typ
Intel i225V
Ethernet gesamt
2
2,5 Gbit/s
2
Schnittstellen Seriell / Parallel
RS-232
4
RS-232/422/485
2
USB gesamt
8
USB v3.x
8
Digital Eingang / Ausgang
Gesamtanzahl
12
Steckplätze
Gesamtanzahl
2
M.2
2
Zusätzliche Funktionen
Watchdog-Timer-Typ
Software
Schnittstellen
Schnittstellen
HDMI, 2xRJ45, 8xUSB, DB15 GPIO, 1xDP
Systemleistung
Eingangsspannung DC
12..28 V
Software
Betriebssystemkompatibilität
Linux OS, Windows IoT Enterprise 10, Windows 11
Maße und Gewicht
Breite
230.6 mm
Höhe
76.2 mm
Tiefe
256.04 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-20..60 °C
Vibration
MIL-STD-810G 514.6C-1 (with SSD)
Schock
Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Normen und Zertifikate
Zertifizierungen
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Maße
Bruttogewicht
3.7 kg
Nettogewicht
3.33 kg
