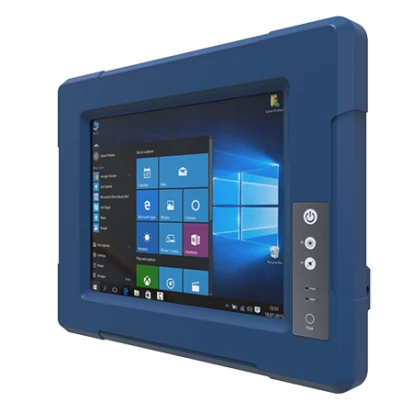

R10IAD3S-VMT2

R10IAD3S-VMT2

ART. NR.:: 57915200

10.4" Vehicle Panel PC, G-WIN VM Series, IP65 Front, 1024x768, 350cd/m2 (HB Opt.), Intel Core i5-1235U 4.4GHz CPU, 8GB DDR5 RAM, 128GB NVME SSD, HDMI Opt., 2x2.5GbE LAN, 2xCOM, 2xUSB 3.2, 1xM.2 2230 Key-E, 1xM.2 2280 Key-M, 9-36VDC-in, -10..55C

Preis auf Anfrage

Aufbau

Gehäuse

Aluminiumgehäuse

Einbaumöglichkeit

Wall VESA 75, Yoke mounting

Schutzlevel Frontseite (Panel)

IP65

Typ

Lüfterlos

Display

Bildschirmtyp

LCD TFT

Diagonale

10.4 "

Maximale Auflösung

1024x768 Dots

Helligkeit

350 Cd/m2

Kontrastverhältnis

1000~1

CPU

CPU Generation/Familie

Elkhart Lake, Alder Lake

Installierter Prozessor

Celeron N6211, Intel Core i5-1235U

Socket

CPU onboard

Maximale CPU-Frequenz

4.4 GHz

Chipsatz

Chipsatz

Intel SoC

Speicher

Formfaktor

DDR5

Socket Typ

1xSODIMM

ECC

No

Standard Onboard Speicher

8 GB

Maximum Speicher

32 GB

Bauweise

herausnehmbar

Grafik

Grafikcontroller

integriert im Prozessor, Intel Iris Xe Graphics

Ethernet

Ethernet gesamt

2

2,5 Gbit/s

2

Schnittstellen Seriell / Parallel

COM gesamt

2

RS-232

1

RS-232/422/485

1

USB gesamt

2

USB v3.x

2

Schnittstelle

M.2

1

Einbauschacht

Massenspeicher Typ

SSD

Massenspeicher-Formfaktor

M.2

Massenspeicher-Schnittstelle

PCIe x4

Massenspeicher 1. Kapazität

128 GB

Steckplätze

Gesamtanzahl

2

M.2

2

M.2 Formfaktor

2280 M, 2230 E

Status LEDs / Schalter

LED

Power LED

Schalter

On/Off, Tastenfeld

Schnittstellen

Schnittstellen

2xDB9, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)

Stromversorgung

Eingangsspannung DC

9..36 V

Netzteil

Unterstützte Stromversorgung

External power adapter AC/DC

Software

Betriebssystemkompatibilität

Ubuntu, Windows 11

Maße und Gewicht

Breite

315 mm

Höhe

250 mm

Tiefe

67 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-10..55 °C

Luftfeuchtigkeit

10-90%

Normen und Zertifikate

Zertifizierungen

CE, FCC

MIL-STD-810

MIL-STD-810G Test Method 514.6 Vibration

Bahnfahrzeuge

EN 50155

Maße

Bruttogewicht

3.3 kg

Nettogewicht

2.9 kg

Dokumente

R10IAD3S-VMT2-Datasheet.pdf
