Industrie Panel PCs

Panel-PC Transport

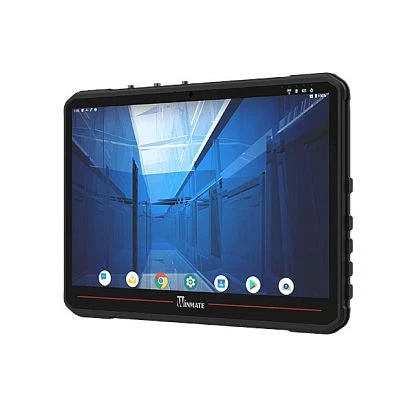

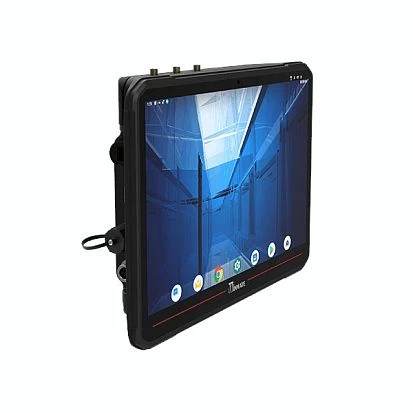

FM14Q-V

FM14Q-V

ART. NR.:: 10080600

14" Vehicle Fanless Panel PC, IP65, 1920x1080, 700cd/m2, PCAP Touch, Qualcomm Snapdragon 660 SoC, 3GB RAM, 32GB eMMC, 1xGbE LAN, 1xUSB 3.0 Type-C, 1xUSB 2.0, 2xCOM, 1xSIM, 1xMicroSD, Audio, WiFi/BT, 2MP Cam., Android 9, 10-60VDC-in w/ PSU, -30..50C

Preis auf Anfrage

Aufbau

Gehäuse

Magnesiumlegierung

Einbaumöglichkeit

Wall VESA 100, Wall VESA 75

Schutzlevel Gehäuse

IP65

Typ

Lüfterlos

Display

Bildschirmtyp

LCD TFT

Diagonale

14 "

Maximale Auflösung

1920x1080 Dots

Seitenverhältnis

16:9

Helligkeit

700 Cd/m2

Kontrastverhältnis

800~1

Touch Screen

Touch Screen Art

kapazitiv

CPU

Installierter Prozessor

Qualcomm Snapdragon 660

Socket

CPU onboard

Maximale CPU-Frequenz

2.2 GHz

Chipsatz

Chipsatz

SoC

Speicher

Socket Typ

Verlötet

ECC

No

Standard Onboard Speicher

3 GB

Bauweise

Onboard fixiert

Grafik

Grafikcontroller

integriert im Prozessor

Ethernet

Ethernet gesamt

1

10/100/1000 Mbit/s

1

Wi-Fi

WLAN IEEE-Norm

Yes

Schnittstellen Seriell / Parallel

COM gesamt

2

RS-232/422/485

2

USB gesamt

2

USB 2.0

1

USB v3.x

1

Digital Eingang / Ausgang

Gesamtanzahl

4

Schnittstelle

MicroSD Speicherkarten-Slots

1

Einbauschacht

Massenspeicher Typ

SSD

Massenspeicher-Formfaktor

eMMC

Massenspeicher 1. Kapazität

32 GB

Steckplätze

SIM-Karten Steckplätze

Yes, 2, Nano SIM

Antennen Eigenschaften

Mobilfunk

4G (Optional)

Zusätzliche Funktionen

GPS

Optional

Status LEDs / Schalter

LED

Batterie Status, WLAN LED

Schalter

On/Off, Funktionstasten

Schnittstellen

Schnittstellen

2xDB9, RJ45 Ethernet, 1xUSB, DC Input, SIM Card Slot, SD card slot, USB type C

Stromversorgung

Eingangsspannung DC

10..60 V

Netzteil

Art der Spannungsversorgung

External power adapter AC/DC

Ausgangsleistung

84 W

Software

Betriebssystem installiert

Android

Maße und Gewicht

Breite

307 mm

Höhe

225 mm

Tiefe

57 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-30..60 °C

Luftfeuchtigkeit

5-95%

Normen und Zertifikate

Zertifizierungen

CE/FCC

EMS

EN 61000-4-2

MIL-STD-810

MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration

Internetsicherheit

UL 60950-1, EN 60950-1

Vandalismusresistenz

EN 62262, IK07 level

Maße

Bruttogewicht

3.2 kg

Nettogewicht

2.5 kg

Dokumente

FM14Q-V-Datasheet.pdf
