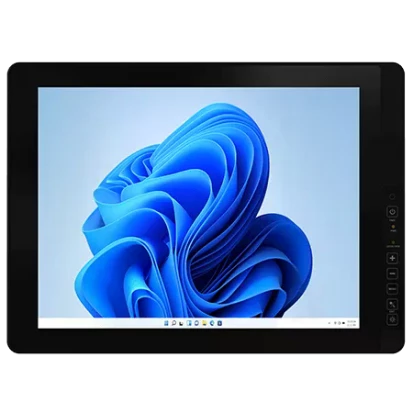

R15IAN3S-VMC3-PHB

R15IAN3S-VMC3-PHB

ART. NR.:: 80274100

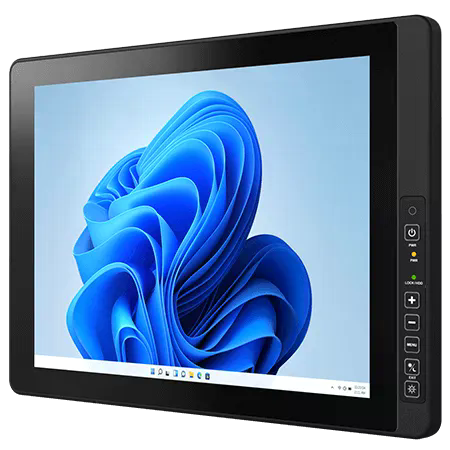

15" Fanless Vehicle Panel PC, G-WIN Series, IP65 Front, 1024x768, 1000 cd/m2, PCAP Touch, Intel N100 CPU, 8GB DDR5 RAM, 128GB NVMe SSD, HDMI, 2x2.5GbE LAN, 2xCOM, 2xUSB 3.2, 1xUSB-C 3.2 DP alt., 1xM.2 2230 Key-E, 9-36VDC-in

Preis auf Anfrage

Aufbau

Gehäuse

Aluminiumgehäuse

Einbaumöglichkeit

Wall VESA 100, Yoke mounting

Schutzlevel Frontseite (Panel)

IP65

Typ

Lüfterlos

Display

Bildschirmtyp

LCD TFT

Diagonale

15 "

Maximale Auflösung

1024x768 Dots

Seitenverhältnis

4:3

Helligkeit

1000 Cd/m2

Kontrastverhältnis

2000~1

Touch Screen

Touch Screen Art

kapazitiv

CPU

CPU Generation/Familie

Twin Lake

Installierter Prozessor

Intel N150

Socket

FCBGA1264

Maximale CPU-Frequenz

3.6 GHz

Chipsatz

Chipsatz

Intel SoC

Speicher

Formfaktor

DDR5

Socket Typ

Verlötet

ECC

No

Standard Onboard Speicher

8 GB

Maximum Speicher

16 GB

Bauweise

Onboard fixiert

Grafik

Grafikcontroller

integriert im Prozessor

Ethernet

Ethernet gesamt

2

2,5 Gbit/s

2

Wi-Fi

WLAN IEEE-Norm

Yes (Optional)

Schnittstellen Seriell / Parallel

COM gesamt

2

RS-232

1

RS-232/422/485

1

USB gesamt

3

USB v3.x

3

Schnittstelle

M.2

1

Einbauschacht

Massenspeicher Typ

SSD

Massenspeicher-Formfaktor

M.2

Massenspeicher-Schnittstelle

PCIe x4

Massenspeicher 1. Kapazität

128 GB

Steckplätze

Gesamtanzahl

2

M.2

2

M.2 Formfaktor

2280 M, 2230 E

Status LEDs / Schalter

LED

Power LED, SSD LED

Schalter

On/Off, Kontrolltasten, Funktionstasten, Lautstärketasten

Schnittstellen

Schnittstellen

2xDB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block), USB type C

Stromversorgung

Eingangsspannung DC

9..36 V

Netzteil

Unterstützte Stromversorgung

External power adapter AC/DC

Software

Betriebssystemkompatibilität

Windows 11, Windows 11 IoT Enterprise, Ubuntu 24.04

Maße und Gewicht

Breite

379.4 mm

Höhe

278.4 mm

Tiefe

58 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-10..55 °C

Luftfeuchtigkeit

10-90%

Normen und Zertifikate

Zertifizierungen

CE/FCC

MIL-STD-810

MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock

Maße

Bruttogewicht

4.8 kg

Nettogewicht

3.8 kg

Dokumente

R15IAN3S-VMC3-PHB-Datasheet.pdf
