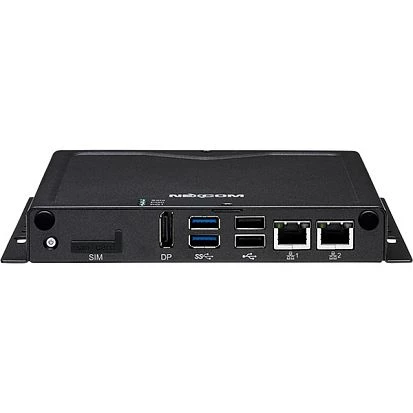

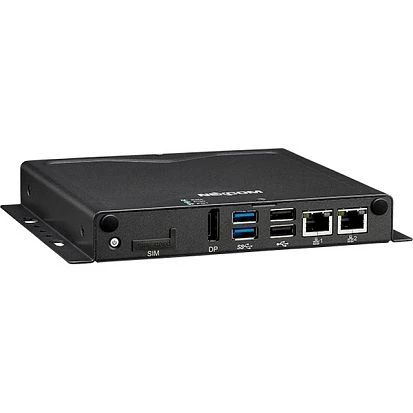

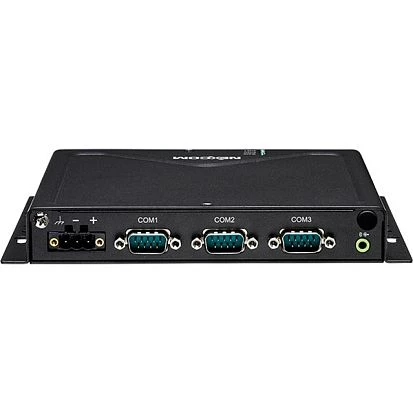

NISE-51

NISE-51

NEXCOM
ART. NR.:: 08505600
Fanless Embedded System, Intel Celeron N3350 2.4GHz, DDR3L, 16GB eMMC on-board, HDMI, 2xGbit LAN, 2x RS232, 1x RS422/485, 4xUSB2.0, 3x Mini-PCIe, 24V DC-In, without Power Adapter
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Metallgehäuse mit Aluminium-Kühlkörper
Einbaumöglichkeit
Wall, Desktop, Einbau
Typ
Lüfterlos
CPU
Installierter Prozessor
Intel Celeron N3350
Maximale CPU-Frequenz
2.4 GHz
Speicher
Formfaktor
DDR3L
Socket Typ
1xSODIMM
ECC
No
Maximum Speicher
8 GB
Grafik
Grafikcontroller
integriert im Prozessor
Ethernet
Controller Typ
Intel i210-AT
Ethernet gesamt
2
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
4
RS-232
3
RS-422/485
1
USB gesamt
4
USB 2.0
2
USB v3.x
2
Digital Eingang / Ausgang
GPIO
4xDigital In / 4xDigital Out
Audio
Audio Controller
Intel HD Audio
Einbauschacht
Massenspeicher Typ
SSD
Massenspeicher 1. Kapazität
16 GB
Steckplätze
Gesamtanzahl
3
M.2
2
Mini-PCIe/Mini Card
1
SIM-Karten Steckplätze
1
Schnittstellen
Schnittstellen
3xDB9, 2xRJ45, 4xUSB, Line Out, DC Input, Display port, SIM Card Slot
Stromversorgung
Eingangsspannung DC
24..24 V
Netzteil
Art der Spannungsversorgung
External power adapter AC/DC
Ausgangsleistung
60 W
Software
Betriebssystemkompatibilität
Windows 10 IoT Enterprise, Linux kernel 4.x
Maße und Gewicht
Breite
162 mm
Höhe
26 mm
Tiefe
150 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-5..55 °C
Vibration
2Grms @ 5~500 Hz
Schock
50G
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-64
Maße
Bruttogewicht
1.4 kg
Nettogewicht
0.85 kg

Dokumente
NISE-51-Datasheet-07172023.pdf NISE-51-User-Manual-August-2021.pdf
