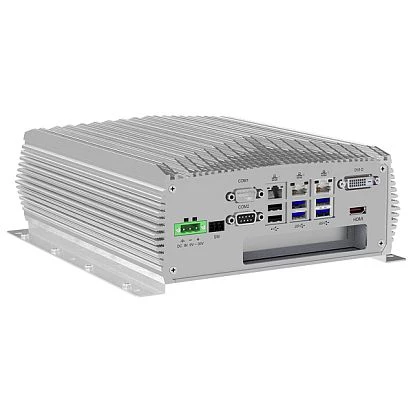

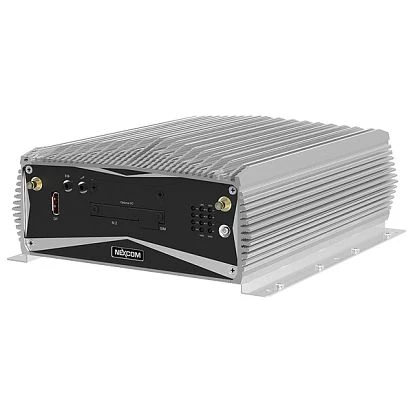

NISE-3800E-H110-Skylake

NISE-3800E-H110-Skylake

ART. NR.:: 56385500

Fanless Box PC NISE3800E-H110, Support 6th Skylake Intel Core-i7/i5/i3 CPUs, H110 Chipset, up to 16GB DDR4 RAM, DVI-D, HDMI, 2xGbit LAN, 2xUSB 2.0,4xUSB 3.0, 2xCOM, Audio, 2.5" SATA HDD Bay, 2xMini-PCIe,1xPCIe x4, 9..30V DC-In

Preis auf Anfrage

CPU

CPU Generation/Familie

Skylake, Kaby Lake

CPU-Support-Typ

Core i3, Core i5, Celeron, Core i7, Pentium

Chipsatz

Chipsatz

Intel H110

Speicher

Formfaktor

DDR4

Socket Typ

2xSODIMM

Maximum Speicher

32 GB

Ethernet

Ethernet gesamt

2

10/100/1000 Mbit/s

2

Schnittstellen Seriell / Parallel

COM gesamt

2

USB gesamt

6

USB 2.0

2

USB v3.x

4

Laufwerksschächte

2.5" intern

1

Steckplätze

PCI Express x4

1

Mini-PCIe/Mini Card

2

Schnittstellen

Schnittstellen

2xDB9, DVI-D, HDMI, 2xRJ45 Ethernet, 6xUSB, Audio, DC Input

Stromversorgung

Eingangsspannung DC

9..30 V

Maße und Gewicht

Breite

215 mm

Höhe

272 mm

Tiefe

93 mm

Maße

Bruttogewicht

5.9 kg

Nettogewicht

4.5 kg

CPU

CPU Generation/Familie

Skylake, Kaby Lake

CPU-Support-Typ

Core i3, Core i5, Celeron, Core i7, Pentium

Chipsatz

Chipsatz

Intel H110

Speicher

Formfaktor

DDR4

Socket Typ

2xSODIMM

Maximum Speicher

32 GB

Ethernet

Ethernet gesamt

2

10/100/1000 Mbit/s

2

Schnittstellen Seriell / Parallel

COM gesamt

2

USB gesamt

6

USB 2.0

2

USB v3.x

4

Laufwerksschächte

2.5" intern

1

Steckplätze

PCI Express x4

1

Mini-PCIe/Mini Card

2

Schnittstellen

Schnittstellen

2xDB9, DVI-D, HDMI, 2xRJ45 Ethernet, 6xUSB, Audio, DC Input

Stromversorgung

Eingangsspannung DC

9..30 V

Maße und Gewicht

Breite

215 mm

Höhe

272 mm

Tiefe

93 mm

Maße

Bruttogewicht

5.9 kg

Nettogewicht

4.5 kg

CPU

CPU Generation/Familie

Skylake, Kaby Lake

CPU-Support-Typ

Core i3, Core i5, Celeron, Core i7, Pentium

Chipsatz

Chipsatz

Intel H110

Speicher

Formfaktor

DDR4

Socket Typ

2xSODIMM

Maximum Speicher

32 GB

Ethernet

Ethernet gesamt

2

10/100/1000 Mbit/s

2

Schnittstellen Seriell / Parallel

COM gesamt

2

USB gesamt

6

USB 2.0

2

USB v3.x

4

Laufwerksschächte

2.5" intern

1

Steckplätze

PCI Express x4

1

Mini-PCIe/Mini Card

2

Schnittstellen

Schnittstellen

2xDB9, DVI-D, HDMI, 2xRJ45 Ethernet, 6xUSB, Audio, DC Input

Stromversorgung

Eingangsspannung DC

9..30 V

Maße und Gewicht

Breite

215 mm

Höhe

272 mm

Tiefe

93 mm

Maße

Bruttogewicht

5.9 kg

Nettogewicht

4.5 kg

CPU

CPU Generation/Familie

Skylake, Kaby Lake

CPU-Support-Typ

Core i3, Core i5, Celeron, Core i7, Pentium

Chipsatz

Chipsatz

Intel H110

Speicher

Formfaktor

DDR4

Socket Typ

2xSODIMM

Maximum Speicher

32 GB

Ethernet

Ethernet gesamt

2

10/100/1000 Mbit/s

2

Schnittstellen Seriell / Parallel

COM gesamt

2

USB gesamt

6

USB 2.0

2

USB v3.x

4

Laufwerksschächte

2.5" intern

1

Steckplätze

PCI Express x4

1

Mini-PCIe/Mini Card

2

Schnittstellen

Schnittstellen

2xDB9, DVI-D, HDMI, 2xRJ45 Ethernet, 6xUSB, Audio, DC Input

Stromversorgung

Eingangsspannung DC

9..30 V

Maße und Gewicht

Breite

215 mm

Höhe

272 mm

Tiefe

93 mm

Maße

Bruttogewicht

5.9 kg

Nettogewicht

4.5 kg

Dokumente

NISE-3800E-H110-Datasheet-03262025.pdf NISE-3800-Series-User-Manual-March-2025.pdf

Dokumente

NISE-3800E-H110-Datasheet-03262025.pdf NISE-3800-Series-User-Manual-March-2025.pdf

Dokumente

NISE-3800E-H110-Datasheet-03262025.pdf NISE-3800-Series-User-Manual-March-2025.pdf

Dokumente

NISE-3800E-H110-Datasheet-03262025.pdf NISE-3800-Series-User-Manual-March-2025.pdf
