+886 (2) 2930 1196
Lösungen für Automatisierungssysteme
+886 (2) 2930 1196
Home
Catalog
Industrie PCs
Embedded Edge PCs, Industrie Box PCs und Mini-PCs
Embedded PCs mit Erweiterungsslots
MEGA-3110

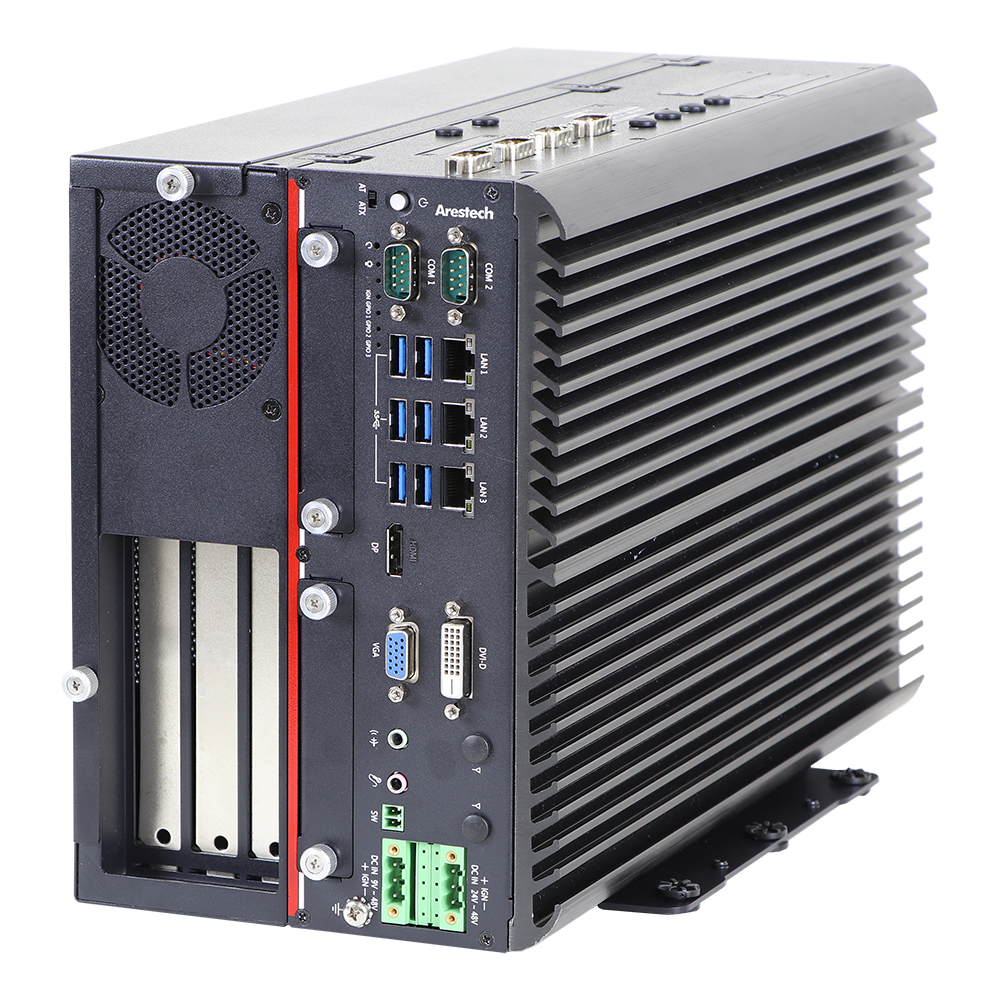

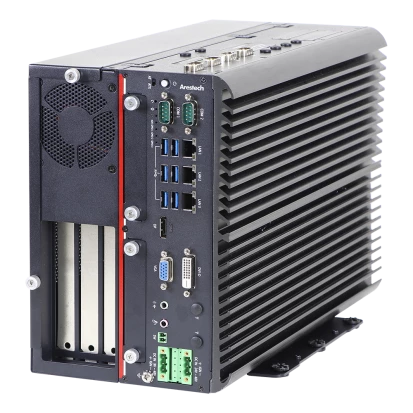

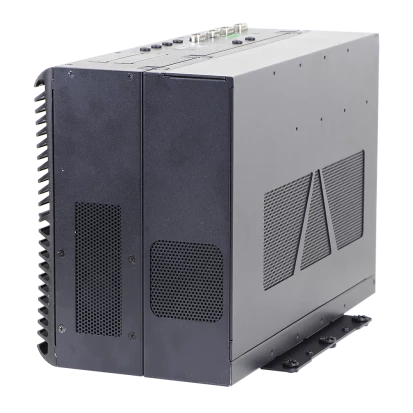

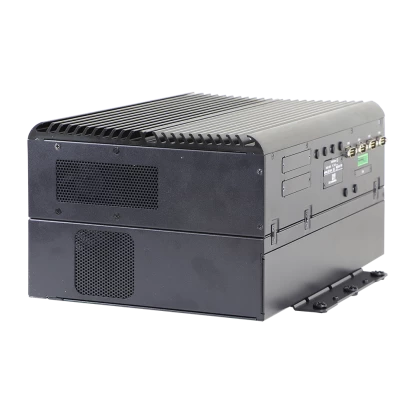

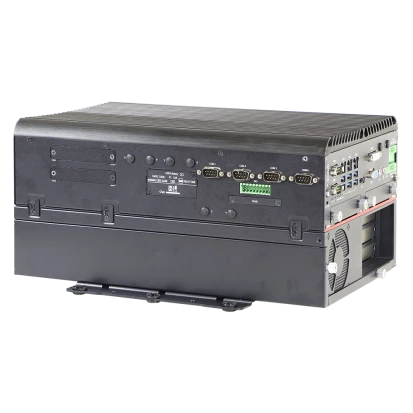

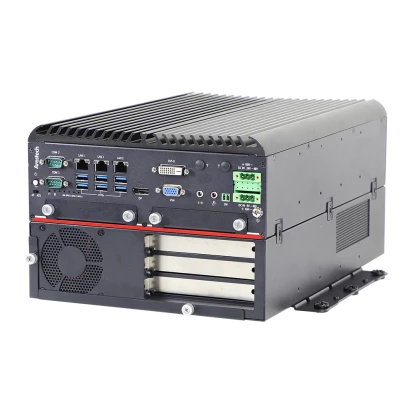

MEGA-3110

Arestech
ART. NR.:: 57571600
High-Performance GPU Computer, Intel 8th/9th Gen Core i3/i5/i7 CPU, VGA, DVI-D, DP, 3xGbE, 6xUSB 3.2, 6xRS232/422/485, 2x mSATA, 4x2.5" SATA Bay, 9..48VDC, -40..60C operating temp
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall
Typ
Lüfterlos
CPU
CPU Generation/Familie
Coffee Lake
Socket
LGA1151
Speicher
Maximum Speicher
32 GB
Grafik
Grafikcontroller
Intel UHD Graphics 630
Ethernet
Controller Typ
Intel i210-AT, Intel i219-LM
10/100/1000 Mbit/s
3
Schnittstellen Seriell / Parallel
COM gesamt
6
RS-232/422/485
6
USB gesamt
6
Digital Eingang / Ausgang
GPIO
8xDigital In / 8xDigital Out
Laufwerksschächte
Gesamtanzahl
4
2.5" extern
2
2.5" intern
2
Schnittstellen
Schnittstellen
6xDB9, DVI-D, DB15 VGA, 3xRJ45, 6xUSB, Mic In, Line Out, Display port
Stromversorgung
Stromverbrauch
1008 W
Maße und Gewicht
Breite
356 mm
Höhe
168 mm
Tiefe
241.5 mm
Betriebsbedingungen
Vibration
3 Grms, 5-500 Hz, 3 Axis
Schock
30 Grms, Half-sine 11 ms
Normen und Zertifikate
Zertifizierungen
CE, FCC
Maße
Bruttogewicht
9 kg
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall
Typ
Lüfterlos
CPU
CPU Generation/Familie
Coffee Lake
Socket
LGA1151
Speicher
Maximum Speicher
32 GB
Grafik
Grafikcontroller
Intel UHD Graphics 630
Ethernet
Controller Typ
Intel i210-AT, Intel i219-LM
10/100/1000 Mbit/s
3
Schnittstellen Seriell / Parallel
COM gesamt
6
RS-232/422/485
6
USB gesamt
6
Digital Eingang / Ausgang
GPIO
8xDigital In / 8xDigital Out
Laufwerksschächte
Gesamtanzahl
4
2.5" extern
2
2.5" intern
2
Schnittstellen
Schnittstellen
6xDB9, DVI-D, DB15 VGA, 3xRJ45, 6xUSB, Mic In, Line Out, Display port
Stromversorgung
Stromverbrauch
1008 W
Maße und Gewicht
Breite
356 mm
Höhe
168 mm
Tiefe
241.5 mm
Betriebsbedingungen
Vibration
3 Grms, 5-500 Hz, 3 Axis
Schock
30 Grms, Half-sine 11 ms
Normen und Zertifikate
Zertifizierungen
CE, FCC
Maße
Bruttogewicht
9 kg
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall
Typ
Lüfterlos
CPU
CPU Generation/Familie
Coffee Lake
Socket
LGA1151
Speicher
Maximum Speicher
32 GB
Grafik
Grafikcontroller
Intel UHD Graphics 630
Ethernet
Controller Typ
Intel i210-AT, Intel i219-LM
10/100/1000 Mbit/s
3
Schnittstellen Seriell / Parallel
COM gesamt
6
RS-232/422/485
6
USB gesamt
6
Digital Eingang / Ausgang
GPIO
8xDigital In / 8xDigital Out
Laufwerksschächte
Gesamtanzahl
4
2.5" extern
2
2.5" intern
2
Schnittstellen
Schnittstellen
6xDB9, DVI-D, DB15 VGA, 3xRJ45, 6xUSB, Mic In, Line Out, Display port
Stromversorgung
Stromverbrauch
1008 W
Maße und Gewicht
Breite
356 mm
Höhe
168 mm
Tiefe
241.5 mm
Betriebsbedingungen
Vibration
3 Grms, 5-500 Hz, 3 Axis
Schock
30 Grms, Half-sine 11 ms
Normen und Zertifikate
Zertifizierungen
CE, FCC
Maße
Bruttogewicht
9 kg
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall
Typ
Lüfterlos
CPU
CPU Generation/Familie
Coffee Lake
Socket
LGA1151
Speicher
Maximum Speicher
32 GB
Grafik
Grafikcontroller
Intel UHD Graphics 630
Ethernet
Controller Typ
Intel i210-AT, Intel i219-LM
10/100/1000 Mbit/s
3
Schnittstellen Seriell / Parallel
COM gesamt
6
RS-232/422/485
6
USB gesamt
6
Digital Eingang / Ausgang
GPIO
8xDigital In / 8xDigital Out
Laufwerksschächte
Gesamtanzahl
4
2.5" extern
2
2.5" intern
2
Schnittstellen
Schnittstellen
6xDB9, DVI-D, DB15 VGA, 3xRJ45, 6xUSB, Mic In, Line Out, Display port
Stromversorgung
Stromverbrauch
1008 W
Maße und Gewicht
Breite
356 mm
Höhe
168 mm
Tiefe
241.5 mm
Betriebsbedingungen
Vibration
3 Grms, 5-500 Hz, 3 Axis
Schock
30 Grms, Half-sine 11 ms
Normen und Zertifikate
Zertifizierungen
CE, FCC
Maße
Bruttogewicht
9 kg

Dokumente
datasheet-mega-3110-20210909.pdf User-manual-MEGA-3110-series-20211018.pdf
Dokumente
datasheet-mega-3110-20210909.pdf User-manual-MEGA-3110-series-20211018.pdf
Dokumente
datasheet-mega-3110-20210909.pdf User-manual-MEGA-3110-series-20211018.pdf
Dokumente
datasheet-mega-3110-20210909.pdf User-manual-MEGA-3110-series-20211018.pdf
