LNP-2602G-SFP

LNP-2602G-SFP

Antaira Technologies
ART. NR.:: 80213000

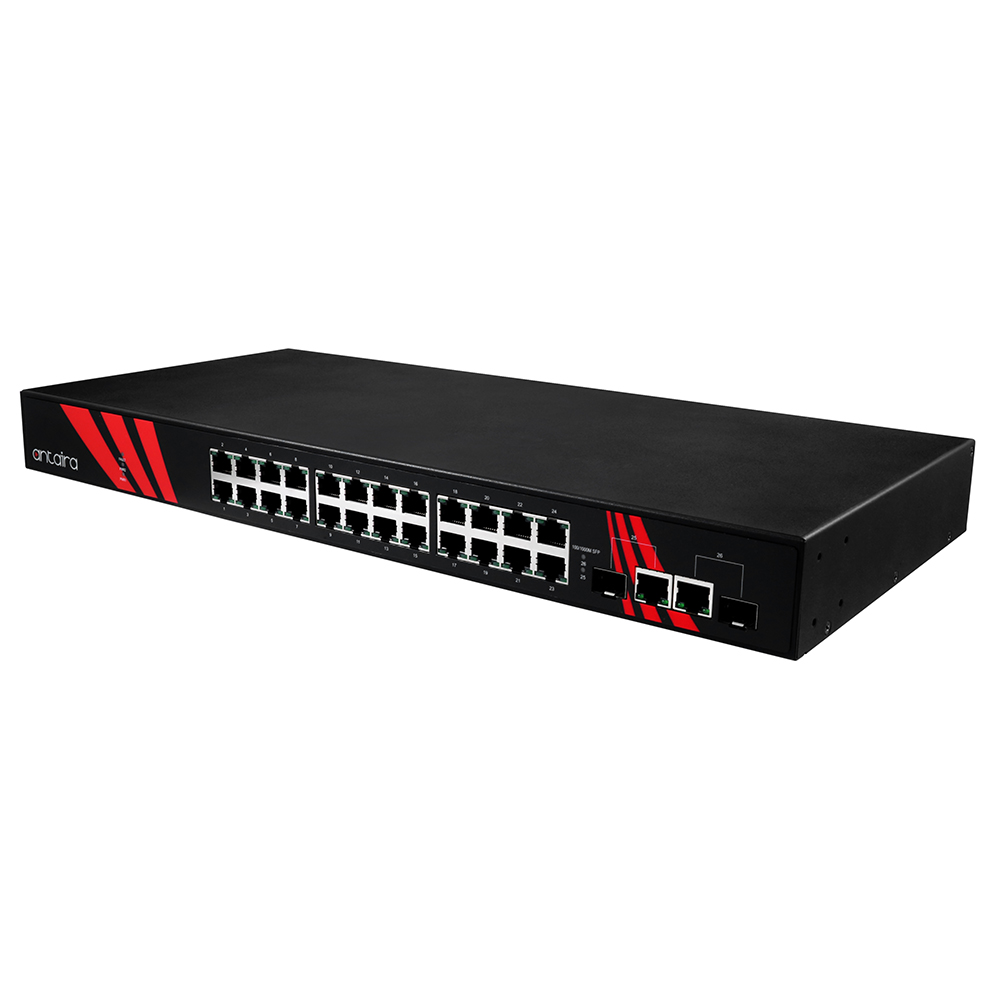

Industrial Unmanaged PoE+ Ethernet Switch, IP30, 24x10/100/1000Base-TX with PoE+, 2x100/1000 Combo Ports, Power Input 48..55 VDC, Operating Temperature -10...70 C
Preis auf Anfrage
Verfügbar
Verfügbar

Ethernet
Ethernet gesamt
26
10/100/1000 Mbit/s
26
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
24
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9.6 kB
Netzwerk
IEEE Norm
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
Stromversorgung
Eingangsspannung DC
48..55 V
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
19" Rackmount
Schutzlevel Gehäuse
IP40
Höhe
1 U
Maße und Gewicht
Breite
440 mm
Tiefe
44 mm
Höhe
200 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-10..70 °C
Luftfeuchtigkeit
5-95%
Normen und Zertifikate
Zertifizierungen
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Internetsicherheit
UL 61010-2-201
Sturz
IEC 60068-2-32
Vibration und Schock
IEC 60068-2-6, IEC 60068-2-27
Maße
Bruttogewicht
3.63 kg
Nettogewicht
2.72 kg
