Industrielle Kommunikation

Industrielle Ethernet Switches

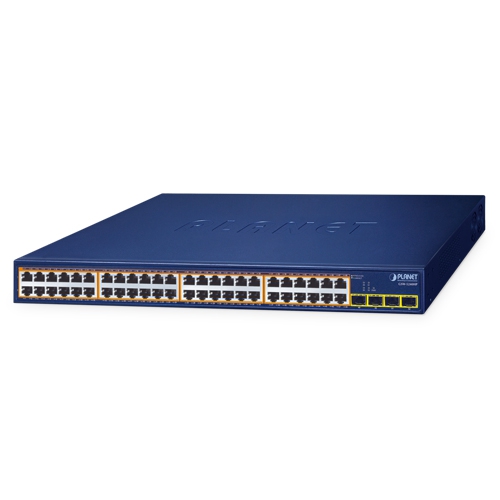

GSW-5240HP

GSW-5240HP

ART. NR.:: 80160200

Industrial Rackmount Unmanaged Switch, 48x10/100/1000Base-T PoE+ Ports, 4x1000Base-X SFP, 100..240V AC, 0..50C Operating Temperature

Preis auf Anfrage

Ethernet

Ethernet gesamt

48

10/100/1000 Mbit/s

48

SFP 100/1000 Mbit/s Ports

4

PoE+ 10/100/1000 Mbit/s

48

Switch Properties

MAC Table Size

16000

Jumbo Frame Size

12 kB

Netzwerk

IEEE Norm

IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)

Stromversorgung

Eingangsspannung AC

100..240 V

Maße und Gewicht

Breite

440 mm

Tiefe

330 mm

Höhe

44.5 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..50 °C

Luftfeuchtigkeit

5-95%

Normen und Zertifikate

Zertifizierungen

CE

EMI

FCC Part 15 Subpart B Class A

Maße

Bruttogewicht

5.9 kg

Nettogewicht

4.9 kg

Ethernet

Ethernet gesamt

48

10/100/1000 Mbit/s

48

SFP 100/1000 Mbit/s Ports

4

PoE+ 10/100/1000 Mbit/s

48

Switch Properties

MAC Table Size

16000

Jumbo Frame Size

12 kB

Netzwerk

IEEE Norm

IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)

Stromversorgung

Eingangsspannung AC

100..240 V

Maße und Gewicht

Breite

440 mm

Tiefe

330 mm

Höhe

44.5 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..50 °C

Luftfeuchtigkeit

5-95%

Normen und Zertifikate

Zertifizierungen

CE

EMI

FCC Part 15 Subpart B Class A

Maße

Bruttogewicht

5.9 kg

Nettogewicht

4.9 kg

Ethernet

Ethernet gesamt

48

10/100/1000 Mbit/s

48

SFP 100/1000 Mbit/s Ports

4

PoE+ 10/100/1000 Mbit/s

48

Switch Properties

MAC Table Size

16000

Jumbo Frame Size

12 kB

Netzwerk

IEEE Norm

IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)

Stromversorgung

Eingangsspannung AC

100..240 V

Maße und Gewicht

Breite

440 mm

Tiefe

330 mm

Höhe

44.5 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..50 °C

Luftfeuchtigkeit

5-95%

Normen und Zertifikate

Zertifizierungen

CE

EMI

FCC Part 15 Subpart B Class A

Maße

Bruttogewicht

5.9 kg

Nettogewicht

4.9 kg

Ethernet

Ethernet gesamt

48

10/100/1000 Mbit/s

48

SFP 100/1000 Mbit/s Ports

4

PoE+ 10/100/1000 Mbit/s

48

Switch Properties

MAC Table Size

16000

Jumbo Frame Size

12 kB

Netzwerk

IEEE Norm

IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)

Stromversorgung

Eingangsspannung AC

100..240 V

Maße und Gewicht

Breite

440 mm

Tiefe

330 mm

Höhe

44.5 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..50 °C

Luftfeuchtigkeit

5-95%

Normen und Zertifikate

Zertifizierungen

CE

EMI

FCC Part 15 Subpart B Class A

Maße

Bruttogewicht

5.9 kg

Nettogewicht

4.9 kg

Dokumente

GSW-5240HP-Datasheet.pdf GSW-5240HP-User-Manual.pdf

Dokumente

GSW-5240HP-Datasheet.pdf GSW-5240HP-User-Manual.pdf

Dokumente

GSW-5240HP-Datasheet.pdf GSW-5240HP-User-Manual.pdf

Dokumente

GSW-5240HP-Datasheet.pdf GSW-5240HP-User-Manual.pdf
