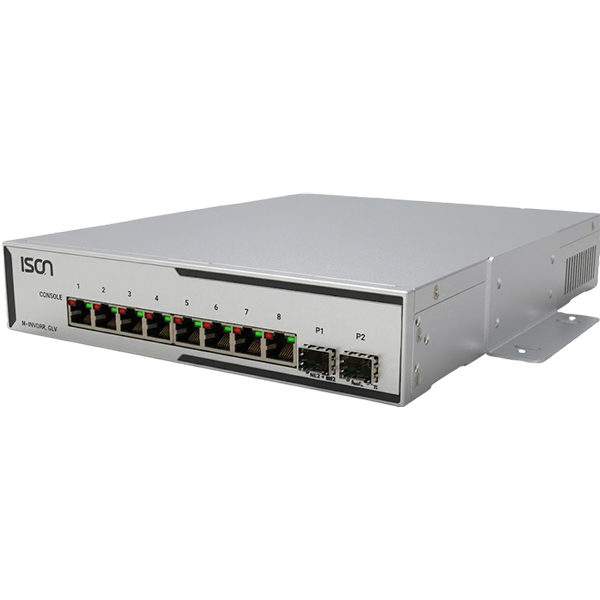

IS-RG310PL-2F-8-A

ART. NR.:: 80296500

Industrial Unmanaged Switch, IP30, 8x10/100/1000Base-TX with PoE, 2x100/1000Base-FX SFP, 100/240 VAC, Operating Temperature -40..75 C

Preis auf Anfrage

Ethernet

Ethernet gesamt

10/100/1000 Mbit/s

SFP 100/1000 Mbit/s Ports

PoE 10/100/1000 Mbit/s

Power Budget

240 W

Switch Properties

MAC Table Size

8000

Jumbo Frame Size

9 kB

Netzwerk

Steuerungsprotokolle

UDP, TCP

IEEE Norm

IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control

Aufbau

Einbaumöglichkeit

19" Rackmount

Schutzlevel Gehäuse

IP30

Maße und Gewicht

Breite

220 mm

Tiefe

44 mm

Höhe

270 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-40..75 °C

Luftfeuchtigkeit

5-95%

Normen und Zertifikate

Zertifizierungen

CE, FCC

EMI

EN 55022 Class A, FCC Part 15 Subpart B Class A

EMS

IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6

Sturz

IEC 60068-2-32

Vibration und Schock

IEC 60068-2-6, IEC 60068-2-27

Maße

Bruttogewicht

3 kg

Nettogewicht

2.5 kg
