Industrielle Kommunikation

Industrielle Ethernet Switches

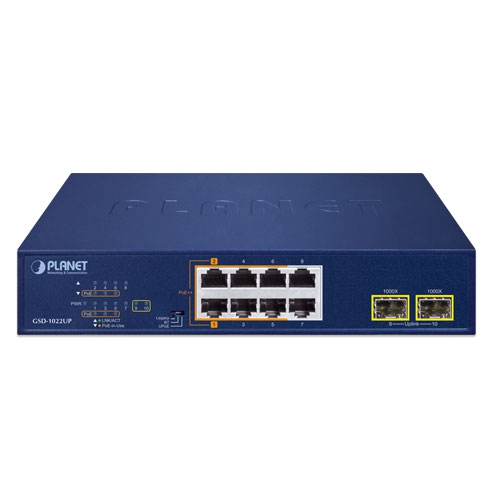

GSD-1022UP

GSD-1022UP

ART. NR.:: 57883200

Unmanaged Gigabit PoE Desktop switch 2-Port 10/100/1000BASE-T with 802.3bt PoE, 4-Port 10/100/1000BASE-T 802.3at PoE, 2-Port 10/100/1000BASE-T, 2-Port 1000BASE-X SFP, 100..240 VAC, Operating Temperature 0..50 C

Preis auf Anfrage

Ethernet

10/100/1000 Mbit/s

8

SFP 100/1000 Mbit/s Ports

2

PoE 10/100/1000 Mbit/s

6

Switch Properties

MAC Table Size

4000

Jumbo Frame Size

9 kB

Netzwerk

IEEE Norm

IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X), IEEE 802.3bt for Power over Ethernet

Stromversorgung

Eingangsspannung AC

100..240 V

Maße und Gewicht

Breite

220 mm

Tiefe

150 mm

Höhe

444 mm

Betriebsbedingungen

Maximale Betriebstemperatur

0..50 °C

Luftfeuchtigkeit

5-95%

Normen und Zertifikate

Zertifizierungen

CE, FCC Class A

Maße

Bruttogewicht

1.8 kg

Nettogewicht

1.3 kg

Ethernet

10/100/1000 Mbit/s

8

SFP 100/1000 Mbit/s Ports

2

PoE 10/100/1000 Mbit/s

6

Switch Properties

MAC Table Size

4000

Jumbo Frame Size

9 kB

Netzwerk

IEEE Norm
