JBC376C55W-2930G4

JBC376C55W-2930G4

JetWay
ART. NR.:: 56876300

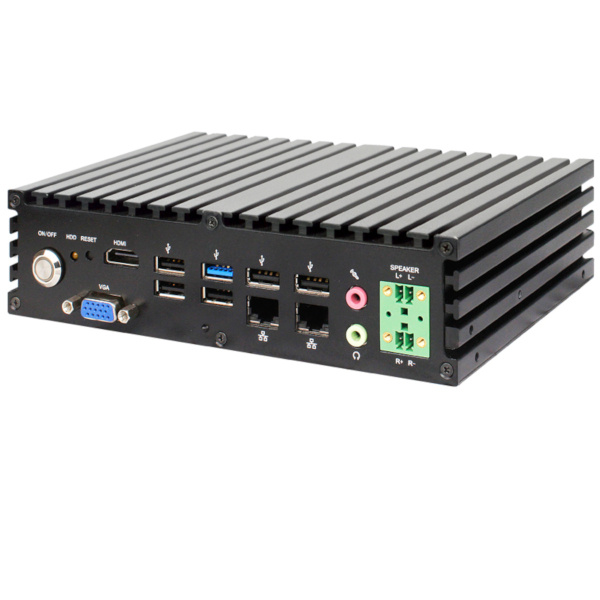

Embedded Box PC, Intel BayTrail-M N2930 CPU, 4GB DDR3L, HDMI, VGA, 2xLAN, Wi-Fi, 6xCOM, 6xUSB, Audio, 1x2.5" SATA Bays, mSATA, Mini-PCIe, 9-24V DC In
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall, Desktop
CPU
CPU Generation/Familie
Bay Trail
Installierter Prozessor
Intel Celeron N2930
Speicher
Standard Onboard Speicher
4 GB
Ethernet
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
6
RS-232/422/485
2
USB 2.0
5
Digital Eingang / Ausgang
GPIO
Yes
Steckplätze
Mini-PCIe/Mini Card
1
Schnittstellen
Schnittstellen

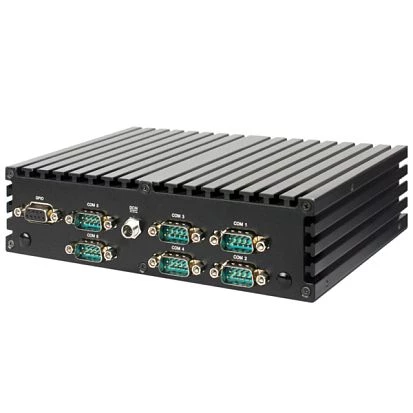

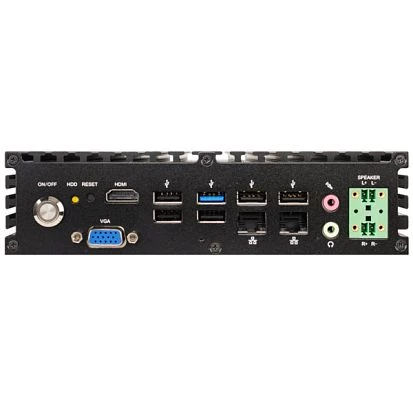

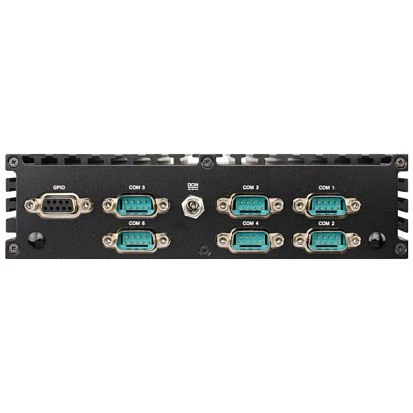

6xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 6xUSB, DC Input
Maße und Gewicht
Breite
295 mm
Höhe
250 mm
Tiefe
118 mm
Normen und Zertifikate
Zertifizierungen
CE, FCC
Maße
Bruttogewicht
3 kg
Nettogewicht
1.4 kg
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall, Desktop
CPU
CPU Generation/Familie
Bay Trail
Installierter Prozessor
Intel Celeron N2930
Speicher
Standard Onboard Speicher
4 GB
Ethernet
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
6
RS-232/422/485
2
USB 2.0
5
Digital Eingang / Ausgang
GPIO
Yes
Steckplätze
Mini-PCIe/Mini Card
1
Schnittstellen
Schnittstellen
6xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 6xUSB, DC Input
Maße und Gewicht
Breite
295 mm
Höhe
250 mm
Tiefe
118 mm
Normen und Zertifikate
Zertifizierungen
CE, FCC
Maße
Bruttogewicht
3 kg
Nettogewicht
1.4 kg
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall, Desktop
CPU
CPU Generation/Familie
Bay Trail
Installierter Prozessor
Intel Celeron N2930
Speicher
Standard Onboard Speicher
4 GB
Ethernet
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
6
RS-232/422/485
2
USB 2.0
5
Digital Eingang / Ausgang
GPIO
Yes
Steckplätze
Mini-PCIe/Mini Card
1
Schnittstellen
Schnittstellen
6xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 6xUSB, DC Input
Maße und Gewicht
Breite
295 mm
Höhe
250 mm
Tiefe
118 mm
Normen und Zertifikate
Zertifizierungen
CE, FCC
Maße
Bruttogewicht
3 kg
Nettogewicht
1.4 kg
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall, Desktop
CPU
CPU Generation/Familie
Bay Trail
Installierter Prozessor
Intel Celeron N2930
Speicher
Standard Onboard Speicher
4 GB
Ethernet
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
6
RS-232/422/485
2
USB 2.0
5
Digital Eingang / Ausgang
GPIO
Yes
Steckplätze
Mini-PCIe/Mini Card
1
Schnittstellen
Schnittstellen
6xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 6xUSB, DC Input
Maße und Gewicht
Breite
295 mm
Höhe
250 mm
Tiefe
118 mm
Normen und Zertifikate
Zertifizierungen
CE, FCC
Maße
Bruttogewicht
3 kg
Nettogewicht
1.4 kg

Dokumente
JBC376C55-2930G4-Datasheet.pdf
Dokumente
JBC376C55-2930G4-Datasheet.pdf
Dokumente
JBC376C55-2930G4-Datasheet.pdf
Dokumente
JBC376C55-2930G4-Datasheet.pdf
