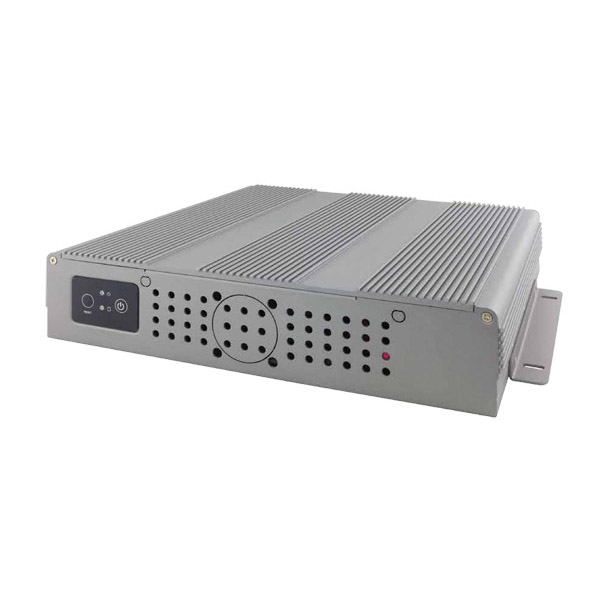

IK70SB7-111

IK70SB7-111

Winmate
ART. NR.:: 56538700
Embedded System with Intel 6th Generation Core i3/i5/i7, Up to 32GB DDR4 2133, 2x 100Mbps, 2xCOM, 6xUSB, DP (4K resolution), HDMI, 2x M.2 slots, Audio, 12VDC
Preis auf Anfrage
Verfügbar
Verfügbar

Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall, Desktop
CPU
CPU-Support-Typ
Core i3, Core i5, Core i7
Speicher
Formfaktor
DDR4
Maximum Speicher
32 GB
Ethernet
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232/422/485
1
USB gesamt
6
USB 2.0
2
USB v3.x
4
Steckplätze
M.2
2
Schnittstellen
Schnittstellen
HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line In, Line Out, Display port, 2xPS/2 Keyboard/Mouse
Stromversorgung
Eingangsspannung DC
12 V
Software
Betriebssystemkompatibilität
Windows Embedded Standard 7, Windows 7 Professional, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry
Betriebsbedingungen
Maximale Betriebstemperatur
0..50 °C
Maße
Bruttogewicht
4 kg
Nettogewicht
3.2 kg
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall, Desktop
CPU
CPU-Support-Typ
Core i3, Core i5, Core i7
Speicher
Formfaktor
DDR4
Maximum Speicher
32 GB
Ethernet
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232/422/485
1
USB gesamt
6
USB 2.0
2
USB v3.x
4
Steckplätze
M.2
2
Schnittstellen
Schnittstellen
HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line In, Line Out, Display port, 2xPS/2 Keyboard/Mouse
Stromversorgung
Eingangsspannung DC
12 V
Software
Betriebssystemkompatibilität
Windows Embedded Standard 7, Windows 7 Professional, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry
Betriebsbedingungen
Maximale Betriebstemperatur
0..50 °C
Maße
Bruttogewicht
4 kg
Nettogewicht
3.2 kg
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall, Desktop
CPU
CPU-Support-Typ
Core i3, Core i5, Core i7
Speicher
Formfaktor
DDR4
Maximum Speicher
32 GB
Ethernet
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232/422/485
1
USB gesamt
6
USB 2.0
2
USB v3.x
4
Steckplätze
M.2
2
Schnittstellen
Schnittstellen
HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line In, Line Out, Display port, 2xPS/2 Keyboard/Mouse
Stromversorgung
Eingangsspannung DC
12 V
Software
Betriebssystemkompatibilität
Windows Embedded Standard 7, Windows 7 Professional, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry
Betriebsbedingungen
Maximale Betriebstemperatur
0..50 °C
Maße
Bruttogewicht
4 kg
Nettogewicht
3.2 kg
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall, Desktop
CPU
CPU-Support-Typ
Core i3, Core i5, Core i7
Speicher
Formfaktor
DDR4
Maximum Speicher
32 GB
Ethernet
10/100/1000 Mbit/s
2
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232/422/485
1
USB gesamt
6
USB 2.0
2
USB v3.x
4
Steckplätze
M.2
2
Schnittstellen
Schnittstellen
HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line In, Line Out, Display port, 2xPS/2 Keyboard/Mouse
Stromversorgung
Eingangsspannung DC
12 V
Software
Betriebssystemkompatibilität
Windows Embedded Standard 7, Windows 7 Professional, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry
Betriebsbedingungen
Maximale Betriebstemperatur
0..50 °C
Maße
Bruttogewicht
4 kg
Nettogewicht
3.2 kg

Dokumente
Datasheet_IK70SB7_111__32538739.pdf
Dokumente
Datasheet_IK70SB7_111__32538739.pdf
Dokumente
Datasheet_IK70SB7_111__32538739.pdf
Dokumente
Datasheet_IK70SB7_111__32538739.pdf
