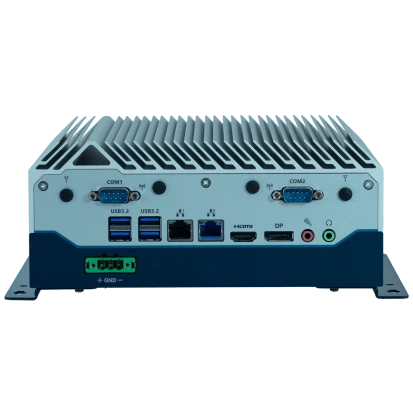

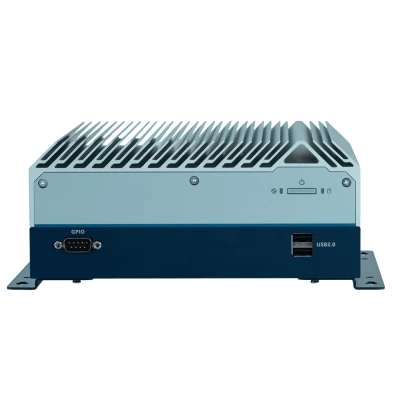

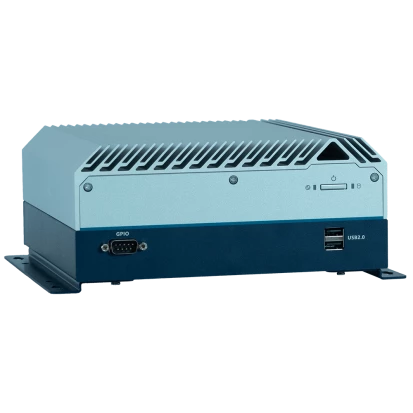

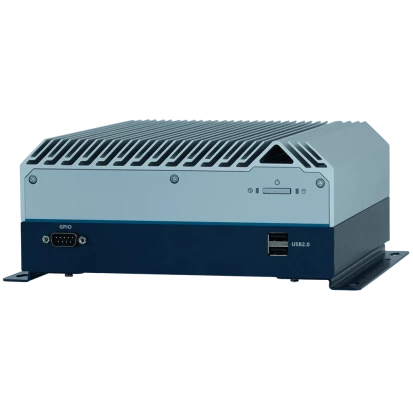

IBS-600-H

ART. NR.:: 80016600
Fanless Embedded PC, Support Intel 14/13/12th Gen. Core i3/i5/i7/i9 CPU, Up to 64GB DDR5 RAM, DP/HDMI, 2xLAN, 4xUSB 3.2, 2xUSB 2.0, 2xCOM, GPIO, 1x2.5" Bay, 1xM.2 2280 Key-M, 1xM.2 3042 Key-B, 1xM.2 2230 Key-E, Audio, 9-36VDC-in (12VDC-in Opt.)
Preis auf Anfrage
Verfügbar
Verfügbar
Aufbau
Gehäuse
Metallgehäuse
Einbaumöglichkeit
Wall
Typ
Lüfterlos
CPU
CPU Generation/Familie
Alder Lake, Raptor Lake
CPU-Support-Typ
Core i3, Core i5, Core i7, Core i9
Chipsatz
Chipsatz
Intel H610
Speicher
Formfaktor
DDR5
Socket Typ
2xSODIMM
ECC
No
Maximum Speicher
64 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Schnitstellen
DisplayPort, HDMI
Ethernet
Controller Typ
Intel i219-LM, Intel i225V
Ethernet gesamt
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Schnittstellen Seriell / Parallel
COM gesamt
2
RS-232
1
RS-232/422/485
1
USB gesamt
6
USB 2.0
2
USB v3.x
4
Schnittstelle
SATA 3
1
M.2
1
Laufwerksschächte
Gesamtanzahl
1
2.5" intern
1
Steckplätze
Gesamtanzahl
3
M.2
3
M.2 Formfaktor
2280 M, 2230 E, 3042 B
Zusätzliche Funktionen
Watchdog-Timer-Typ
Software
Status LEDs / Schalter
LED
1xHDD LED, Power LED
Schalter
On/Off
Schnittstellen
Schnittstellen
2xDB9, HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display port, DC input (terminal block), DB9 GPIO
Systemleistung
Eingangsspannung DC
9..36 V
Netzteil
Unterstützte Stromversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Maße und Gewicht
Breite
209 mm
Höhe
87 mm
Tiefe
209 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-20..50 °C
Luftfeuchtigkeit
10-95%
Normen und Zertifikate
Zertifizierungen
CE, FCC Class B
Maße
Bruttogewicht
5 kg
Nettogewicht
3.3 kg
