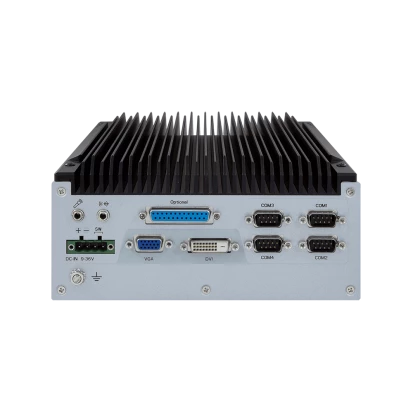

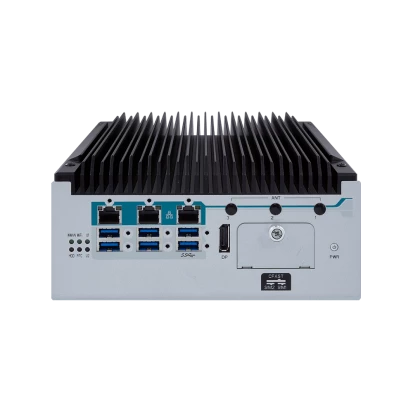

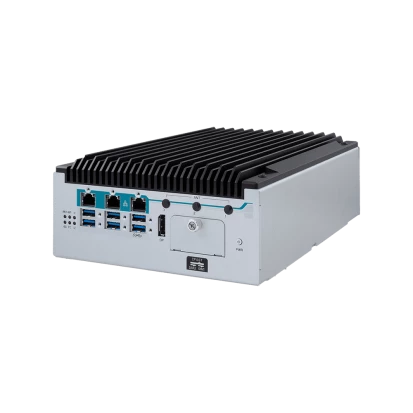

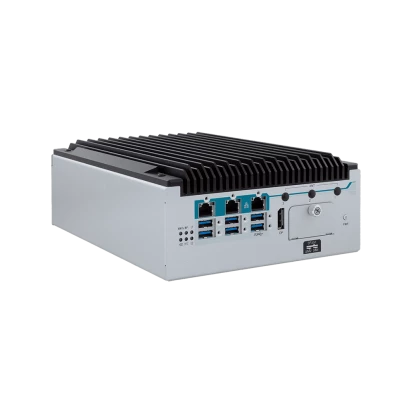

FPC-8210
Arbor
ART. NR.:: 80011700
Fanless Embedded PC, Intel 13th Gen Core i3/i5/i7/i9 CPU, H610E, Up to 64GB DDR4 RAM, DP/DVI-D/VGA, 3x2.5GbE LAN, 6xUSB 3.2, 4xCOM, 16-bit DIO, CFast, 1xMiniCard, 1xM.2 2230, 1xM.2 3052, SIM, 2x2.5" Bay, 9-36VDC-In
Preis auf Anfrage
Verfügbar auf Bestellung
Verfügbar auf Bestellung
Aufbau
Gehäuse
Aluminiumgehäuse
Einbaumöglichkeit
Wall
Typ
Lüfterlos
CPU
CPU Generation/Familie
Raptor Lake
Socket
LGA1700
CPU-Support-Typ
Core i3, Core i5, Core i7, Core i9
Chipsatz
Chipsatz
Intel H610E
Speicher
Formfaktor
DDR4
Socket Typ
2xSODIMM
ECC
No
Maximum Speicher
64 GB
Bauweise
herausnehmbar
Grafik
Grafikcontroller
integriert im Prozessor
Schnitstellen
DisplayPort, DVI-D, VGA
Ethernet
Controller Typ
Intel i226V
Ethernet gesamt
3
2,5 Gbit/s
3
Schnittstellen Seriell / Parallel
COM gesamt
4
RS-232
4
USB gesamt
6
USB v3.x
6
Digital Eingang / Ausgang
Gesamtanzahl
16
Schnittstelle
SATA 3
2
CFast Speicherkarten-Slots
1
Laufwerksschächte
Gesamtanzahl
2
2.5" intern
2
Steckplätze
Gesamtanzahl
3
M.2
2
M.2 Formfaktor
2230 E, 3052 B, 2242 B
Mini-PCIe/Mini Card
1
SIM-Karten Steckplätze
Yes, 2
Zusätzliche Funktionen
Watchdog-Timer-Typ
Software
Status LEDs / Schalter
LED
1xHDD LED, WWAN LED
Schalter
On/Off
Schnittstellen
Schnittstellen
4xDB9, DVI-D, DB15 VGA, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display port, DC input (terminal block), 1xDB25 DIO, 2xSIM Card Slot, CFast slot
Systemleistung
Eingangsspannung DC
9..36 V
Netzteil
Unterstützte Stromversorgung
External power adapter AC/DC
Software
Betriebssystemkompatibilität
Ubuntu, Windows IoT Enterprise 10, Windows IoT Enterprise 11
Maße und Gewicht
Breite
195 mm
Höhe
90 mm
Tiefe
268 mm
Betriebsbedingungen
Maximale Betriebstemperatur
-20..70 °C
Luftfeuchtigkeit
10-95%
Normen und Zertifikate
Zertifizierungen
CE, FCC Class A
Maße
Bruttogewicht
4.8 kg
Nettogewicht
4.2 kg
