Industrie Panel PCs

Panel-PC Transport

FM10Q

FM10Q

ART. NR.:: 56786500

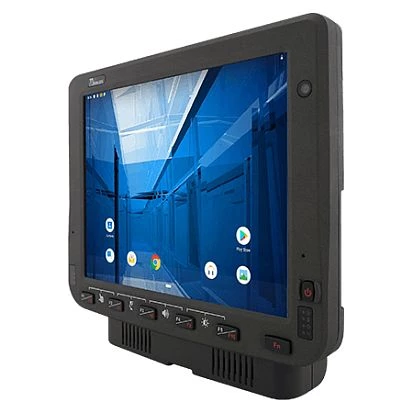

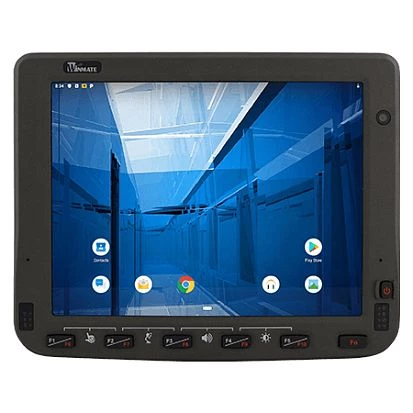

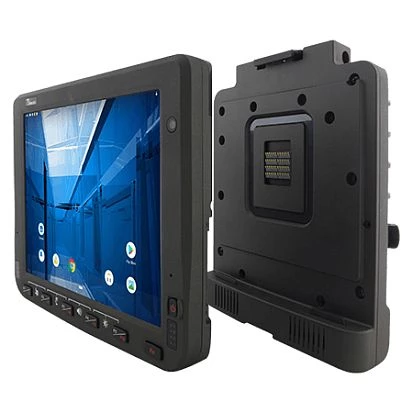

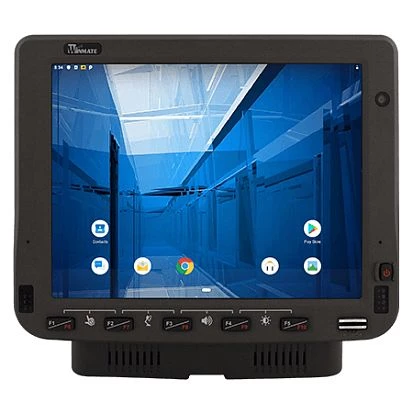

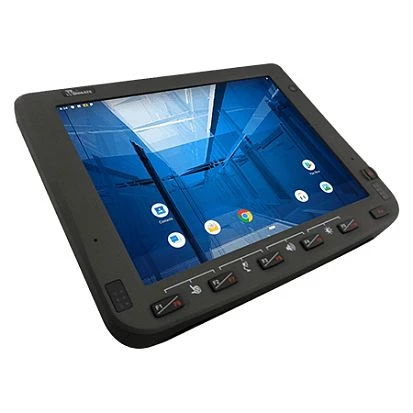

Vehicle Fanless Computer, IP65, 10.4" TFT LCD, PCAP, 400nits, Qualcomm Snapdragon 660 CPU, 3GB LPDR3L, 32G eMMC, 2xCOM, 3xUSB, 1xSIM, 1xPoE LAN, 1x micro SD, 1xCANbus, WiF, Bluetooth, GPS, Cam 2MP, 10-60V, Android 9

Preis auf Anfrage

Aufbau

Gehäuse

Magnesiumlegierung

Einbaumöglichkeit

Wall VESA 100, Wall VESA 75

Schutzlevel Frontseite (Panel)

IP65

Typ

Lüfterlos

Display

Bildschirmtyp

LCD TFT

Diagonale

10.4 "

Maximale Auflösung

1024x768 Dots

Seitenverhältnis

4:3

Helligkeit

400 Cd/m2

Kontrastverhältnis

1200~1

Touch Screen

Touch Screen Art

kapazitiv

CPU

Installierter Prozessor

Qualcomm Snapdragon 660

Maximale CPU-Frequenz

2.2 GHz

Speicher

Formfaktor

DDR3

Standard Onboard Speicher

3 GB

Maximum Speicher

8 GB

Grafik

Grafikcontroller

integriert im Prozessor

Wi-Fi

WLAN IEEE-Norm

802.11a/b/g/n/ac

Schnittstellen Seriell / Parallel

COM gesamt

2

RS-232

2

USB gesamt

3

USB 2.0

2

USB v3.x

1

Industrie Protokolle

CAN Port

1

Schnittstelle

SD Speicherkarten-Slots

1

Steckplätze

SIM-Karten Steckplätze

1

Antennen Eigenschaften

Mobilfunk

3G, 4G

Zusätzliche Funktionen

GPS

GPS

Status LEDs / Schalter

LED

1xOn/Off LED

Schalter

On/Off, Kontrolltasten

Schnittstellen

Schnittstellen

2xDB9, RJ45 Ethernet, DC Input, SIM Card Slot, SD card slot

Stromversorgung

Eingangsspannung DC

10..60 V

Netzteil

Art der Spannungsversorgung

External power adapter AC/DC

Software

Betriebssystem installiert

Android

Maße und Gewicht

Breite

268 mm

Höhe

214 mm

Tiefe

35 mm

Betriebsbedingungen

Maximale Betriebstemperatur

-30..50 °C

Normen und Zertifikate

Zertifizierungen

CE, FCC

EMS

EN 61000-4-2

MIL-STD-810

MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock

Internetsicherheit

UL 60950-1, EN 60950-1

Maße

Bruttogewicht

2.5 kg

Nettogewicht

1.7 kg

Dokumente

Datasheet_FM10Q__39498931.pdf
