Industrie Panel PCs

Panel-PC Transport

FM10AD-V

FM10AD-V

ART. NR.:: 57629900

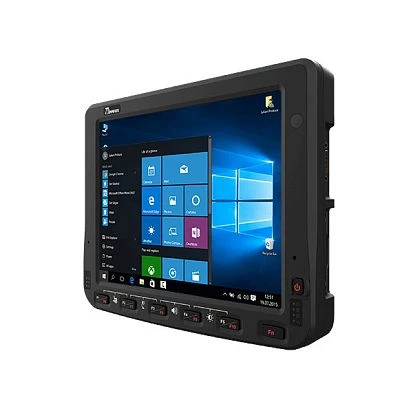

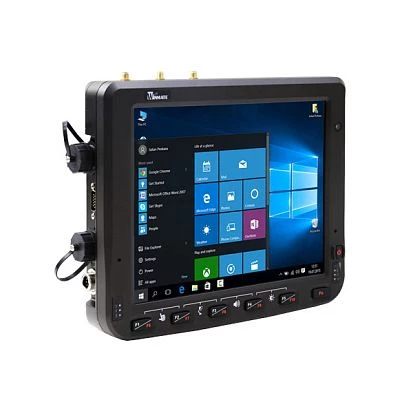

10.4" Vehicle Fanless Panel PC, IP65, 1024x768, P-CAP Touch, Intel Core i5-1235U CPU, 8GB DDR5 RAM, 128GB NVMe SSD, WiFi/BT, 2MP Cam., 1xGbE LAN, 1xUSB 3.0 Type-C, 1xUSB 2.0, 2xCOM, 1xSIM, 1xMicroSD, Audio, Win 10 IoT, 10-60VDC-in w/ PSU, -30..50C

Preis auf Anfrage

Aufbau

Gehäuse

Magnesiumlegierung

Einbaumöglichkeit

Wall VESA 100, Wall VESA 75

Schutzlevel Frontseite (Panel)

IP65

Typ

Lüfterlos

Display

Bildschirmtyp

LCD TFT

Diagonale

10.4 "

Seitenverhältnis

4:3

Helligkeit

400 Cd/m2

Kontrastverhältnis

1200~1

Touch Screen

Touch Screen Art

kapazitiv

CPU

CPU Generation/Familie

Alder Lake

Installierter Prozessor

Intel Core i5-1235U

Chipsatz

Chipsatz

Intel SoC

Speicher

ECC

No

Standard Onboard Speicher

8 GB

Maximum Speicher

32 GB

Bauweise

herausnehmbar

Grafik

Grafikcontroller

integriert im Prozessor, Intel Iris Xe Graphics

Ethernet

Ethernet gesamt

1

10/100/1000 Mbit/s

1

Wi-Fi

WLAN IEEE-Norm

Yes

Schnittstellen Seriell / Parallel

COM gesamt

2

RS-232/422/485

2

USB gesamt

2

USB 2.0

1

Digital Eingang / Ausgang

Gesamtanzahl

4

Industrie Protokolle

CAN Port

1

Steckplätze

Gesamtanzahl

1

M.2

1

Status LEDs / Schalter

LED

LED Panel

Schalter

On/Off, Funktionstasten

Schnittstellen

Schnittstellen

2xDB9, RJ45 Ethernet, 1xUSB, DC Input, SIM Card Slot, SD card slot, USB type C

Netzteil

Art der Spannungsversorgung

External power adapter AC/DC

Ausgangsleistung

84 W

Software

Betriebssystem installiert

Windows IoT Enterprise 10

Maße und Gewicht

Breite

268 mm

Höhe

214 mm

Tiefe

51 mm

Normen und Zertifikate

Zertifizierungen

CE/FCC

EMS

EN 61000-4-2

MIL-STD-810

MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration

Internetsicherheit

UL 60950-1, EN 60950-1

Vandalismusresistenz

EN 62262, IK07 level

Maße

Bruttogewicht

3.4 kg

Nettogewicht

2.4 kg

Produktanfrage

ART. NR.:: 57629900

FM10AD-V

FM10AD-V
